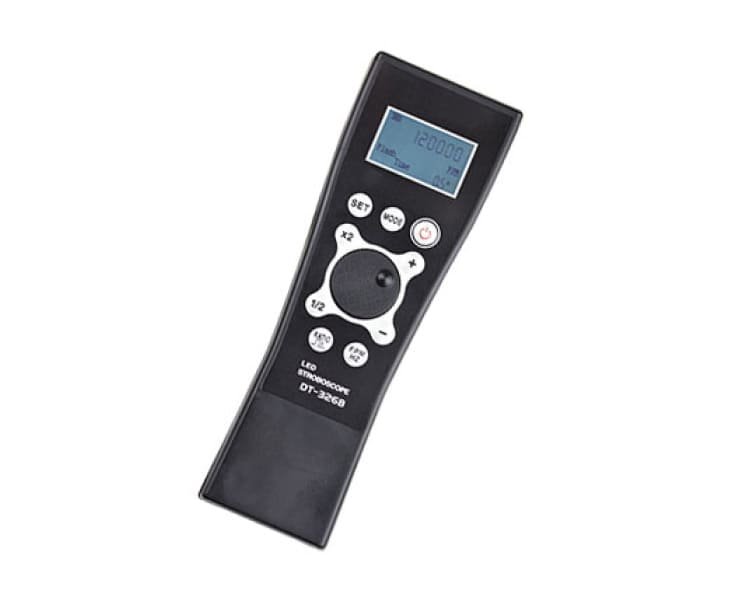

Stroboscopes DT-326B Shimpo
The Shimpo DT-326B Stroboscope offers a wide flash range (60 – 120,000 Flashes/min), adjustable pulse duration, and phase shift for detailed inspection. It operates on AC power or rechargeable battery for portability, with trigger input interface for process control.
22 people are viewing this product right now
🔥 4 items sold in last 3 hours
Stroboscopes DT-326B Shimpo
The DT-326B’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation. The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications.
Features
Specifications
| Model | DT-326B |
| Flash Rate Range | 60 to 120,000 FPM ; 1-2000 Hz |
| Accuracy | 0.01%±1 digit of F.S. @ 77° F (25°C) |
| Lux Rating (Approx.) | 6000 FPM & 2.5°: Distance 8˝ (20 cm) 5800 lx with 4˝ (100 mm) irradiation dia., Distance 20˝ (50 cm) 1050 lx with 6˝ (152 mm) irradiation dia. 1500 FPM & 2.5°: Distance 8˝ (20 cm) 6400 lx with 4˝ (100 mm) irradiation dia., Distance 20˝ (50 cm) 1125 lx with 6˝ (152 mm) irradiation dia |
| Lamp Lifetime | Approximately 3~5 years depending on usage |
| Display | Backlit LCD |
| Resolution | 60 ~12,000 FPM = 0.1 FPM 12,001~120,000 FPM = 1 FPM 1~200 HZ = 0.01 Hz 201~2000 = 0.1 Hz |
| Flash Duration | 0.1°- 2.5° |
| Phase Shift | 0-359° |
| Power Requirement | 100-240 VAC 50/60Hz |
| Battery | Lithium DC 10.8V 2000mA |
| Battery Life | Approx. 12 hours depending on settings |
| Input Signal | 12 V Pulse Input |
| Input Signal Range | 60-12,000 FPM (1-2000Hz) |
| Input pulse width | 32-95°F (0-35°C) |
| Humidity Limits | 35 to 85% RH |
| Enclosure | ABS |
| Product Weight | 0.84 lb (380 g) |
| Package Weight | 3.50 lb (1.6 kg) |
| Dimensions | 8.2 x 2.8 x 2.4” (208 x 70 x 60mm) |
| Approvals | CE |

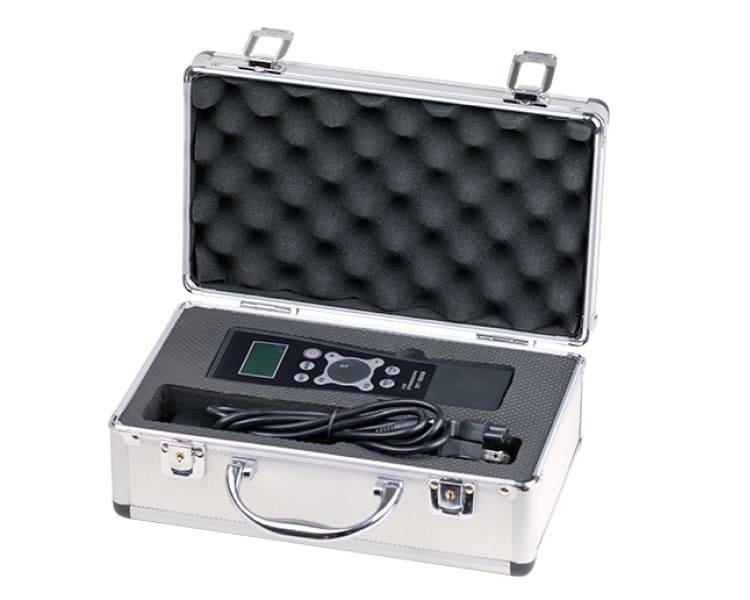

| Included Accessories | AC power adapter, Carrying Case |
