Stroboscopes DT-361 Shimpo

The Shimpo DT-361 Stroboscope offers outstanding accuracy and stability with user-friendly controls and a detachable pistol-grip handle. It accepts external trigger input, provides synchronizing pulse output, and features phase shift for optimal viewing and flash photography.

25 people are viewing this product right now

🔥 8 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Stroboscopes DT-361 Shimpo

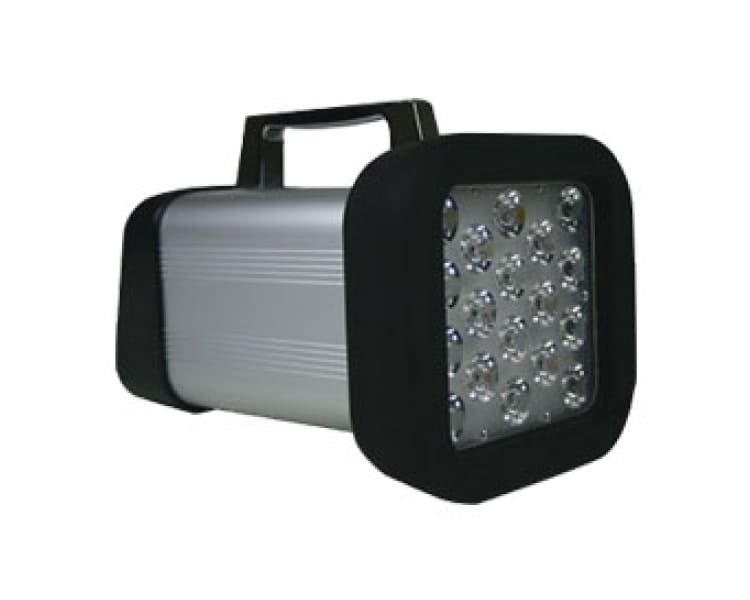

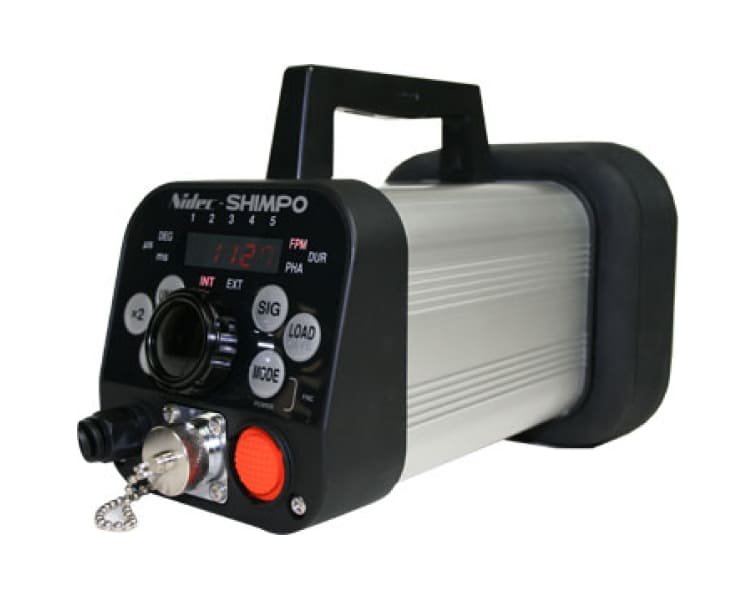

The DT-361 High-Intensity LED Stroboscope is ideal for machinery process inspection, capable of flashing its LED lights synchronously with operating machinery to create the illusion of slowed or frozen images. This aids in defect detection and preventative maintenance. Its LED technology ensures extended operation and brighter light output compared to xenon stroboscopes. The DT-361 features a red LED display, easy-to-use controls, adjustable flash rate and duration, and phase shift function.

Features

Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle.

Bright LED display and simple controls aid in user operation.

Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction.

LED technology greatly extends operation life and eliminates need to replace burned out bulbs.

Flash controller dial permits accurate adjustments to the flash rate.

Capable of being synchronized with input signal from sensor or controller.

Specifications

Range FPM (RPM)	60-120,000; From Input Signal 40-35,000
Accuracy	±0.02% of reading
Lux Rating	6000 FPM & 3.6° (100 µs): Distance 8″ (20 cm) 18,400 lx with 10″ (250 mm) irradiation dia., Distance 20″ (50 cm) 6200 lx with 13.5″ (350 mm) irradiation dia. 1500 FPM & 3.6° (400 µs): Distance 8″ (20 cm) 15,000 lx with 10″ (250 mm) irradiation dia., Distance 20″ (50 cm) 6000 lx with 13.5″ (350 mm) irradiation dia.
Lamp Lifetime	Typ. 50,000 hours. Varies depending on usage
Display	6 digit Red LED
Resolution	Internal Mode 1 FPM. External Mode 0.1 FPM
Flash Duration	0.1 to 3.6° (0.14 µsec to 400 µsec)
Phase Shift	0 to 999 msec; 0 to 359°
Power Requirement	100 to 230 VAC
Synchronization Input Signal	H level: 2.5 – 12V; L level: 0 – 0.4V
Input Signal Range FPM (RPM)	40 – 35,000
Input Signal Flash Delay FPM (RPM)	60-10,000
Power Supply Output	DC12V 40mA for sensor input
Temperature Limits	32 to 104 °F (0 to 40 °C)
Humidity Limits	35 to 85% RH
Protection Class	NEMA 4X (IP65)
Product Weight	4 lbs (1.8 kg)
Approvals	RoHs
Warranty	1 Year
Included Accessories	Input Signal Connector, flash-light style attachable handle
