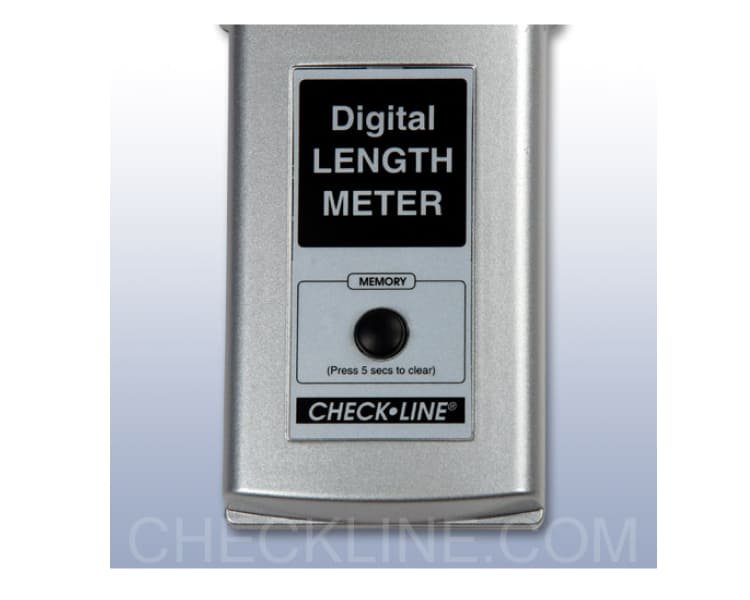

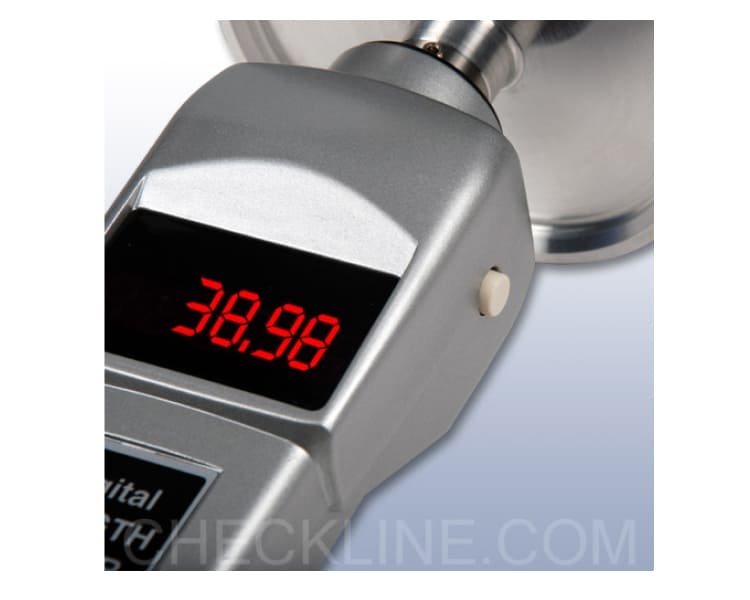

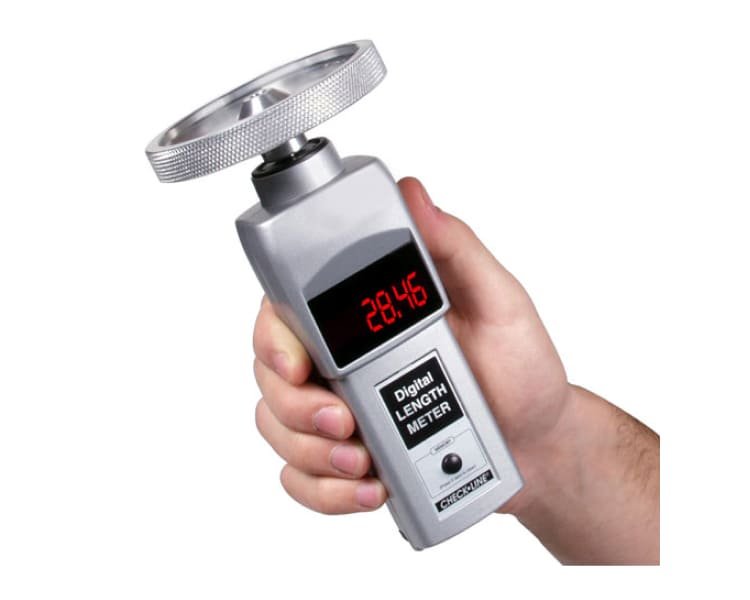

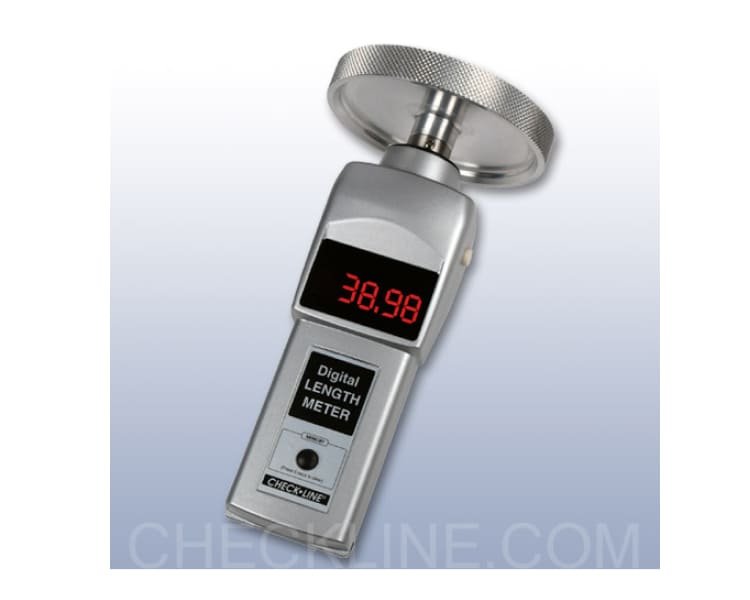

Tachometers DLM-107A Shimpo
The Shimpo DLM-107A Tachometer features built-in memory for last, maximum, minimum, and 10 separate readings. It has a rugged cast aluminum housing, and an optional NIST-traceable calibration certification.
39 people are viewing this product right now
🔥 9 items sold in last 3 hours
Tachometers DLM-107A Shimpo
The DLM-107A is a compact and versatile digital contact tachometer by Shimpo Instruments. It accurately measures rotational speed and linear surface speed, making it essential for industrial applications requiring precise speed monitoring and control.
Features

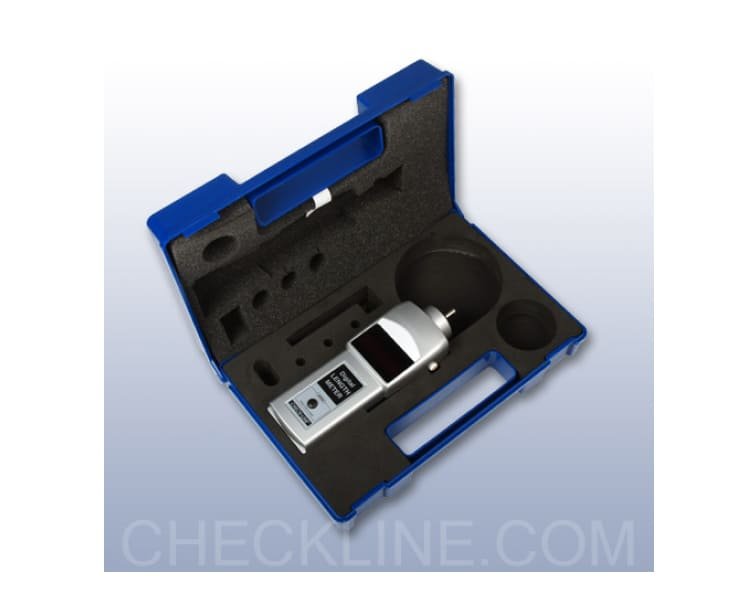

Complete Kit
Specifications
| Display Range | 0.10 to 25,000 rpm with floating decimal |
| Accuracy | ±1% of indicated |
| Measurement Units | Total Feet or Total Meters (optional) |
| Memory System | 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements) |
| Over-Range Indicator | Flashing numerals |
| Detection | Optical coupler, 60 pulses/rev |
| Update Time | 1 second (typical) |
| Batteries | Size: 2 1.5 V AA Life: Approx. 65 hrs. (DT-105A) Life: Approx. 40 hrs. (DT-107A) |
| Operating Temp | 32 to 113 °F (0 to 45 °C) |
| Weight | 0.9 pounds (400 grams) |
| Dimensions | 7.3″ L x 2.4″ W x 1.8″ H |
| Warranty | 1 year |
