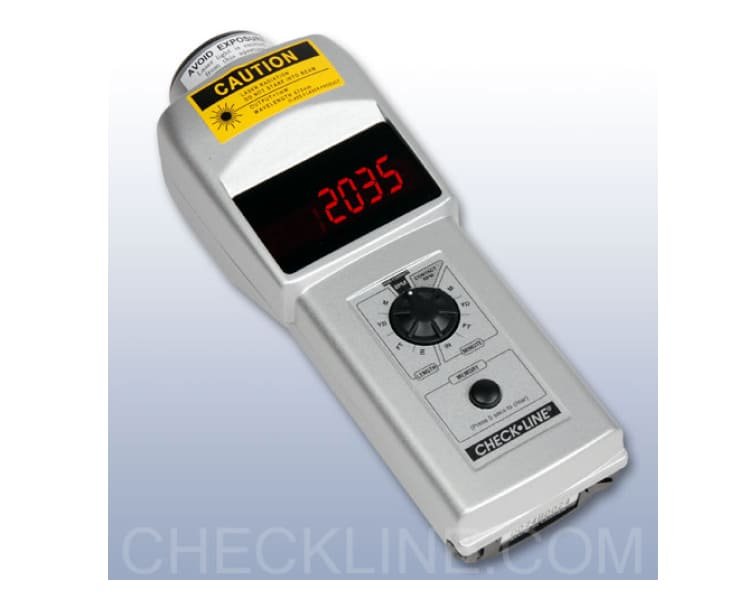

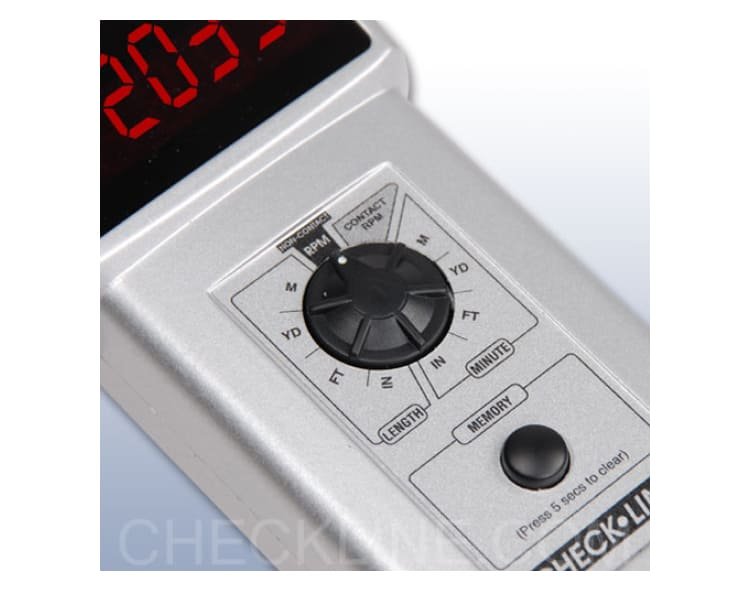

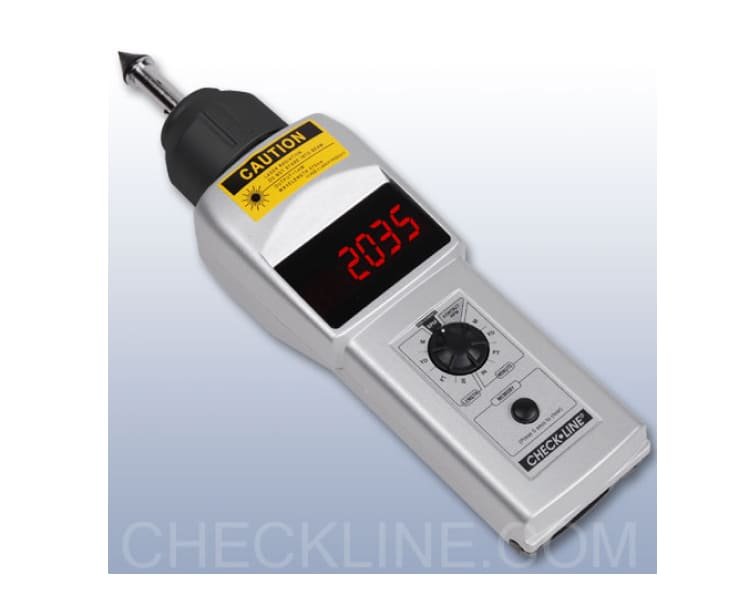

Tachometers DT-205LR – DT-207LR Shimpo

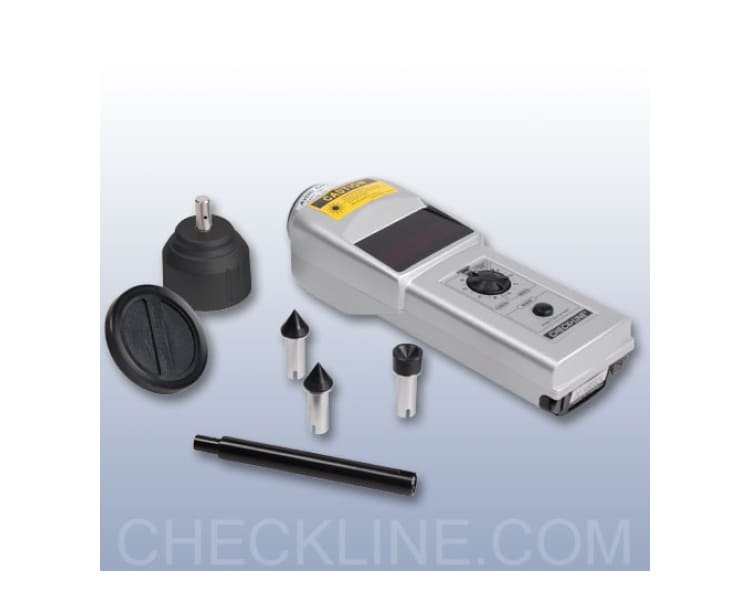

The Shimpo DT-205LR/DT-207LR Tachometers feature high-precision laser measurements up to 14 feet, built-in memory for key readings, and an NIST traceable calibration certificate. The DT-205LR has an LCD for sunlight use, while the DT-207LR has an LED for dark environments. Includes 6″ surface speed wheel.
18 people are viewing this product right now
🔥 8 items sold in last 3 hours
Tachometers DT-205LR – DT-207LR Shimpo

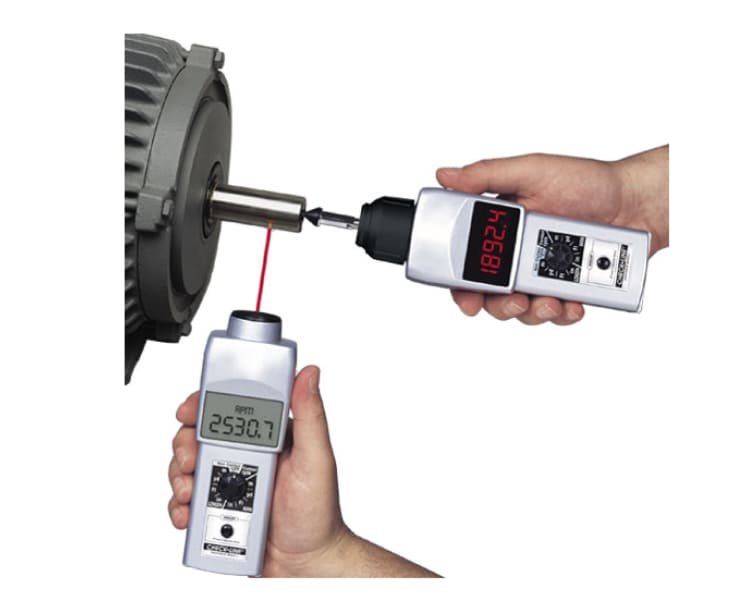

Shimpo DT-205LR and DT-207LR Tachometers are versatile instruments designed for accurate rotational speed and linear surface speed measurement. Ideal for industrial applications, they offer reliable performance and ease of use in various speed monitoring tasks.
Features

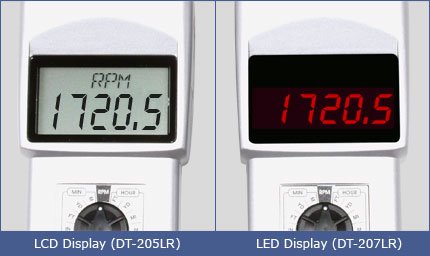

LCD Display vs LED Display
Specifications
| Measuring Range | Non-Contact – 6 to 99,999 rpm Contact – 0.8 to 25,000 rpm |
| Accuracy | 6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ± 6 rpm max. |
| Display | DT-205LR: (LCD MODEL) 5 digit 0.47″ (12mm) high DT-207LR: (LED MODEL) 5 digit 0.4″ (10mm) high |
| Measurement Units | Per Second: Inches, Centimeters (optional, inquire) Per Minute: Revolutions, Inches, Feet, Yards, Meters Per Hour: Miles, Kilometers (optional, inquire) Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters |
| Measuring Distance | 14 feet (4.2 m) maximum |
| Detection | Laser Diode, Class II |
| Memory | 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements) |
| Over-Range Indicator | Flashing numerals |
| Update Time | 1 second (typical) |
| Batteries | 2 – 1.5 V AA |
| Battery Life | DT-205LR Approx 40 hrs DT-207LR Approx 25 hrs |
| Low Voltage Indicator | DT-205LR Flashing “LO BAT” display DT-207LR “B” display |
| Operating Temp | 32 to 113° F (0 to 45° C) |
| Construction | Die-cast aluminum housing |
| Weight | 0.8 pounds (365 grams) |
| Dimensions | 6.6″ L x 2.4″ W x 1.8″ H (167mm x 61mm x 45.7) |
| Warranty | 1 year |
