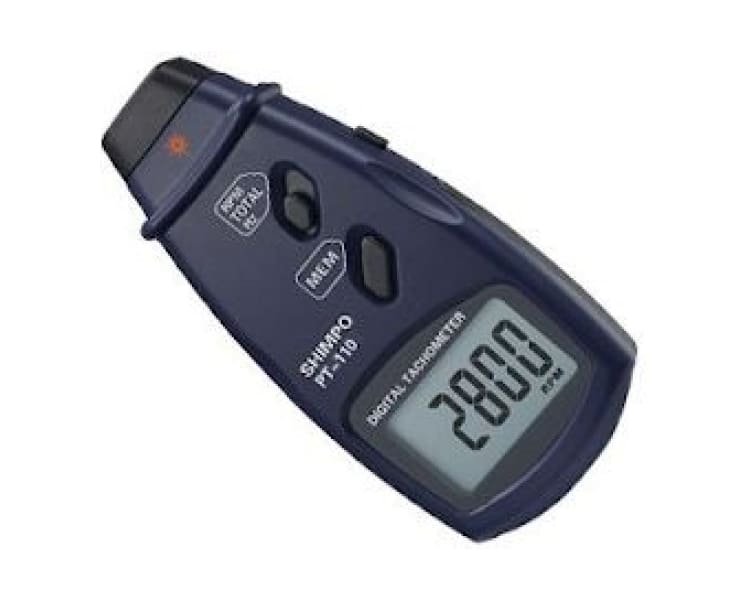

Tachometers PT-110 Shimpo
The Shimpo PT-110 Tachometer measures RPM, Hz, or Total with a selector switch. It features a lightweight, ergonomic design, a large backlit LCD, and laser operation for precise aiming. It records key values and up to 96 data points, easily reviewed with the MEM button.
34 people are viewing this product right now
🔥 5 items sold in last 3 hours
Tachometer PT-110 Shimpo
PT-110 is a simple model to use, ergonomic, rugged test instrument that operates with optical laser technology. This velocity analyzing and measuring device is ideal for rotational machine inspection and process speed analysis. The PT-110 possesses a large backlit LCD screen that provides clear viewing in any environment. Users can obtain results in either Hertz or RPM, as well as Total counts with the simple selection switch.
Features
Specifications
| Model | PT-110 |
| Range | 2.5~99999 RPM; 0.05 ~ 1666 Hz; 1 ~ 99999 Count |
| Display | 5 digit, 0.7” (18 mm) LCD |
| Resolution | 0.1 RPM (2.5 ~ 999.9 RPM) 1 RPM (above 1000 RPM) 0.01 Hz (0.05 ~ 99.99 Hz) 0.1 Hz (above 100 Hz) |
| Accuracy | +/-0.05% of Reading +/-1 LSD |
| Sampling Time | 0.8 second (over 60 RPM) |
| Detection | Laser |
| Measuring Distance | 2-20″ (50-500 mm) |
| Memory | Automatically stores Maximum (UP), Minimum (dn), last value (LA) and up to 96 readings for review.Maximum speed for reading storage is every 0.8 seconds |
| Power | 3 x 1.5V AAA battery |
| Enclosure | ABS plastic housing |
| Dimensions | 6.1” x 2.8” x 1.4” (155 x 70 x 35 mm) |
| Product Weight | 0.4 lb (181 g) |
| Package Weight | 0.9 lb (408 g) |
| Certifications | CE |
| Warranty | 1-Year |
| Included Accessories | 3 AAA batteries, protective carrying case, reflective tape |
