Thread Depth Checking Gauges KORDT

KORDT Thread Depth Checking Gauges ensure accurate screwing depth for optimal thread connection stability. CORDICHECK offers cost savings, reliability, and easy handling by integrating depth measurement with thread gauging. Features include durable scales, user-friendly gauge member exchange, and extended gauge life.

35 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

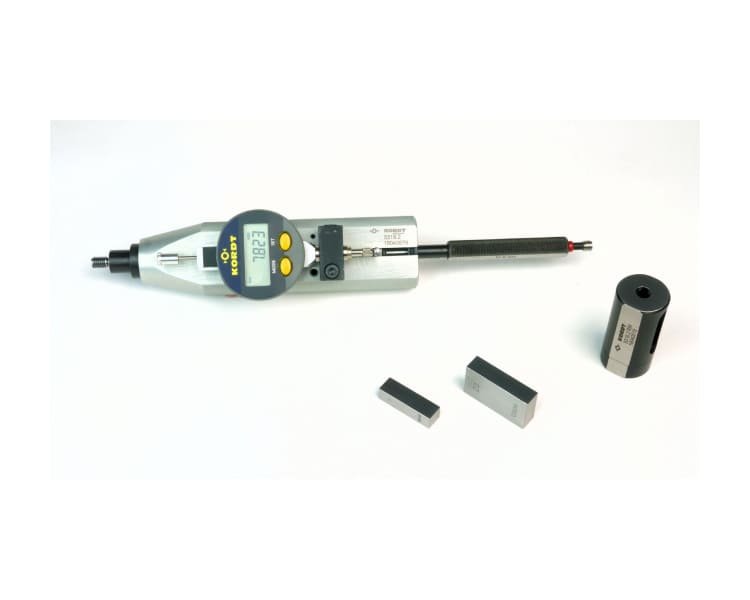

Thread Depth Checking Gauges KORDT

The function and stability of a thread connection depends on a correct screwing in depth of the thread. For this reason checking of this length is more and more required. On the other hand the thread needs only be as long as necessary to fulfill its purpose. The thread depth is often defined by suppliers and customers in different ways.

Spesification

High Rentability

The monitoring of the thread depth at the production of internal thread the CORDICHECK offers a high potential of savings: the time of process can be optimized and the costs of tools minimized. There is no need of an additional thread plug gauge.

High Reliability

The thread depth adjustment marking is fixed on the screw plug gauge of CORDICHECK 5311 therefore deadjustment is not possible. Even after replacing the thread member no recalibration is necessary.

Easy Handling

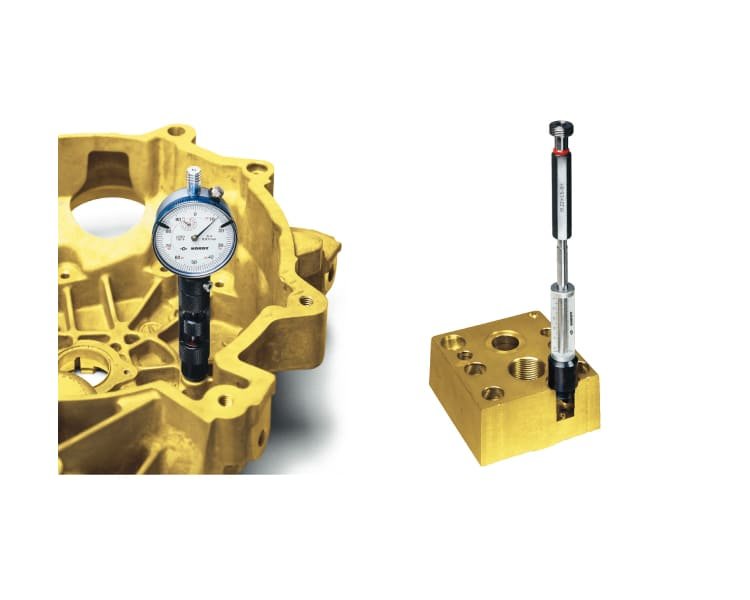

The depth measurement will be done at the same time as the gauging of the thread. The scale is easy and precisely readable. A setting master is not necessary. Exchanging of the gauge member can be done by the user himself.
