Torque Gauges and Test Stands TTST-V Rotary Shimpo

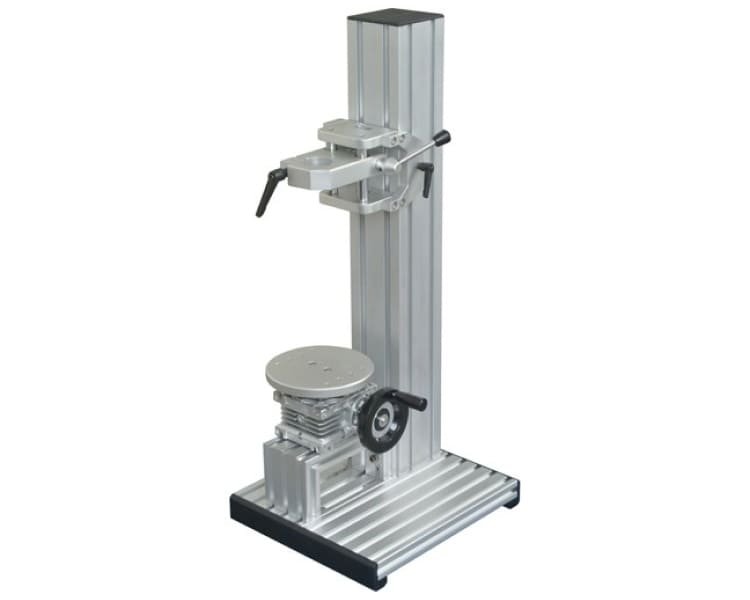

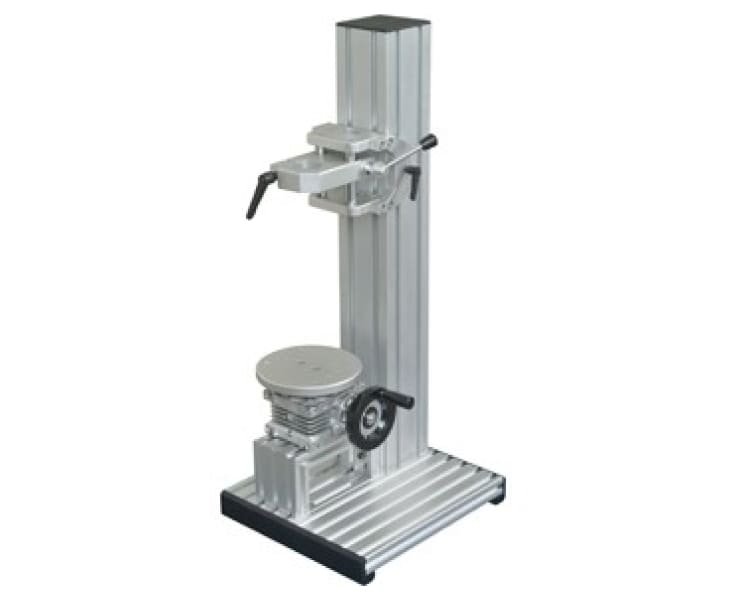

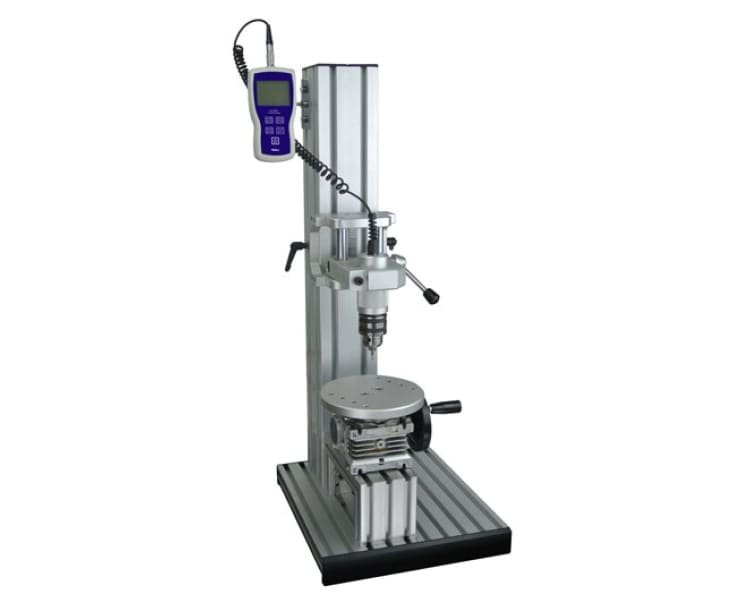

The vertical TTST-V test stand with a user-controlled rotating table is compatible with the TTC Torque Tool Tester and FG-7000T Digital Torque Gauge, thanks to its flexible mounting capabilities. Its rugged design allows for precise torque application to various NIDEC-SHIMPO torque instruments.

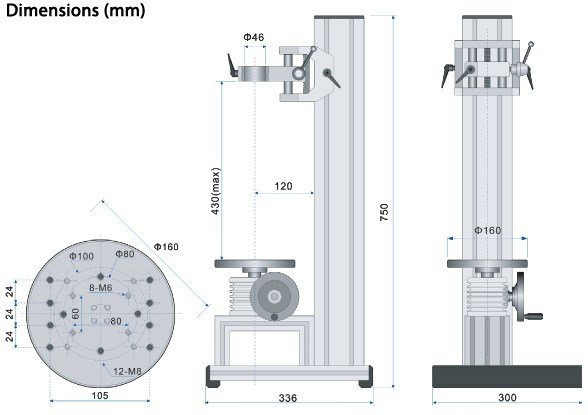

Dimensions (mm)
Specifications
| Model | TTST-V |
| Maximum Torque | 22.5 lb (10.2 kg) |
| Angular Travel | CW or CCW no limit |
| Angular Rate | 9° / wheel rev. |
| Throat | 4.7″ (120 mm) |
| Slider Adjustable Height | 16.9″ (430 mm) Max. |
| Slider Stroke | 1.8″ (45 mm) |
| Dimension | 13.2 x 13 x 29.5″ (336 x 330 x 750 mm) |
| Weight | 42 lb (19 kg) |
