Torque Gauges and Test Stands TRC Shimpo

The Shimpo TRC Torque Gauges and Test Stands offer precise ± 0.5% F.S. accuracy and a variety of applications with ranges from 17.7 in·lb to 88.5 in·lb. They feature memory function, durable cast-aluminum construction, PC connectivity, and a portable design.

37 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:September 29, 2026 - October 1, 2026

Description

Torque Gauges and Test Stands TRC Shimpo

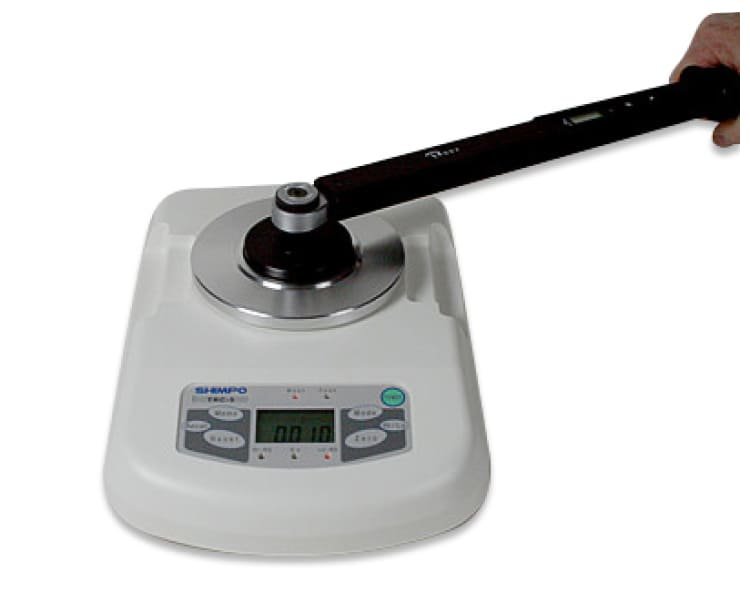

The new Shimpo TRC torque checker is a user-friendly instrument for calibrating or measuring torque values with a single button operation: Zero, Test, Store, and Repeat. It records Average, Maximum, Minimum, and Peak values, and features Red/Green/Red LEDs (HI-GO-LO) and an audible alarm. With a 3,000 data point storage capacity, it supports large batch testing for quality assurance.

Features

Variety of applications met with ranges from 17.7 in·lb (2 N·m) all the way to 88.5 in·lb (10 N·m).

Precise ± 0.5% F.S. ± 1 digit accuracy ensures exact results.

Memory function allows convenient storage of up to 3000 readings for later retrieval.

Large, easy to read LCD displays torque values in four selectable engineering units.

PC connectivity with USB interface and free Digitorq software enables data analysis and graphing on Microsoft® Excel.

Durable, cast-aluminum heavy-duty construction withstands demanding wear and tear.

Truly portable with compact, light-weight design and internal, rechargeable batteries.

Recharge batteries with included 120/240V AC adapter/charger or utilize adapter for continuous use.

Change measuring modes to capture Average, Maximum or Minimum values in both clockwise (CW) & counterclockwise (CCW) directions.

Includes Factory Certificate, CE Approval and 1 Year Warranty.

Speed up large batch tests with the integral Red/Green LED comparator that responds in accordance to pre-programmed tolerances.

Ranges

Model	Capacity
TRC-2	17.70 in·lb / 20.39 kg·cm / 200.0 N·cm / 2.000 N-m
TRC-5	44.25 in·lb / 50.99 kg·cm / 500.0 N·cm / 5.000 N-m
TRC-10	88.5 in·lb / 102.0 kg·cm / 1000 N·cm / 10.00 N-m

Specifications

Accuracy	±0.5% / F.S.
Display	Main display: 4-digit LCD display, Character height 0.5” (12 mm); Sub display: 3-digit, 0.29” (7 mm)
Comparator Display	LED indicates “NG”, “OK”, with adjustable alarm
Display Update Time	Select from 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)
Measuring Mode	MEAN: displays torque value in real time; PEAK: displays peak torque value
Overload	120% of full scale
Sampling	100 Hz
Memory	Total 3,000 data (10 sets with 300 data point per set)
Data Output	USB1.1 (data download by special software)
Power	NiMH rechargeable battery, and AC adapter 100-240vac, 50/60 Hz
Operating Environment	32 -104˚F (0 – 40˚C) 35 – 85%RH (non condensing)
Dimensions	12.60” x 8.66” x 3.82” (320 x 220 x 97 mm)
Product Weight	Approx. 13.25 lb (6.0 kg)
Software	Torque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
Warranty	1 year
Included Accessories	Torque adapter for driver, AC adapter/charger, USB cable, Mounting bracket, bolts for mounting bracket (2 pcs)
Certifications	CE
