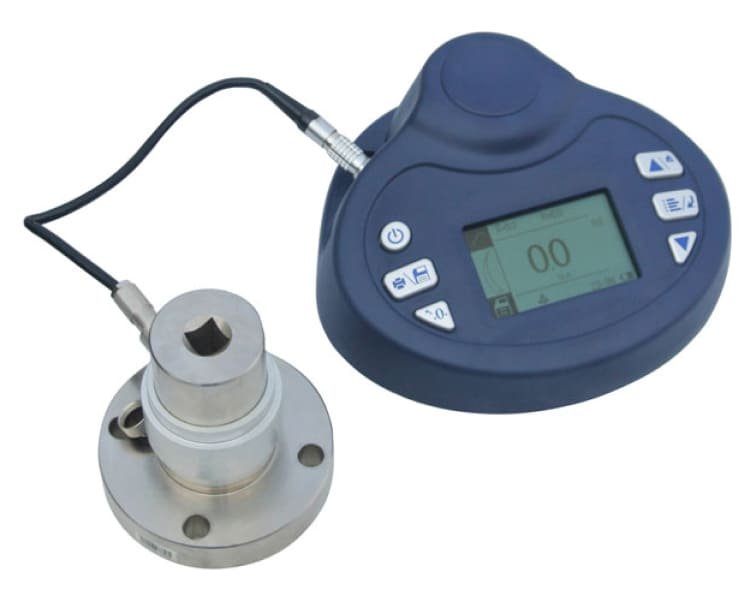

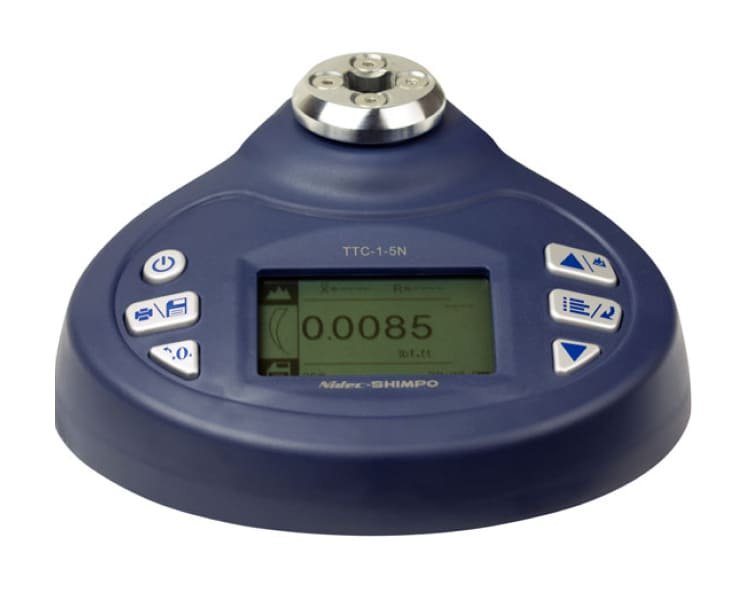

The Shimpo TTC Torque Gauges and Test Stands feature a robust yet lightweight aluminum enclosure for portability in any shop environment. Offering six flexible modes of operation and a backlit graphical display with analog bar graph, they ensure accurate and efficient testing processes.
20 people are viewing this product right now
🔥 9 items sold in last 3 hours
Torque Gauges and Test Stands TTC Shimpo

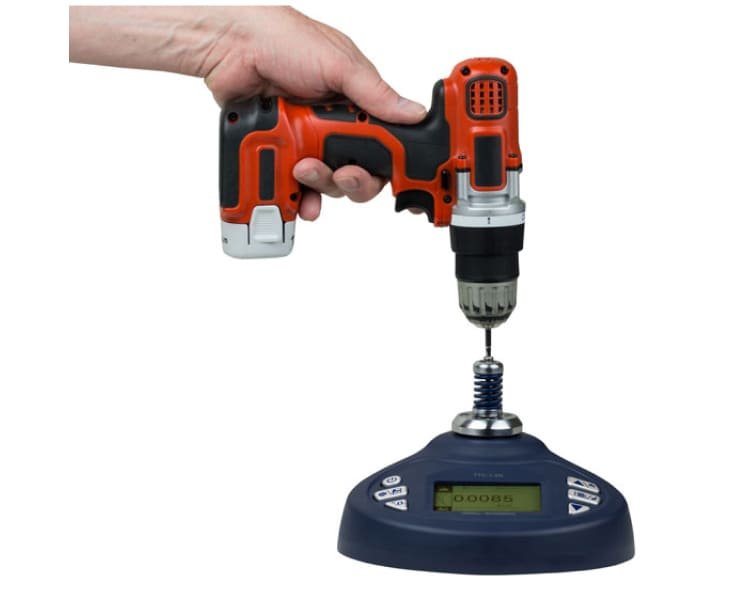

The TTC Series offers exceptional accuracy for measuring torque on various tools, including torque wrenches, manual and electric screwdrivers, and other torque-controlled power tools. It features six operation modes: Track (live readings), Peak (highest level), First Peak (reading after a decrease), Auto Peak (resets after a time), Auto First Peak (resets first peak after a time), and Double Peak (two peaks from programmed decreases). It operates on an internal rechargeable battery or an AC adapter.
Features
Ranges
| Model | N-m | N-cm | kgf-cm | in-lbf | ft-lbf |
|---|---|---|---|---|---|
| TTC-I-2 | 2 (0.0002) | 200 (0.02) | 20 (0.002) | 17.7 (0.002) | 1.48 (0.0002) |
| TTC-I-5 | 5 (0.001) | 500 (0.1) | 50 (0.01) | 43.3 (0.005) | 3.7 (0.0005) |
| TTC-I-10 | 10 (0.01) | 1000 (1) | 100 (0.1) | 88.5 (0.01) | 7.4 (0.001) |
| TTC-I-20 | 20 (0.002) | 2000 (0.2) | 200 (0.02) | 177 (0.02) | 14.8 (0.002) |
| TTC-I-50 | 50 (0.01) | 5000 (1) | 500 (0.1) | 443 (0.05) | 36.8 (0.005) |
| TTC-I-100 | 100 (0.02) | 10000 (1) | 1000 (0.1) | 885 (0.2) | 74 (0.01) |
| TTC-E-200 | 200 (0.02) | – | 2000 (0.2) | 1770 (0.2) | 148 (0.02) |
| TTC-E-500 | 500 (0.05) | – | 5000 (0.5) | 4425 (0.5) | 368 (0.05) |
| TTC-E-800 | 800 (0.1) | – | 8000 (1) | 7080 (1) | 590 (0.1) |
Specifications
| Measuring Range | 0.5% – 100% capacity |
| Accuracy | ± 0.3 % (5 to 100% capacity) |
| Units of Measure | N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range) |
| Measure Modes | Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak |
| Tool Socket Size | TTC-2/5/10: 1/4″ & 1/2″ (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8″ & 1/2″ (10 & 12.5 mm) TTC-500/800: 3/4″ (19 mm) |
| Overload Protection | 120% of Full Scale |
| Sampling Rate | 2000 Hz |
| Peak Capture Rate | 0.05 s |
| Display | 160* 128 Dot matrix backlit LCD |
| Display Update Rate | 10 times/sec |
| Memory | 1000 data |
| Set Point | Programmable High and Low Limits |
| Battery Indication | Battery icon flashes when low |
| Charger/Adapter | Universal USB charger, input 100 – 240 V ac 50/60 Hz |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Humidity Limit | 20 – 80% RH |
| Power | 3.6 V dc 1600 mAH Ni-MH |
| Battery Life | Approx. 16 Hours continuous on full charge |
| Output | USB, serial port RS-232, High and low limit NPN |
| Dimensions | Display TTC-I: 7.75 x 7 x 3.3″ (197 x 180 x 83 mm) Display TTC-E: 7.75 x 7 x 3″ (197 x 180 x 75 mm) External Sensor (50, 100 N-m): 4.3 x 3.3″(110 x 83 mm) External Sensor (200, 500 & 800 N-m): 4 x 3.8″ (100 x 98 mm) |
| Product Weight | TTC-I: 3.3 lb (1.5 kg) TTC-E Display: 2.6 lb (1.2 kg) TTC-E-200/500/800 External Sensor: 4.4 lb (2 kg) |
| Package Weight | TTC-I: 6.5 lb (3 kg) TTC-E-200/500/800: 10.2 lb (4.6 kg) |
| Warranty | 1-Year |
| Certification | CE |
| Included Accessories | USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only) |
