Torque Gauges and Test Stands TTST Shimpo
The Shimpo TTST Torque Gauges and Test Stands are designed for precise torque measurement in various applications. With their reliable performance and user-friendly features, they ensure accurate and efficient testing processes in industrial settings.
46 people are viewing this product right now
🔥 8 items sold in last 3 hours
Torque Gauges and Test Stands TTST Shimpo

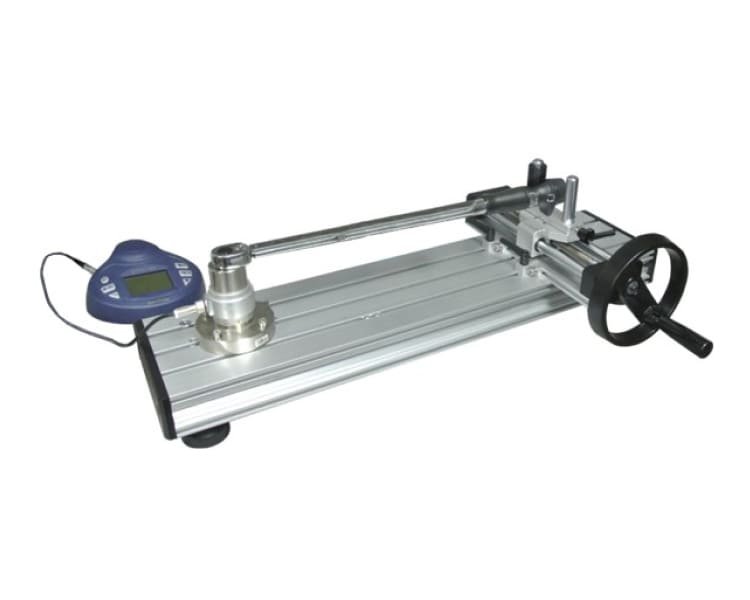

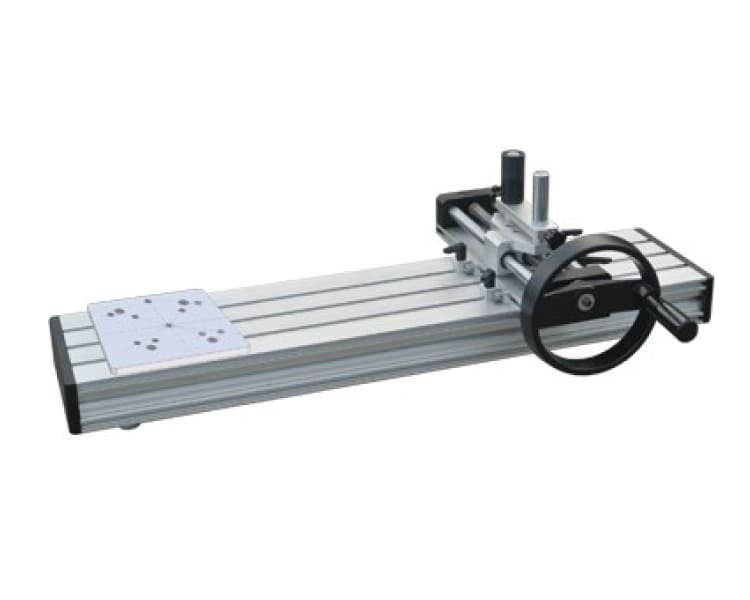

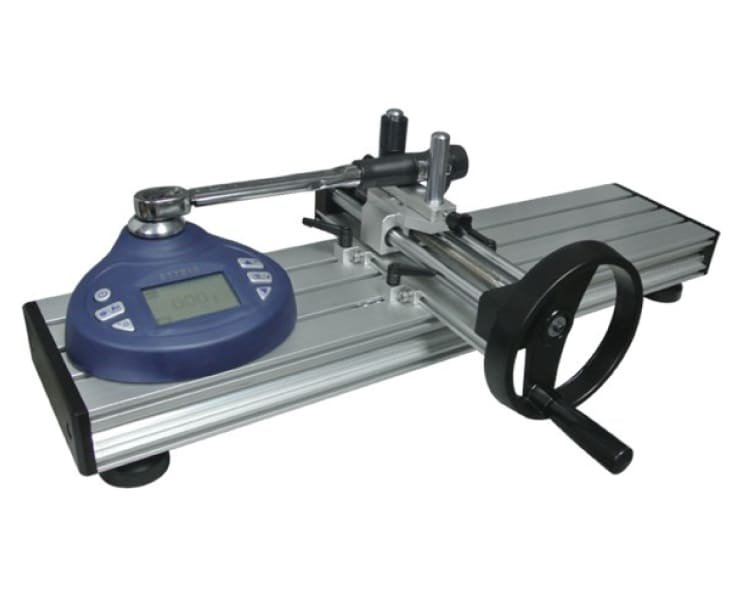

The horizontal TTST-1 and TTST-2 are designed specifically for use with the TTC Torque Tool Tester. These rugged torque loaders enable a torque force to be tightly applied to various torque tools. The large adjustment wheel steadily moves a connected tool under test, such as a torque wrench, at the user-controlled rate to properly finalize a performance check.

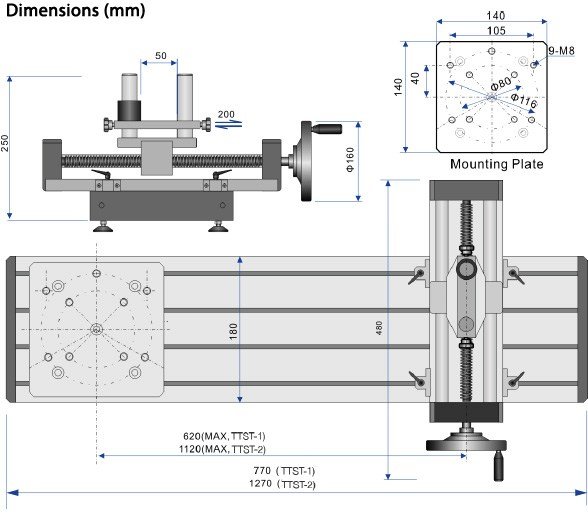

Dimensions (mm)
Specifications
| TTST-1 | |
|---|---|
| Arm Length (MM) | 150-600 |
| Loading Travel | 7.9″ (200 MM) |
| Loading Force | 225 LB (102 KG) |
| Weight | 27 LB (12 KG) |
| TTST-2 | |
| Arm Length (MM) | 150-1100 |
| Loading Travel | 7.9″ (200 MM) |
| Loading Force | 225 LB (102 KG) |
| Weight | 35 LB (16 KG) |
