Torque Gauges and Test Stands FG-7000T Shimpo
The Shimpo FG-7000T Torque Gauges and Test Stands offer versatile operation with numerical or graph display modes and four operational modes including peak, first peak, preset, and track mode. It features memory with group categorization and is supplied with a factory calibration certificate.
31 people are viewing this product right now
🔥 6 items sold in last 3 hours
Torque Gauges and Test Stands FG-7000T Shimpo

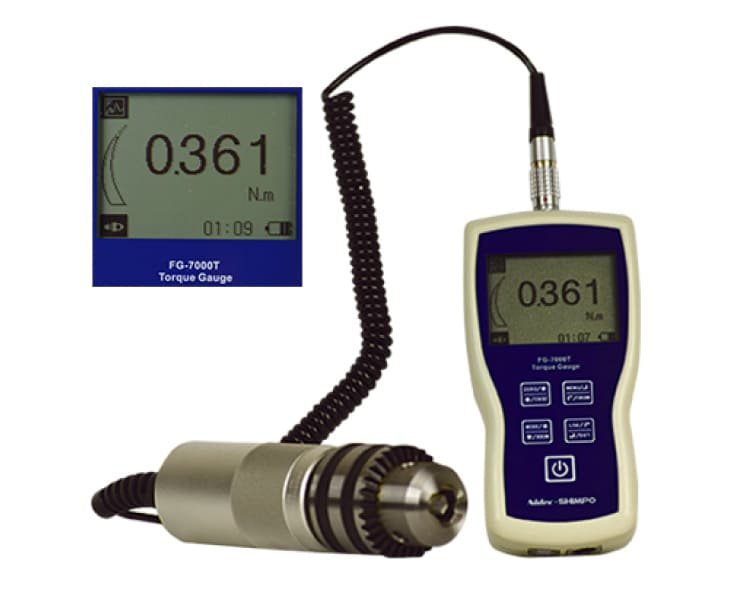

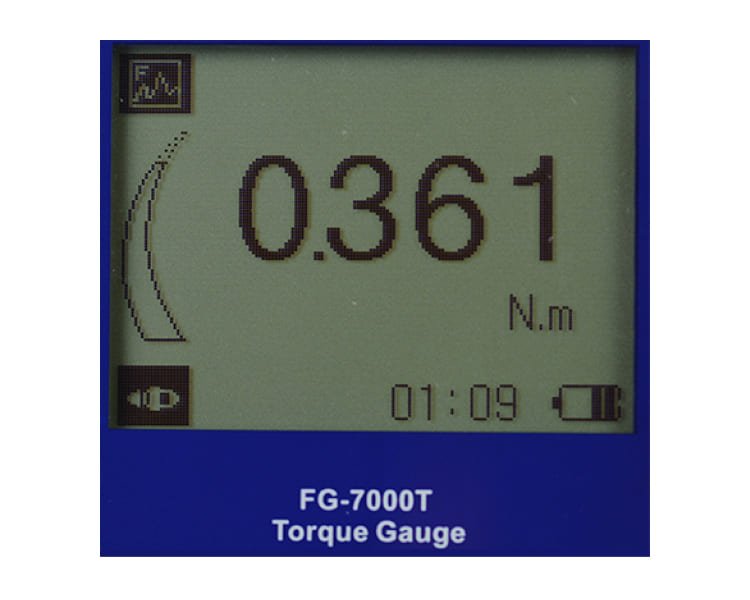

The FG-7000T digital torque gauge measures bidirectional torque via a remote sensor with an integrated chuck, suitable for applications like fastener assembly and bearing friction testing. It offers four measuring modes: Track (live readings), Peak (maximum reading), First Peak (initial peak only), and Preset (user-programmed tolerance alarms for go/no go testing). The display can show numerical or graphical views with a torque direction bar graph and pass/fail icons.
Features

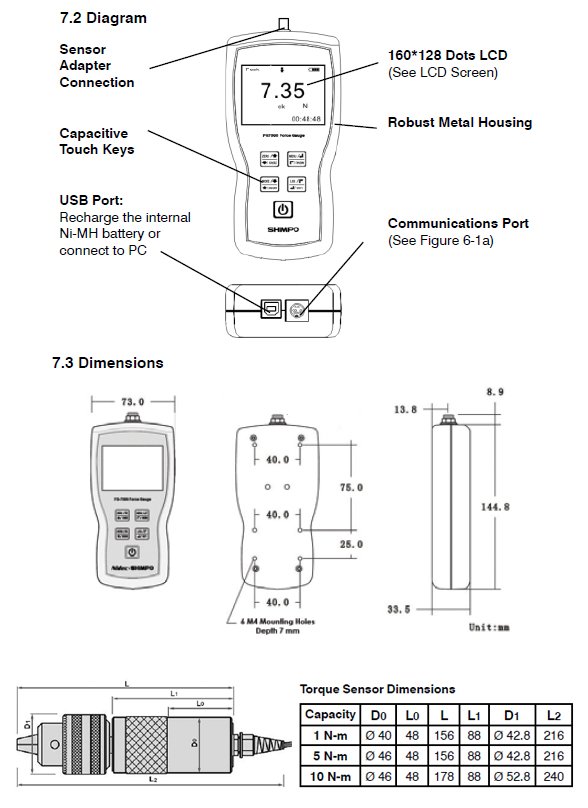

Dimensions
Measuring Ranges
| Model | Capacity (Resolution) | Chuck Size |
|---|---|---|
| FG-7000T-1 | 1 Nm (0.001) 100 N-cm (0.1) 8.9 lbf-in (0.005) | 1-10 mm 0.034 to 0.39 in |
| FG-7000T-2 | 5 Nm (0.001) 500 N-cm (0.1) 3.68 lbf-ft (0.001) 44.3 lbf-in (0.01) | 1-10 mm 0.034 to 0.39 in |
| FG-7000T-3 | 10 Nm (0.01) 1000 N-cm (1) 7.38 lbf-ft (0.001) 88.5 lbf-in (0.01) | 2-13 mm 0.079 to 0.512 in |
Specifications
| Accuracy | ± 0.3% F.S. |
| Selectable Units | N-m, N-cm, kgf-cm, lbf-in (Depending on Range) |
| Overload Capacity | 120% of F.S. (LCD flashes beyond 110% of F.S.) |
| Measurement method | Peak, First Peak Preset or Track Mode |
| Data Sampling Rate | 1000 Hz |
| Display | 160*128 dot matrix LCD with LED Backlight |
| Display Update Rate | 10 times/second |
| Memory | 1000 data |
| Set Point | Programmable high and low limits |
| Battery Indicator | Display flashes battery icon when battery is low |
| Power | 3.6VDC 800mAH Ni-MH rechargeable batteries |
| Battery Life | Approximately 16 hours continuous use per full charge |
| Charger / Adapter | Universal USB/BM charger, Input: 110 ~ 240VAC |
| Outputs | USB, Serial Port RS-232, High & Low Limit NPN |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Housing Material | Aluminum |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions | 5.7 x 2.9 x 1.4” (145 x 73 x 35.5 mm) |
| Weight | 3.7lbs (1.7 kg) NET 5.5 (2.5 kg) GROSS |
| Warranty | 1 year |
