Torque Gauges and Test Stands TNP Shimpo

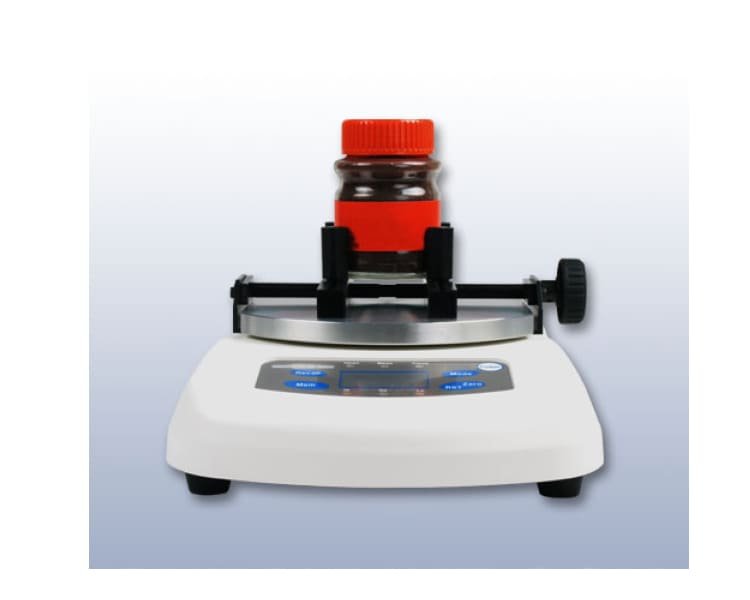

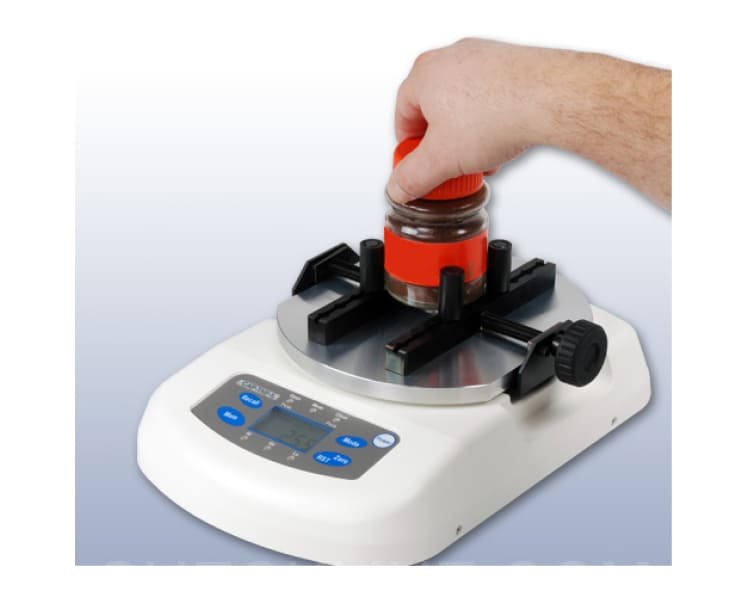

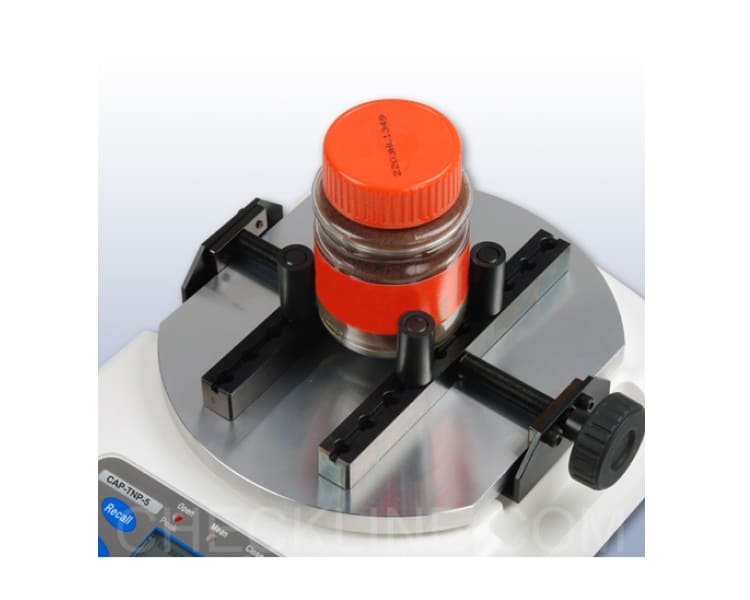

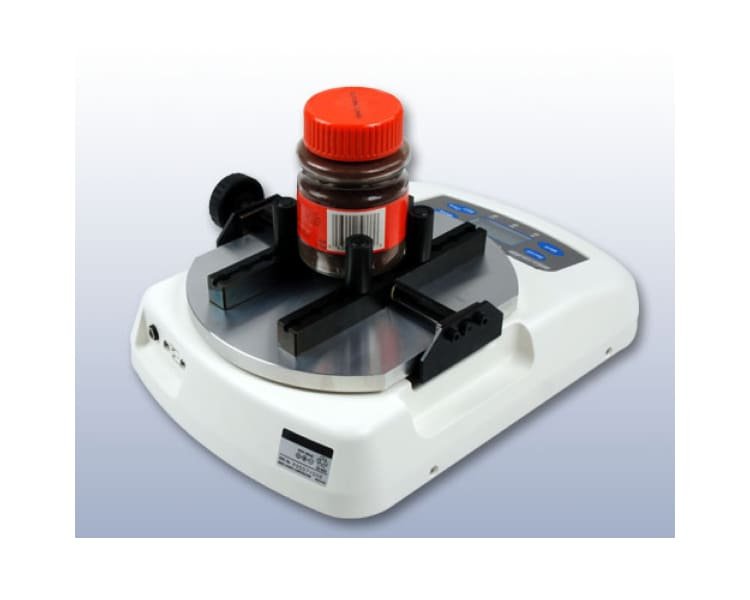

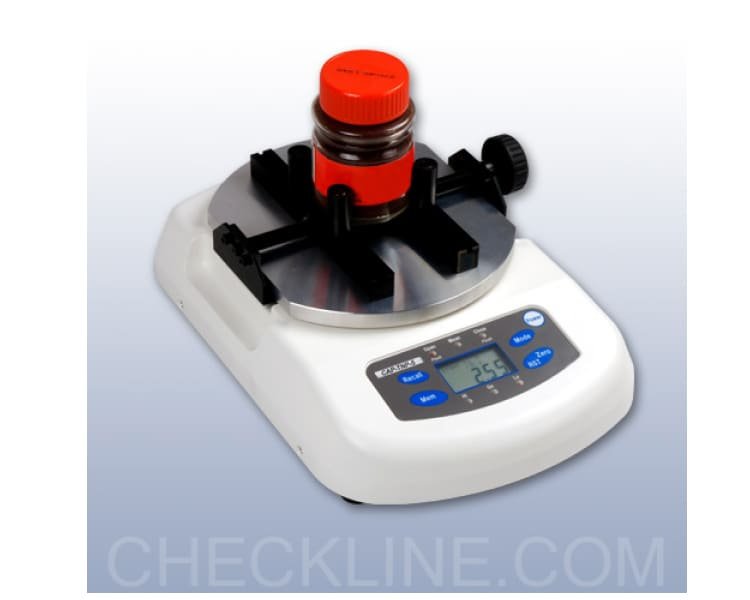

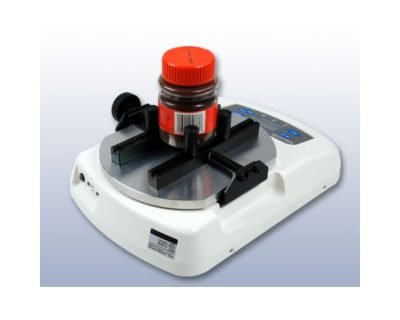

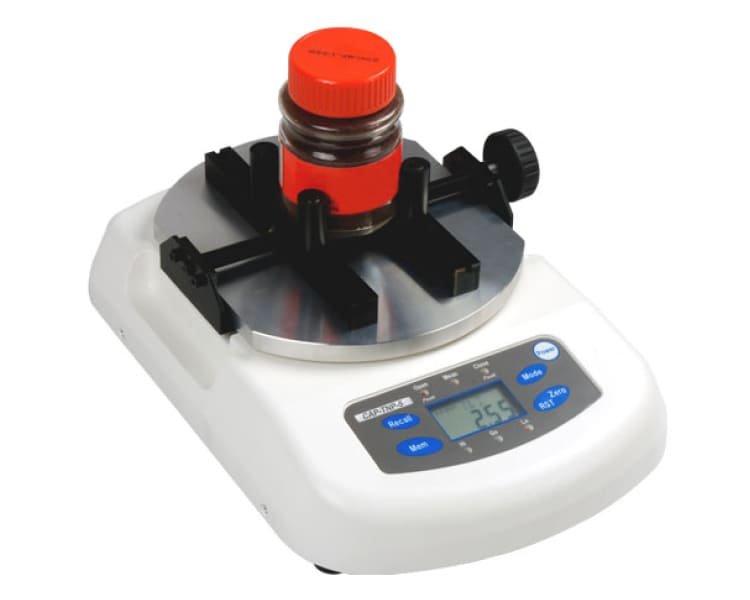

The Shimpo TNP torque meter is a precision instrument designed to measure OPEN and CLOSE torque values for various applications, particularly as a cap torque analyzer for bottle closure and breakaway torque. It can store up to 1,000 data points, including Average, Maximum, and Minimum values. The HI-LO comparator feature supports large batch testing to ensure product quality. USB-capable for computer testing, it includes free Digitorq Software for additional analysis.

Features

Rechargeable NIMH batteries and / or Universal AC adapter.

±0.5% F.S. Accuracy.

Includes Hi/Go/Lo Limits and LED Indicators.

Small foot print, compact, space saver design.

Displays Torque values in, lb-in, Kgcm and Nm, Ncm.

Open Mode: Max value when opening [CCW torque direction].

Close Mode: Max value when closing [CW torque direction].

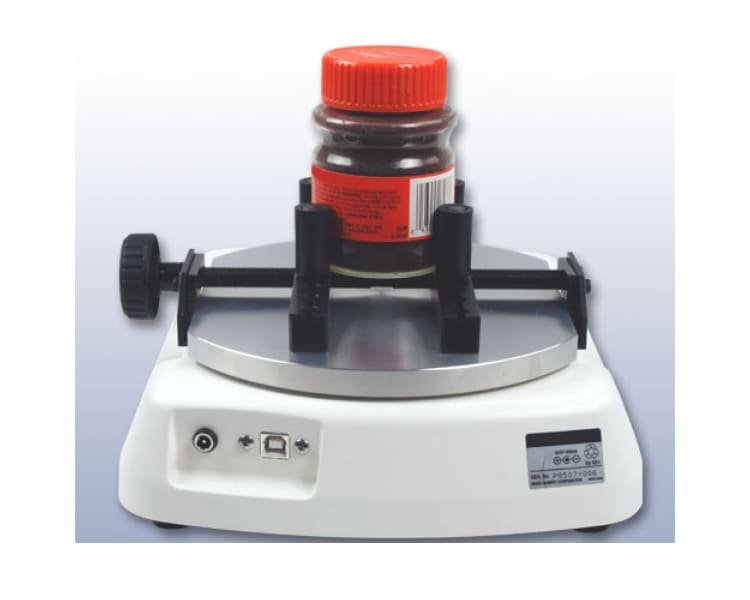

USB interface including FREE Digitorq Software.

Average Mode: Continuous torque values in real time.

Captures Peak Opening, Peak Closing and Average torque values (CCW, CW).

One touch operation, retains up to 1000 measurements in memory.

Three (3) models offered covering small, medium and large sized containers.

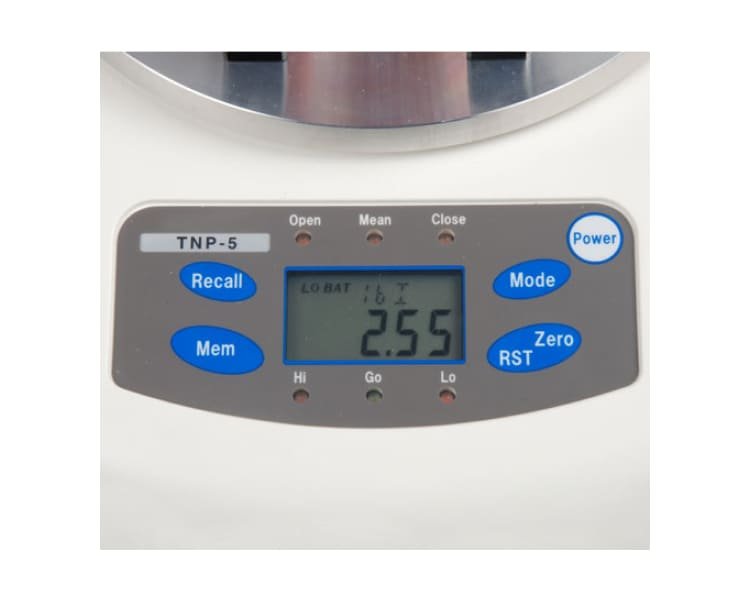

Easy to read L.C.D.

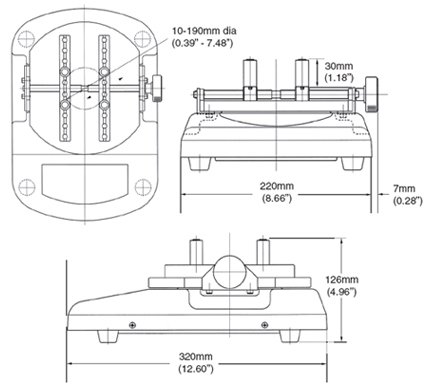

Dimensions

Torque Ranges

Model	Capacity	Resolution
TNP-0.5	0-4.425 Lbf-in 0-0.500 Nm 0-50.00 Ncm 0-5099 gcm	0.001 Lbf-in 0.001 Nm 0.01 Ncm 1 gcm
TNP-2	0-17.70 Lbf-in 0-2.000 Nm 0-200.0 Ncm 0-20.39 Kgcm	0.01 Lbf-in 0.001 Nm 0.1 Ncm 0.01 Kgcm
TNP-5	0-44.25 Lbf-in 0-5.000 Nm 0-500.0 Ncm 0-50.99 Kgcm	0.01 Lbf-in 0.001 Nm 0.1 Ncm 0.01 Kgcm
TNP-10	0-88.5 Lbf-in 0-10.00 Nm 0-1000 Ncm 0-102.0 Kgcm	0.1 Lbf-in 0.01 Nm 1 Ncm

Typical Torque Values (LB-IN)

Cap dia. in mm	Phenolic/ Urea Cap On Glass		Phenolic/Urea Cap on Plastic		PP/PE Cap on Glass		PP/PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	8	4	6	3	12	7	8	4
18	9	5	7	4	13	8	9	5
20	10	5	8	4	15	9	10	5
22	11	6	9	5	17	10	11	6
24	12	6	10	5	18	11	12	6
28	14	7	12	6	21	12	14	7
33	18	9	15	7	24	14	17	8
38	20	10	17	7	29	17	19	9
43	22	11	18	9	33	20	22	11
48	24	14	20	10	26	22	24	12
58	28	14	24	12	44	26	29	14
70	35	18	28	14	52	32	35	17
89	45	22	36	18	65	40	45	22
100	50	25	40	20	75	38	50	25
