Force Gauges Digital PT Kits Shimpo

The Shimpo Digital PT Kits offer force measurement ranges from 100 to 500 lbs (50 to 250 kg) with ±0.2% F.S. accuracy. Featuring peak hold and real-time force modes, a large LCD display, and reversible operation, they are CE Mark & RoHS Approved for reliability.

27 people are viewing this product right now

🔥 5 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Force Gauges Digital PT Kits Shimpo

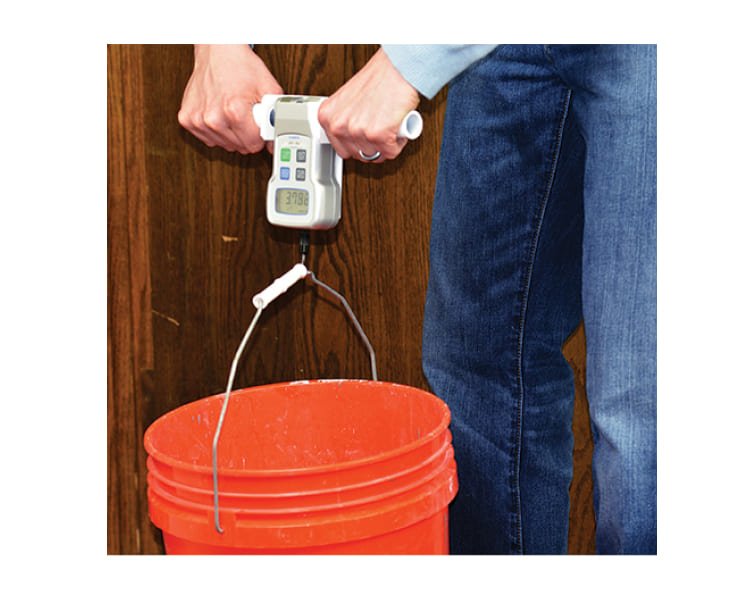

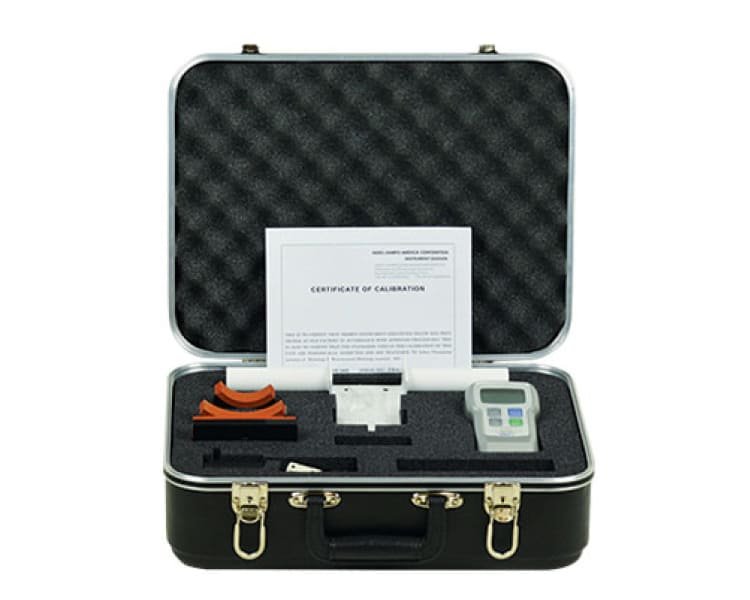

Our digital PT kits are perfect for professional physical therapists and ergonomists, offering lightweight, durable, and visually appealing tools for muscle strength and ergonomic force testing. Ideal for isokinetic testing and job task analysis, these kits are ergonomically designed for ease of use and include free software for force data collection. They can display peak compression, tension, or real-time forces and come with padded ERGO accessories, handle adapters, and N.I.S.T.

Features

180° Reversible display aids user operation in various test configurations.

Ranges from 100 to 500 lbs (50 to 250 kg).

Large easy to read LCD display with units selection.

Peak hold tension and compression or real time force mode.

Compact, ergonomic design is perfect for handheld use.

Operate with the rechargeable batteries or AC Power Adapter.

Outstanding ±0.2% F.S. accuracy allows usage in strictest applications.

CE Mark & RoHS Approval.

180° Reversible display aids user operation in various test configurations.

Overview

Force Ranges

FGE-PT100	100 lb 50 kg 500 N	0.01 lb 0.01 kg 1 N
FGE-PT200	200 lb 100 kg 1000 N	0.1 lb 0.1 kg 1 N
FGE-PT500	500 lb 250 kg 2500 N	0.1 lb 0.1 kg 1 N
FGV-PT100	100 lb 50 kg 500 N	0.01 lb 0.01 kg 1 N
FGV-PT200	200 lb 100 kg 1000 N	0.1 lb 0.1 kg 1 N
FGV-PT500	500 lb 250 kg 2500 N	0.1 lb 0.1 kg 1 N

Specifications

Accuracy	± 0.2% F.S. @ 73°F (23°C)
Display	Reversible 4-Digit LCD, 0.47″ high (12 mm) with various indicators including tension and low battery indication
Mode	Real time or Peak hold mode
Display Update	Selectable
Sampling Rate	1000/sec
Overload Capacity	150% of F.S.; 200% of F.S. for 100 lb
Power	Rechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz)
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Temperature Limits	32 to 104°F (0 to 40°C)
Dimensions	PT100,PT200: 5.8″ x 3″ x 1.5″ (147 x 75 x 38 mm) PT500: 8.43″ x 3.23″ x 2.25″ (214 x 82 x 57 mm)
Kit Weight	PT100 Kits: 6.3 lb (2.85 kg) PT200 Kits: 6.65 lb (3 kg) PT500 Kits: 7.5 lb (3.4 kg)
Certification	CE, RoHS
Warranty	2 Year
