Motorized Test Stands FGS-220VC Shimpo

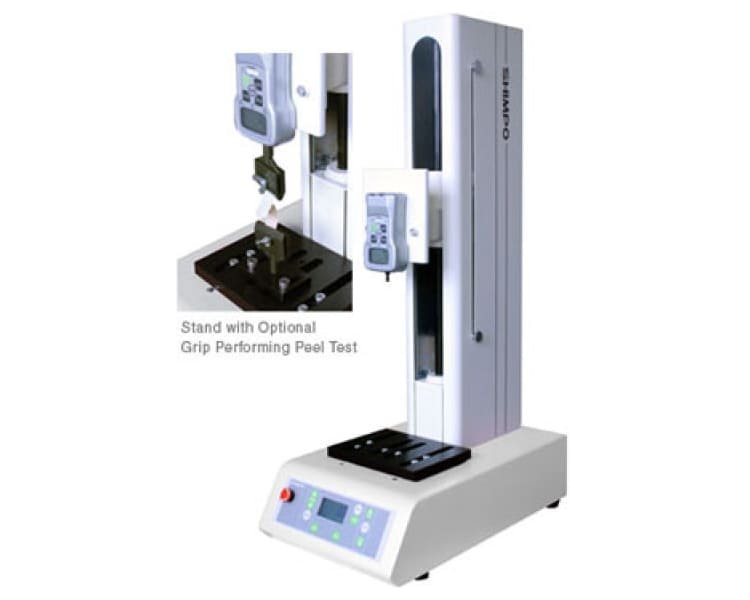

The FGS-VC Series Motorized Force Test Stands are designed for precise and repeatable tension, compression, break, and cycle performance tests. Key features include a precision-made servo gear head and ball screw for precise movement control, a large measurement area, and a 15.75″ (400 mm) travel distance to accommodate large parts.
Features
Specifications
| Capacity | 220 lb (100kg ,1000N) |
| Travel Speed | 0.40-15.75″/min (10-400mm/min) |
| Speed Accuracy | ±5% |
| Stroke | 15.75 in (400 mm) |
| Display | Dot-matrix LCD Four digit |
| Operation Mode | Single (SING); Continuous (CONT); Program (PROG); Manual (MANU); Jogging (JOG) |
| Communication | USB |
| Input | Over load from force gauge (The stand will stop immediately, if the over load is detected by force gauge.) |
| Measurement Table | 5.91 x 7.87″ (150 x 200 mm) |
| Temperature Limits | 32 to 113 °F (0 to 45 °C) |
| Power | 120V AC (240V AC, available INQUIRE) |
| Dimensions | 11.81 x 34.84 x 19.69″ (300 x 885 x 500mm) |
| Weight | 139 lb (63 kg) |
| Included Accessories | USB cable, Force gauge communication cable, gauge/plate Mounting accessories |
| Warranty | 1 year |
