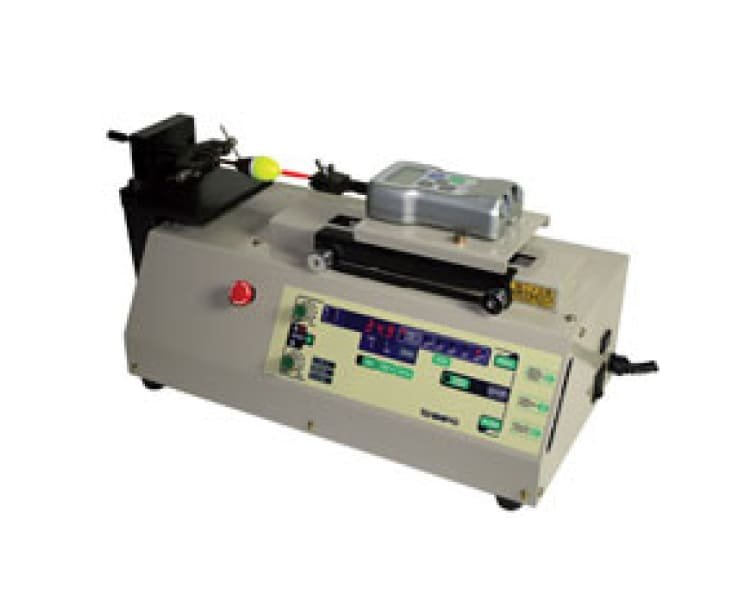

Motorized Test Stands FGS-100PX Shimpo
The Shimpo FGS-100PX Motorized Test Stand offers customizable testing with five user-programmable set points. Compatible with most force gauges, it features analog output for data analysis, adjustable limits for precision, RS232 interface, and a compact, modular design.
32 people are viewing this product right now
🔥 9 items sold in last 3 hours
Motorized Test Stands FGS-100PX Shimpo
The FGS-100PX advanced motorized, programmable force test stand, combined with high-quality force gauges, creates a comprehensive force measurement system for precise testing applications. Its all-steel construction ensures durability and precision. With programming capabilities, it can handle various applications. It offers two operation modes, single or continuous cycling, for precise or repetitive tests.
Features
Specifications
| Capacity | 110 lb (50 kg) |
| Travel Speed | FGS-100PXH: 0.79 – 19.69 inch/min (20 – 500 mm/min) FGS-100PXL: 0.19 – 4.72 inch/min (5.00 – 120 mm/min) |
| Stroke | 5.5″ (140 mm) |
| Display | Four digit LED, 0.41″ high (10.5 mm), Reads in inches (0.01 resolution) or millimeters (0.1 resolution) |
| Operating Mode | Manual (MANU), Jogging (JOG), Single (SING), Continuous (CONT), Program (PROG) |
| Time Delay | 0 through 5 second delay between direction change |
| Power | 120 VAC, 60 Hz |
| Weight | 40 lb (18 kg) |
| Warranty | 2 Years |
