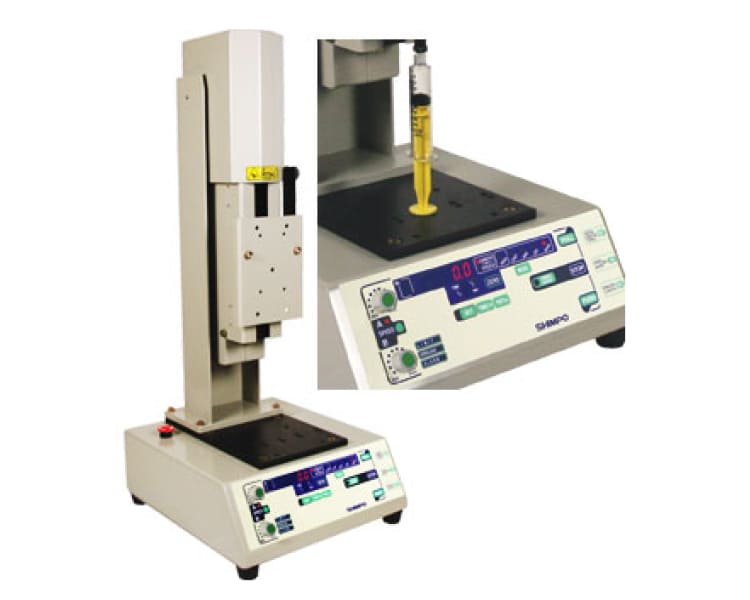

Motorized Test Stands FGS-100PV Shimpo
The Shimpo FGS-100PV Motorized Test Stand offers flexible testing with compatibility for most force gauges, five programmable set points, and precise control with adjustable limits. It features analog output for data analysis, RS232 interface, and a compact, modular design.
39 people are viewing this product right now
🔥 5 items sold in last 3 hours
Motorized Test Stands FGS-100PV Shimpo

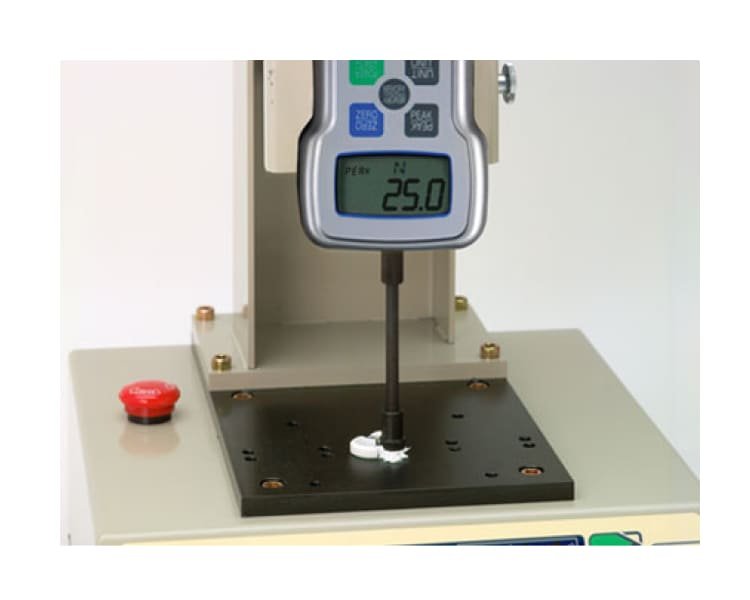

The FGS-100PV advanced motorized, programmable force test stand, paired with high-quality force gauges, offers a complete system for precise testing applications. With robust all-steel construction, it delivers durability and precision. Its programming capabilities and two operation modes (single or continuous cycling) provide versatility for various applications.
Features
Specifications
| Capacity | 110 lb (50 kg) |
| Travel Speed | FGS-100PVH: 0.79 – 19.69 inch/min (20 – 500 mm/min) FGS-100PVL: 0.39 – 3.93 inch/min (10 – 100 mm/min) |
| Stroke | 5.5″ (140 mm) |
| Vertical Clearance | FGS-100PVH: 2.4″ – 7.1″ (61 – 181mm) 5 steps, 1.18″/step (30 mm/step) FGS-100PVL: 2.4″ – 7.1″ (51 – 181 mm) 5 steps, 1.18″/step (30 mm/step) |
| Display | Four digit LED, 0.41″ high (10.5 mm), Reads in inches (0.01 resolution) or millimeters (0.1 resolution) |
| Operating Mode | Manual (MANU), Jogging (JOG), Single (SING), Continuous (CONT), Program (PROG) |
| Time Delay | 0 through 5 second delay between direction change |
| Power | 120 VAC, 60 Hz |
| Weight | 42 lb (19 kg) |
| Warranty | 2 Years |
