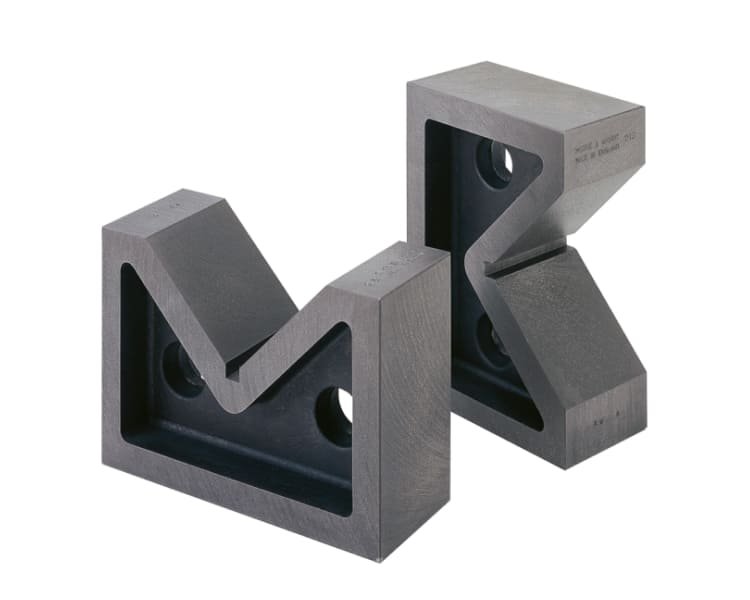

Traditional ‘v’ Blocks Standard Pairs Moore & Wright
Moore & Wright’s Traditional ‘V’ Blocks Standard Pairs are crafted from close-grained cast iron with ground faces. Supplied in matched and numbered pairs, they ensure reliable and accurate positioning for various machining and inspection tasks.
45 people are viewing this product right now
🔥 5 items sold in last 3 hours
Traditional ‘v’ Blocks Standard Pairs Moore & Wright
Manufactured from close grained cast iron, The Moore & Wright Traditional ‘V’ Blocks boast ground faces and are supplied in matched and numbered pairs. Please see specification table for further product information.
Features
Specification
| Product Code | Accuracy (mm) | Accuracy (inch) | Capacity (mm) | Capacity (inch) | Length (mm) | Length (inch) | Width (mm) | Width (inch) | Height (mm) | Height (inch) | Price |
| 216 | 0.06 | 0.0025 | 200 | 7.87 | 74 | 2.94 | 224 | 8.82 | 164 | 6.45 | POA |
| 215 | 0.06 | 0.0025 | 160 | 6.30 | 64 | 2.54 | 184 | 7.24 | 134 | 5.27 | POA |
| 214 | 0.05 | 0.0020 | 125 | 4.92 | 54 | 2.15 | 154 | 6.06 | 104 | 4.09 | POA |
| 213 | 0.05 | 0.0020 | 100 | 3.94 | 49 | 1.95 | 134 | 5.27 | 94 | 3.7 | POA |
| 212 | 0.04 | 0.0015 | 80 | 3.15 | 44 | 1.75 | 104 | 104 | 74 | 2.91 | POA |
| 211 | 0.04 | 0.0015 | 63 | 2.48 | 39 | 1.55 | 84 | 3.3 | 64 | 2.52 | POA |
| Product Code | Accuracy (mm) | Accuracy (inch) | Capacity (mm) | Capacity (inch) | Length (mm) | Length (inch) | Width (mm) | Width (inch) | Height (mm) | Height (inch) | Price |
| 211 | 0.04 | 0.0015 | 63 | 2.48 | 39 | 1.55 | 84 | 3.3 | 64 | 2.52 | POA |
| 212 | 0.04 | 0.0015 | 80 | 3.15 | 44 | 1.75 | 104 | 104 | 74 | 2.91 | POA |
| 213 | 0.05 | 0.0020 | 100 | 3.94 | 49 | 1.95 | 134 | 5.27 | 94 | 3.7 | POA |
| 214 | 0.05 | 0.0020 | 125 | 4.92 | 54 | 2.15 | 154 | 6.06 | 104 | 4.09 | POA |
| 215 | 0.06 | 0.0025 | 160 | 6.30 | 64 | 2.54 | 184 | 7.24 | 134 | 5.27 | POA |
| 216 | 0.06 | 0.0025 | 200 | 7.87 | 74 | 2.94 | 224 | 8.82 | 164 | 6.45 | POA |
