Universal Setting Gauge Bowers

The Universal Setting Gauge by Bowers comes in three lengths, each for different internal and external measurements. Featuring flat face contact anvils, it’s ideal for workshop use, with adjustable mounting supports for ease. Length Setting Rods or a digital indicator may be used for setting.

36 people are viewing this product right now

🔥 11 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Universal Setting Gauge Bowers

The Universal Setting Gauge features adjustable guide bars with two supports to minimize deflection. Its rugged construction makes it ideal for shop floor use. Designed mainly for the Bowers Universal Gauge and INTEX Comparator Beam Gauge, it can also set other instruments.

Features

Length adjustment can also be achieved by fitting an optional digital indicator.

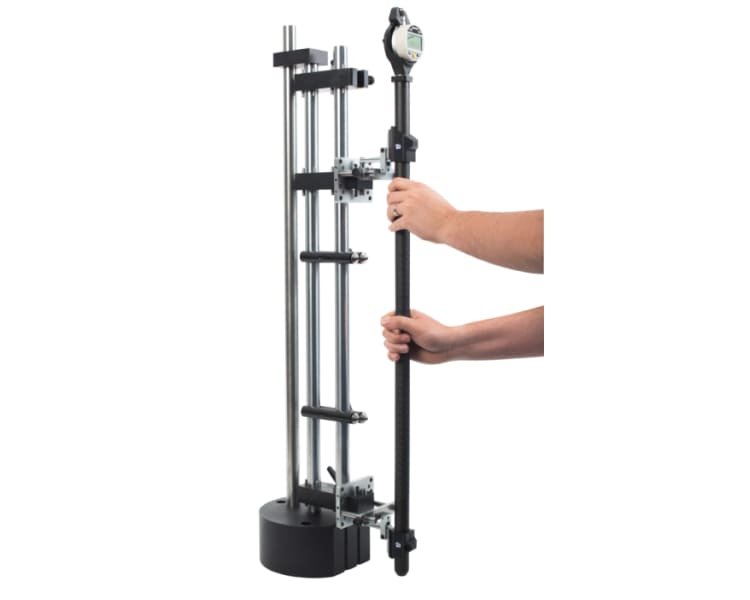

Can be orientated vertically up to 1050mm internal / 1150 external when a base and vertical guide.

Requires Length Setting Rods for setting (Spherical ends advised).

Easily adjustable gauge mounting supports.

Ideal for use in the workshop area.

Setting gauge has flat face contact anvils.

Up to 1550mm Internal - 1650mm External.

Up to 1050mm Internal - 1150mm External.

Up to 550mm Internal - 650mm External.

Available in 3 different lengths

Spesification

Product Code	Description	Price
USG550	Universal Setting Gauge, 550mm internal to 650mm external	POA
USG1050	Universal Setting Gauge, 1050mm internal 1150mm external	POA
USG1550	Universal Setting Gauge, 1550mm internal 1650mm external	POA
USGS	Universal Setting Gauge Vertical Stand – Only suitable for USG550 and USG1050	POA
