XT Thread Standard Heads Bowers

The XT Thread Standard Heads by Bowers cover a wide range of metrics, from M4 to M300 (metric) and No8 to 12” (imperial), offering various forms and configurations for rapid and accurate thread measurement.

37 people are viewing this product right now

🔥 4 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

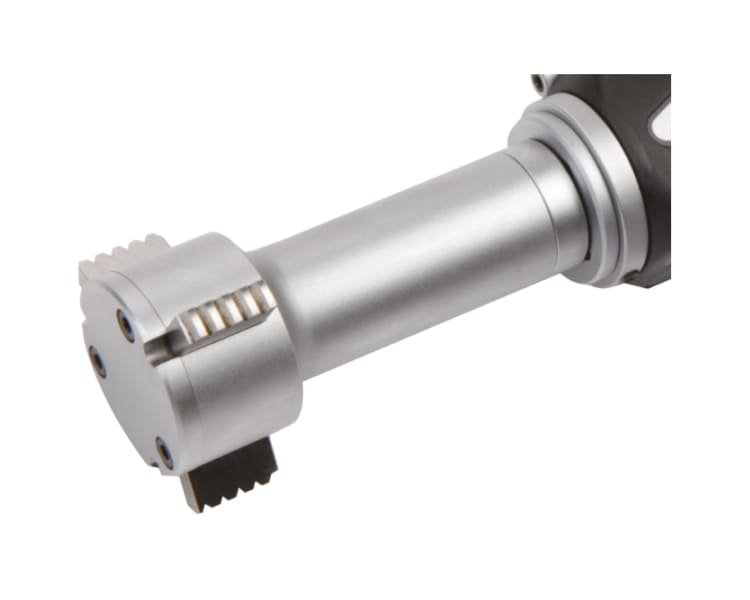

XT Thread Standard Heads Bowers Bowers

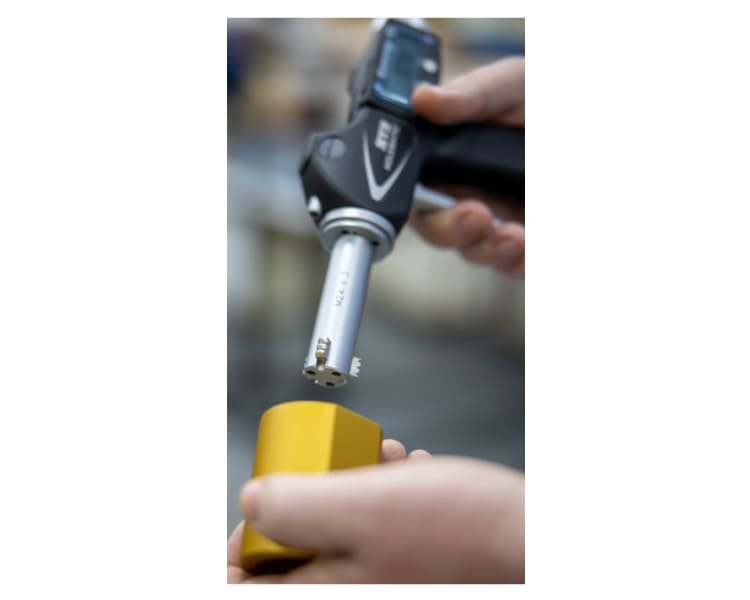

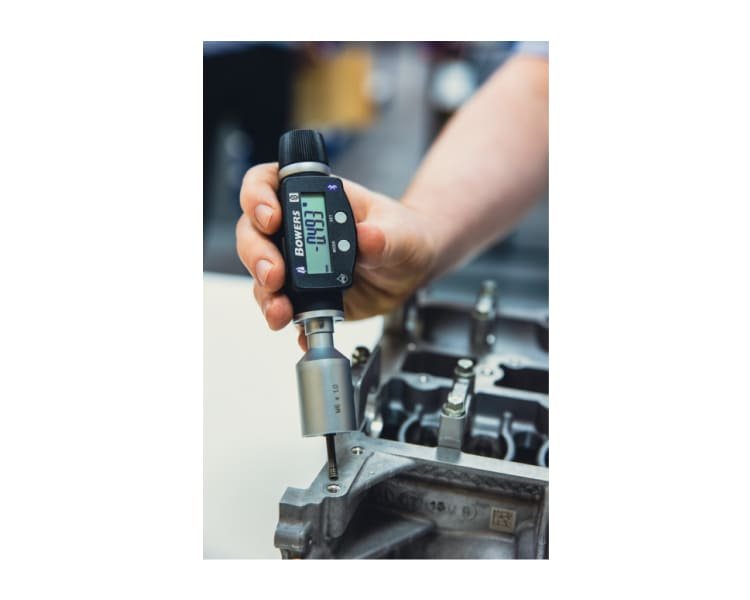

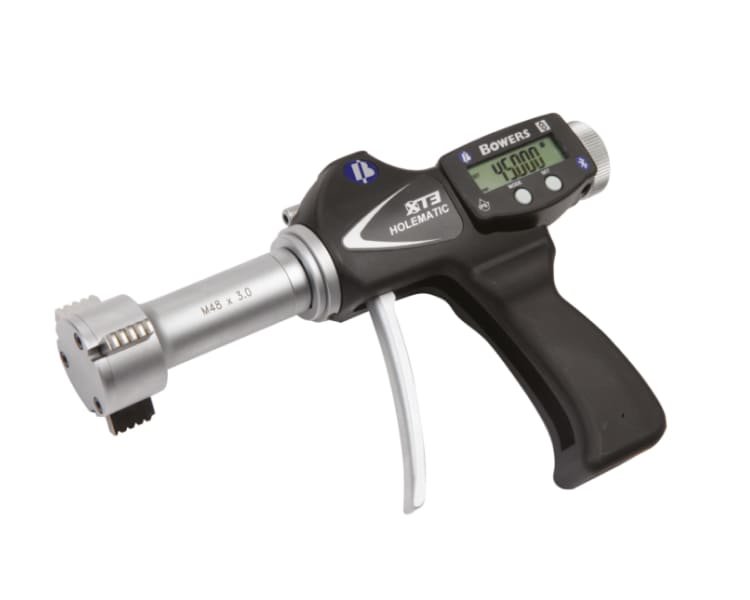

Each of these application heads can be fitted directly to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results that can be digitally recorded.

Features

Metric, UN, Buttress, Acme, Trapezoidal, Ball screw and non-standard forms available.

Left and right handed available.

No8 – 12” (imperial).

Enhanced Efficiency

M4 – M300 (metric).

2 Point or 3 Point available.

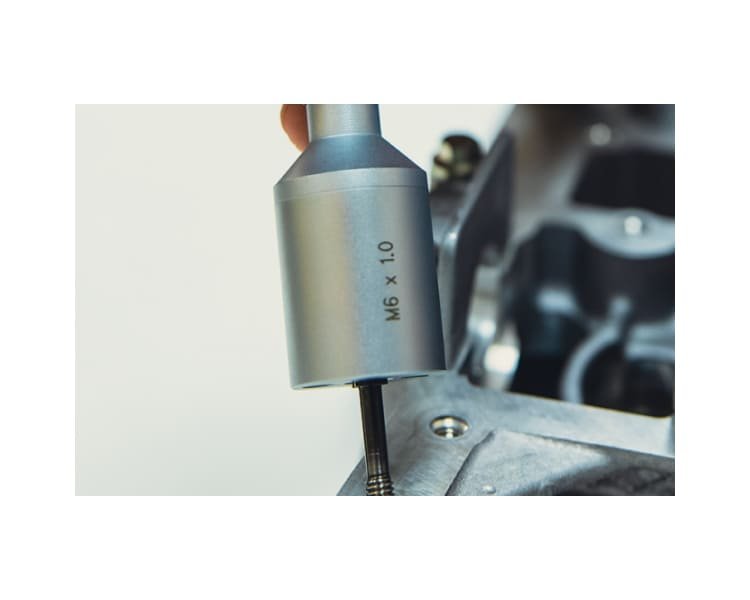

Very rapid measurement of threads.

Reduce machining time by giving the operator an actual measurement when forming the thread.

Negates the need for many different hard gauges, incl. pre/post plate, pre/post H/T, different classes, etc.

Effective (Functional), Pitch & Major measurement.

Calibrate from thread rings (Plain ring for Major Diameter).

Rings marked with actual PD.

Enhanced Efficiency

Each of these application heads can be fitted directly to our Bluetooth.

Spesification

Product Code	Description	Price
THRH-M10X1.0	M10 X 1.0 Thread Measuring Head	POA
THRH-M10X1.25	M10 X 1.25 Thread Measuring Head	POA
THRH-M10X1.5	M10 X 1.5 Thread Measuring Head	POA
THRH-M12X1.0	M12 X 1.0 Thread Measuring Head	POA
THRH-M12X1.25	M12 X 1.25 Thread Measuring Head	POA
THRH-M12X1.5	M12 X 1.5 Thread Measuring Head	POA
THRH-M12X1.75	M12 X 1.75 Thread Measuring Head	POA
THRH-M14X1.5	M14 X 1.5 Thread Measuring Head	POA
THRH-M16X1.0	M16 X 1.0 Thread Measuring Head	POA
THRH-M16X1.5	M16 X 1.5 Thread Measuring Head	POA
THRH-M16X2.0	M16 X 2.0 Thread Measuring Head	POA
THRH-M18X1.25	M18 X 1.25 Thread Measuring Head	POA
THRH-M18X1.5	M18 X 1.5 Thread Measuring Head	POA
THRH-M20X1.0	M20 X 1.0 Thread Measuring Head	POA
THRH-M20X1.5	M20 X 1.5 Thread Measuring Head	POA
THRH-M20X2.5	M20 X 2.5 Thread Measuring Head	POA
THRH-M4X0.7	M4 X 0.7 Thread Measuring Head	POA
THRH-M5X0.8	M5 X 0.8 Thread Measuring Head	POA
THRH-M6X1.0	M6 X 1.0 Thread Measuring Head	POA
THRH-M8X1.25	M8 X 1.25 Thread Measuring Head	POA
THRH-1-12	1″ – 12 UN Thread Measuring Head	POA
THRH-1/4-20	1/4″ – 20 UN Thread Measuring Head	POA
THRH-3/4-16	3/4″ – 16 UN Thread Measuring Head	POA
THRH-5/16-24	5/16″ – 24 UN Thread Measuring Head	POA
THRH-5/8-11	5/8″ – 11 UN Thread Measuring Head	POA
THRH-5/8-18	5/8″ – 18 UN Thread Measuring Head	POA
THRH-7/16-20	7/16″ – 20 UN Thread Measuring Head	POA
THRH-9/16-18	9/16″ – 18 UN Thread Measuring Head	POA
