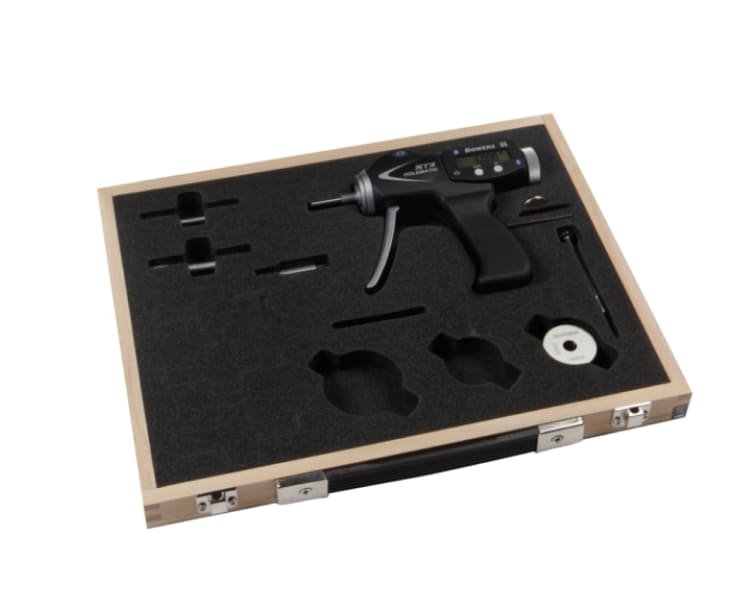

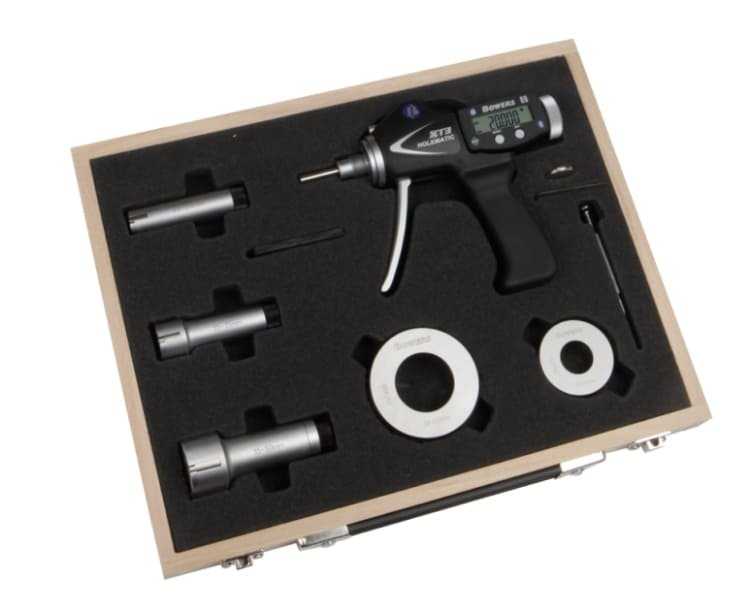

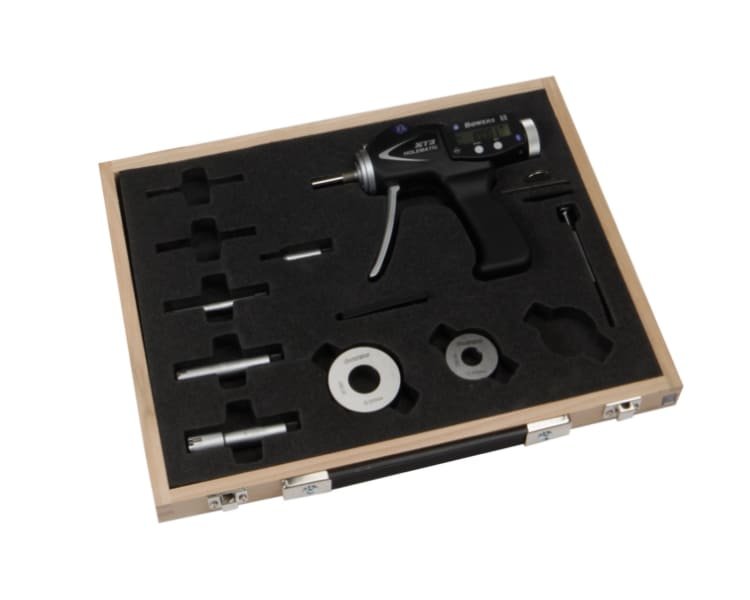

XT3 Digital Pistol Grip Bore Gauge Set With Bluetooth Metric Bowers

The XT3 Digital Pistol Grip Bore Gauge Set by Bowers features a new ergonomic design with a clear LCD display and IP67 electronics. This comprehensive set offers a range of 2-300mm, resolution of 0.001mm, optional Bluetooth, and comes with UKAS certified setting rings.

39 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

XT3 Digital Pistol GripBore Gauge Set With Bluetooth Metric Bowers

The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features

Tungsten carbide measuring faces on all 3-point heads from 12.5mm.

Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”).

Extensions available above 6mm for deep hole measurement.

Ratchet stop to ensure consistent measurement.

Setting rings included with individual instruments and sets.

UKAS certificates supplied as standard with all setting rings.

UKAS certificates supplied as standard with all gauges.

Serial number on all digital readouts and measuring heads.

Heads with special anvils available to suit specific customer requirements.

Bore gauges manufactured according to DIN 863, part 4.

Supplied in fitted wooden case.

Resolution 0.001mm/0.00005”.

2-6mm 2 point/ 6-300mm 3 point measurement.

Range 2-300mm (0.080”-12”).

RS-232C output.

Bi-directional communication.

Proximity output with optional built-in Bluetooth.

4 preset memories.

Simple 2-button operation.

IP67 electronics.

New ergonomic design with larger and clearer LCD display.

Spesification

Product Code	Range (mm)	Price
SXTH1M-BT	2-6	POA
SXTH3M-BT	6-10	POA
SXTH4M-BT	10-20	POA
SXTH5M-BT	20-50	POA
SXTH6M-BT	50-100	POA
SXTH7M-BT	100-150	POA
SXTH8M-BT	150-200	POA

Product Code	Range (mm)	Price
SXTH8M-BT	150-200	POA
SXTH7M-BT	100-150	POA
SXTH6M-BT	50-100	POA
SXTH5M-BT	20-50	POA
SXTH4M-BT	10-20	POA
SXTH3M-BT	6-10	POA
SXTH1M-BT	2-6	POA
