AIR1 & AIR2 Bowers

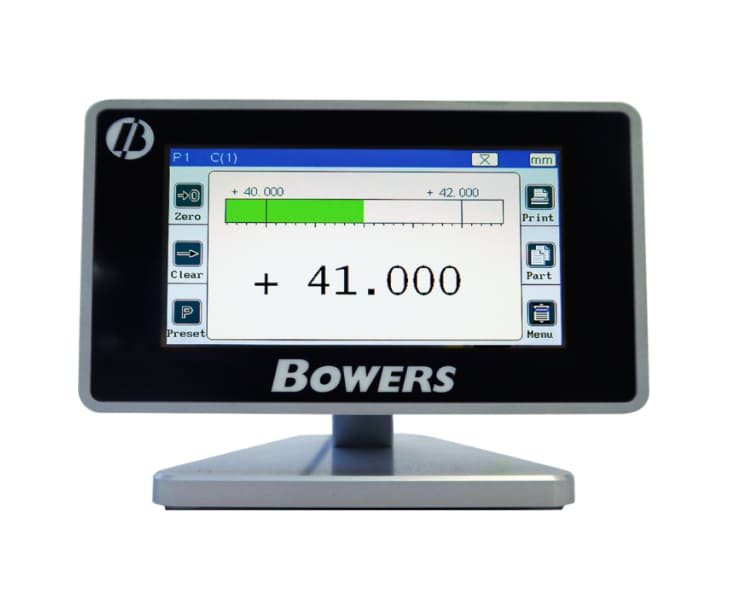

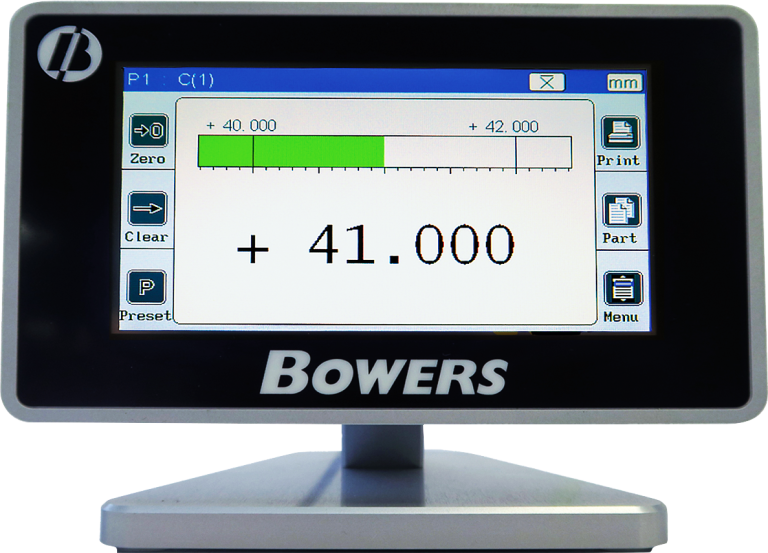

The AIR1 & AIR2 by Bowers feature a 4.3″ TFT color touchscreen display with dynamic measurement capabilities, supporting both analog and digital displays. With versatile connectivity options and precise measurement capabilities, it’s ideal for manufacturing industries seeking efficient measurement solutions.

32 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

AIR1 & AIR2 Bowers

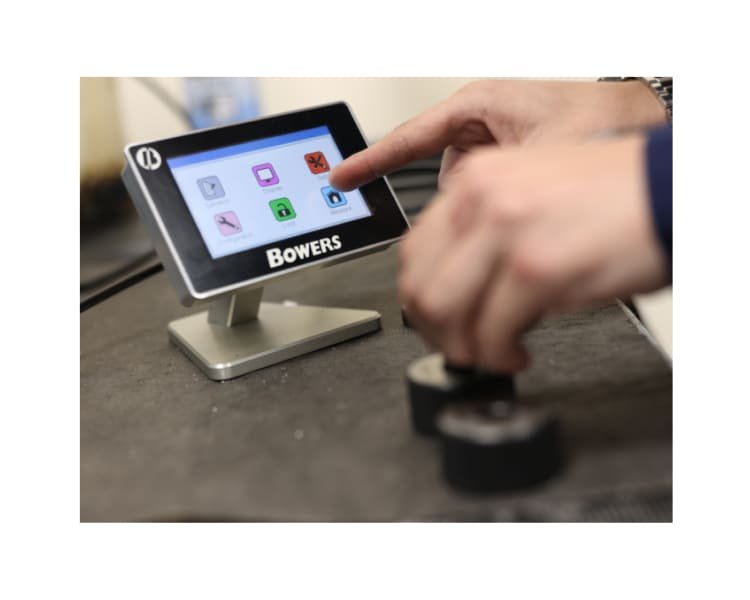

Air gauging on the shop floor is a simple yet robust method of measurement that offers a myriad of measurement capability but with the smallest of footprint in a busy crowded factory floor. The Bowers Air 1 (Single Channel) and Air 2 (Twin Channel) system boasts a user-friendly modern design and a touch screen for ease of use and readability.

Features

01

Static or dynamic measurements (Max, Min, MaxMin, Average, Median).

02

Analogue or digital display.

03

TFT colour touch screen display 4,3’’, resolution 480x272.

04

1 or 2 measurement configurations (2 characteristics).

05

Possibility to automatically select the characteristic by using the air gauge.

06

Relative or absolute display.

07

Display resolution (up to 0.1μm).

08

Metric (mm or μm) or Imperial (Inches) measurement or DMS.

09

Classification/Grading: Up to 16 classes with colour representation.

10

RS232 port for communication with a PC.

11

USB port for communication and/or power supply.

12

USB Stick for data saving on a CSV file.

13

Optional connection of M-Bus modules.

14

Measurement transfer by pressing a key, footswitch input.

15

Operating temperature: +15°C to +30°C.

11

USB port for communication and/or power supply.

12

USB Stick for data saving on a CSV file.

13

Optional connection of M-Bus modules.

14

Measurement transfer by pressing a key, footswitch input.

15

Operating temperature: +15°C to +30°C.

16

Relative humidity: maximum 80%.

17

Dimensions : width 130 mm, height 111 mm, depth 105 mm.

18

Working parameters set by QR Code Scanner.

19

Footpedal to make measurements quicker and easier.

20

Based on firmware 1.2 or later manufacturing industries..
