CV Instruments Instrumatic Inspex

Instrumatic CV Instruments, part of the Inspex line, provide precise and reliable measurement solutions. Renowned for their accuracy and versatility, these instruments are essential for various applications in industries such as manufacturing, engineering, and quality control.

9 people are viewing this product right now

🔥 4 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

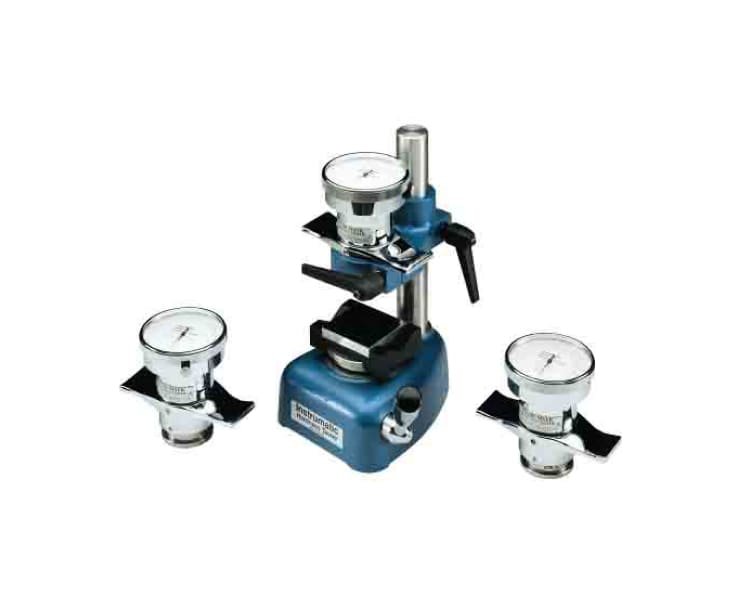

CV Instruments Instrumatic Inspex

Inspex Instrumatic is the basic line up of Bower which is developed for a fully mechanical instrument of the highest precision, robust, and free from normal maintenance The large clearly marked dials on these unique instruments cover a full range of hardness values in Vickers, Brinell, Rockwell A, B, C, and Kp/mm – covering the British, American and German specifications

Inspex Instrumatic Features

Operation and Use

The simplicity of the tester enables it to be used in almost any direction, (preferably vertically), without affecting accuracy. It can be used ‘on site’ with complete success. The grips are depressed to the fullest extent by using the palms of the hands and the hardness value can be read off the appropriate scale. Repeatability is excellent and the calibration can be checked by the user against a reference test block supplied with each instrument. Each tester is supplied complete in a case with detailed operating instructions.

Mechanical System

The system is entirely mechanical employing the use of special pre-loaded springs which provide a load of about 15kg to the diamond. Maximum penetration of the diamond into the specimen is 0.125mm (.005”).

Diamond Indenter

The instrument does not require any regular servicing. Should the diamond indenter become damaged, a new indenter can simply be fitted using the small tool supplied with the instrument.

Bench Stand

Bench stand with vee base for round parts, available as an option.
