Force Gauges FG-7000L Shimpo
The Shimpo FG-7000L Force Gauges offer precise and reliable measurements for tension and compression testing. With advanced features, user-friendly interface, and durable construction, they ensure high accuracy and performance in various industrial and technical applications.
14 people are viewing this product right now
🔥 12 items sold in last 3 hours
Force Gauges FG-7000L Shimpo

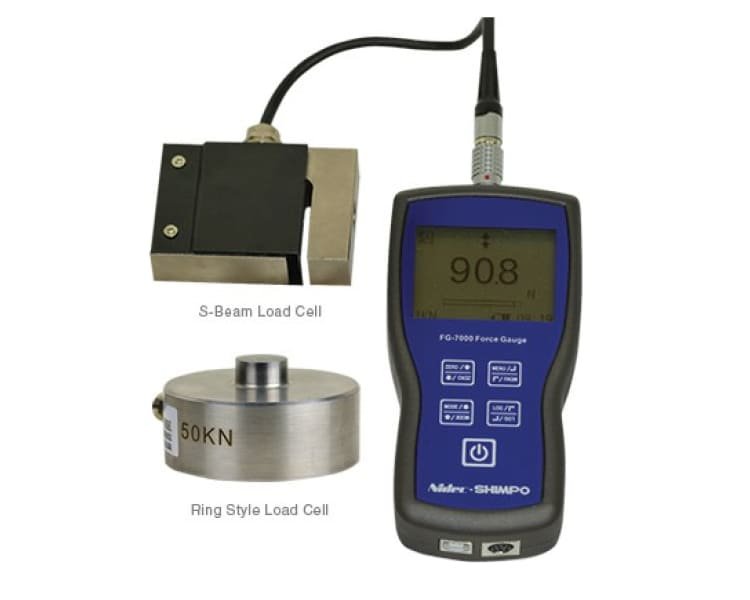

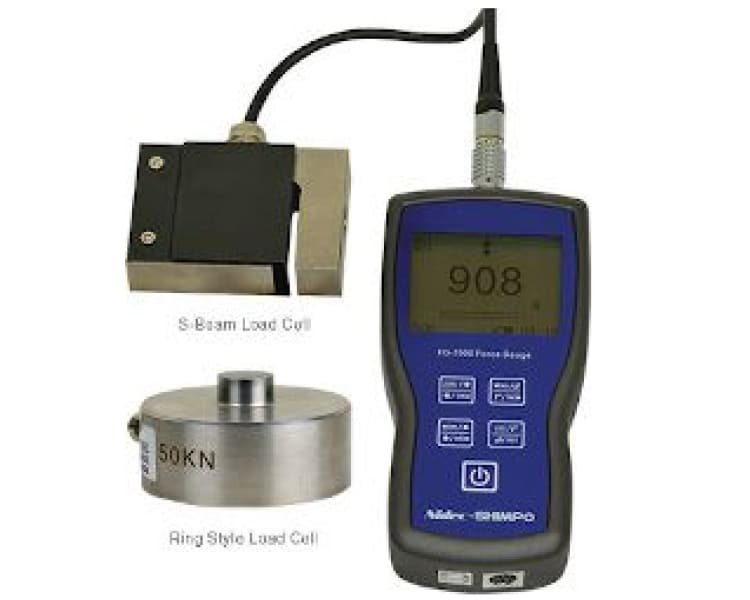

The FG-7000L Series digital force gauges offer versatile tension and compression testing with their external load cell input, which is recognized immediately when connected. They come with three types of load cells: 1. ‘S’ Beam for tension and compression (220 lbf to 4500 lbf). 2. ‘Ring’ type for compression (2250 lbf to 44,000 lbf). 3. ‘Mini Ring’ type for compression (220 lbf to 22,000 lbf).
Features

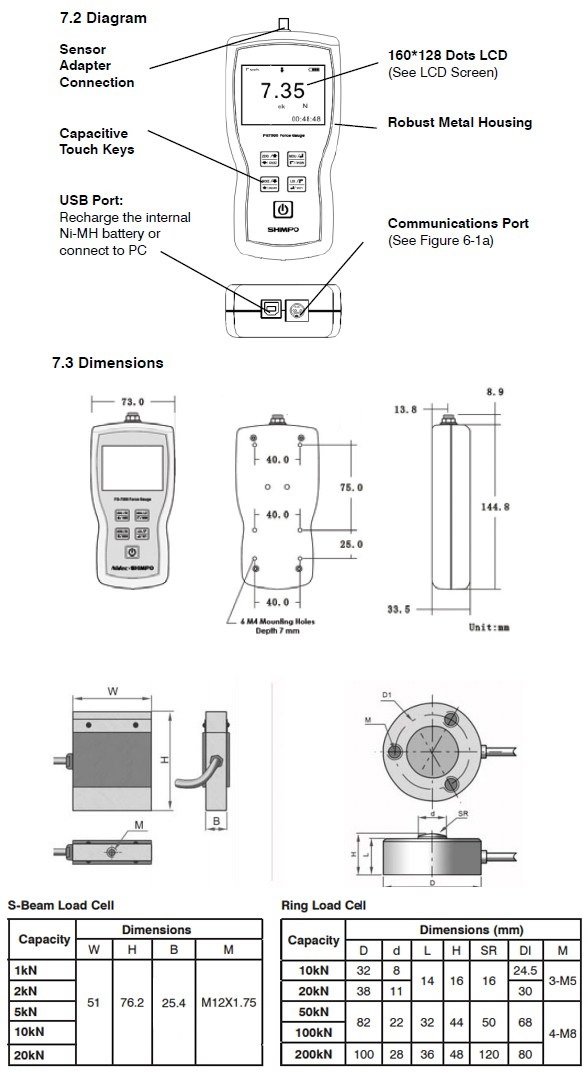

Dimensions
Complete Kit
Ranges
| Model Number | Description / Capacity |
|---|---|
| FG-7000L-S-1 | Digital Force Gauge with Remote S-Beam Load Cell 220 lb (1 kN) Capacity |
| FG-7000L-S-2 | Digital Force Gauge with Remote S-Beam Load Cell 450 lb (2 kN) Capacity |
| FG-7000L-S-5 | Digital Force Gauge with Remote S-Beam Load Cell 1100 lb (5 kN) Capacity |
| FG-7000L-S-10 | Digital Force Gauge with Remote S-Beam Load Cell 2250 lb (10 kN) Capacity |
| FG-7000L-S-20 | Digital Force Gauge with Remote S-Beam Load Cell 4500 lb (20 kN) Capacity |
| FG-7000L-R-10 | Digital Force Gauge with Remote Ring Type Load Cell 2250 lb (10 kN) Capacity |
| FG-7000L-R-20 | Digital Force Gauge with Remote Ring Type Load Cell 4500 lb (20 kN) Capacity |
| FG-7000L-R-50 | Digital Force Gauge with Remote Ring Type Load Cell 11 klb (50 kN) Capacity |
| FG-7000L-R-100 | Digital Force Gauge with Remote Ring Type Load Cell 22 klb (100 kN) Capacity |
| FG-7000L-R-200 | Digital Force Gauge with Remote Ring Type Load Cell 44 klb (200 kN) Capacity |
| FG-7000L-M-1 | Digital Force Gauge with Remote Mini Ring Load Cell 220 lb (1 kN) Capacity |
| FG-7000L-M-5 | Digital Force Gauge with Remote Mini Ring Load Cell 1100 lb (5 kN) Capacity |
| FG-7000L-M-10 | Digital Force Gauge with Remote Mini Ring Load Cell 2250 lb (10 kN) Capacity |
| FG-7000L-M-50 | Digital Force Gauge with Remote Min Ring Type Load Cell 11 klb (50 kN) Capacity |
| FG-7000L-M-100 | Digital Force Gauge with Remote Mini Ring Type Load Cell 22 klb (100 kN) Capacity |
Specifications
| Accuracy | ± 0.2% F.S. |
| Selectable Units | kN, N, kgf, tf, lbf and klbf. (Depending on Range) |
| Overload Capacity | S beam: 150% of F.S.; Ring & Mini Ring Type 120% of F.S. (LCD flashes beyond 110% of F.S.) |
| Measurement Method | Peak, Autopeak, First Peak or Track Mode |
| Data Sampling Rate | 1000 Hz |

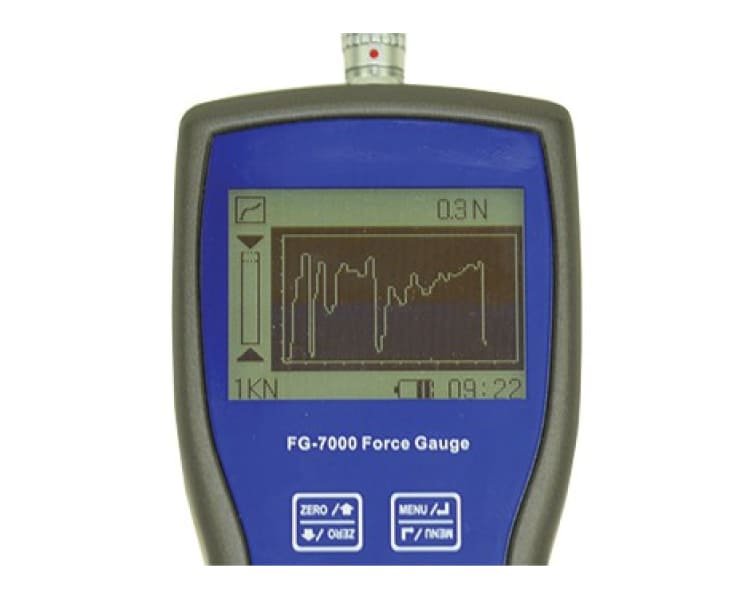

| Display | 160*128 dot matrix LCD with LED Backlight |
| Display Update Rate | 10 times/second |
| Resolution | See chart |
| Memory | 1000 data |
| Set Point | Programmable high and low limits |
| Battery Indicator | Display flashes battery icon when battery is low |
| Power | 3.6VDC 800mAH Ni-MH rechargeable batteries |
| Battery Life | Approximately 16 hours continuous use per full charge |
| Charger / Adaptor | Universal USB/BM charger, Input: 110 ~ 240VAC |
| Temperature Effects | <0.054% per °F (0.03% FS per °C) |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Storage Temperature | 5 to 95% |
| Housing | Aluminum |
| Outputs | USB,Serial Port RS-232, High & Low Limit NPN |
| Dimensions | 5.7 x 2.9 x 1.4˝ (145 x 73 x 35.5 mm) |
| Product Weight | 1.5 lb (0.7 kg) |
| Package Weight | 2.8 lb (1.3 kg) |
| Warranty | 1-Year |
| Certifications | CE |
| Included Accessories | AC Adapter/Charger, USB cable, calibration cert. , carrying case |
| Length of Cable to Loadcell | 3-meters (9.8″) from Gauge to Loadcell |
