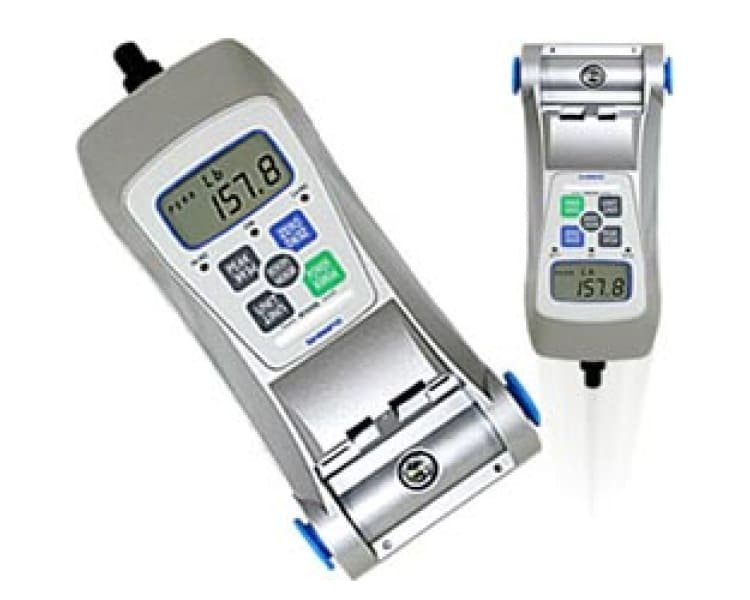

Force Gauges FGV-HXY Shimpo

The Series FGV-HXY Digital Force Gauges feature a durable housing suitable for high-capacity tension and compression applications, such as quality inspection, finished goods testing, and R&D. Available in 500 lb. and 1000 lb. ranges, these gauges include a 180° reversible display, adjustable force direction, and dual-labeled keypad for versatile use.

Features

User selection of engineering units (Lbs, Kf or Newtons) and User-set display update rate allows optimal setting for each type of test.

Operates using rechargeable battery or AC line voltage.

Quick retrieval of peak measurement with a single push button in test stand.

On board statistics provides immediate results and analysis of test data.

180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand.

High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor.

Measure and record compression and tension tests. Permits true "push-pull" testing.

Free Data logging/graphing software provided, sample rate up to 100 readings/sec.

Provide Built-In Hi-Lo Comparator function provides user with easy Go-No Go Testing

CE & RoHs Certified.

Include built-in datalogger with 3 outputs: USB, RS-232 & Analog Output.

Overview

Force Ranges

Model	Capacity	Resolution
FGV-500HXY	500 lb 250 kg 2500 N	0.1 lb 0.1 kg 1 N
FGV-1000HXY	1000 lb 453.6 kg 4448 N	0.1 lb 0.1 kg 1 N

Specifications

Accuracy	± 0.2% F.S.
Display	Four digit LCD, .47″ high (12 mm) with various indicators including tension and low battery indication (reversible) Minus sign for tension
Display Update Rate	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 Hz
Average/Peak Mode	Selectable
Overload Capacity	150% of F.S.
Data Output	USB, RS232 and Analog
Analog Output	± 1V DC (via 12-bit D/A converter), 100 Hz Frequency response
RS-232 Output	RS-232C, selectable baud rate of 2400, 4800, 9600, 19200 bps (8, N, 1)
Power	Rechargeable Ni-Cad batteries (included) or AC adapter/charger (included)
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Charge	17 hours (when fully charged)
Temperature Range	32 – 104 °F (0 – 40 °C)

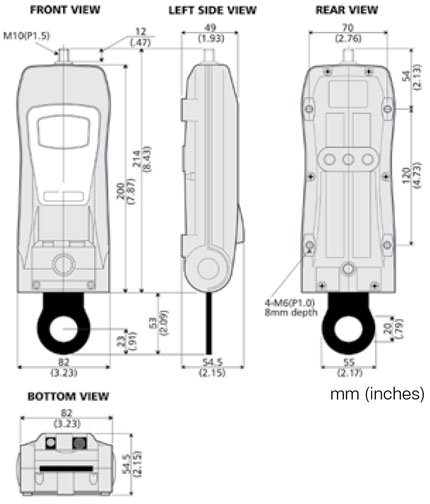

Dimensions	8.43″ x 3.23″ x 2.25″ (214 x 82 x 57 mm)
Product Weight	Approx. 2 lb (900 g) for 500 lb range; 2.65 lb (1.20 kg) for 1000 lb range
Package Weight	Approx. 7.45 lb (3.38 kg) for 500 lb range; 8.25 lb (3.74 kg) for 1000 lb range
Certification	CE, RoHs
Warranty	1 Year
International P/N	FGPX-H
