MICROGAUGE 2 Point Bore Gauging Individual Heads 1-10MM Bowers

The Microgauge 2 Point Bore Gauging Individual Heads by Bowers offers a system range of 1-10mm. Featuring a slimline digital display with switchable resolution, it ensures precise measurement with RS232/USB output and UKAS certification included.

13 people are viewing this product right now

🔥 11 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

MICROGAUGE 2 Point Bore Gauging Individual Heads 1-10MM Bowers

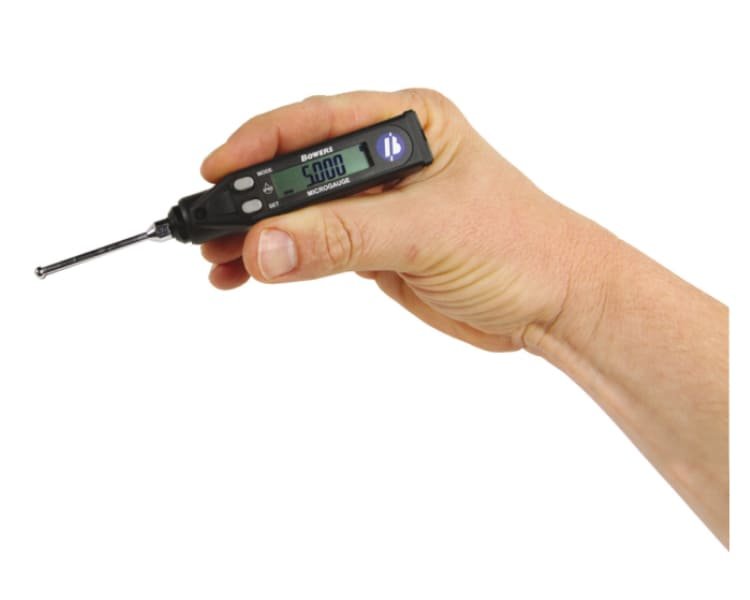

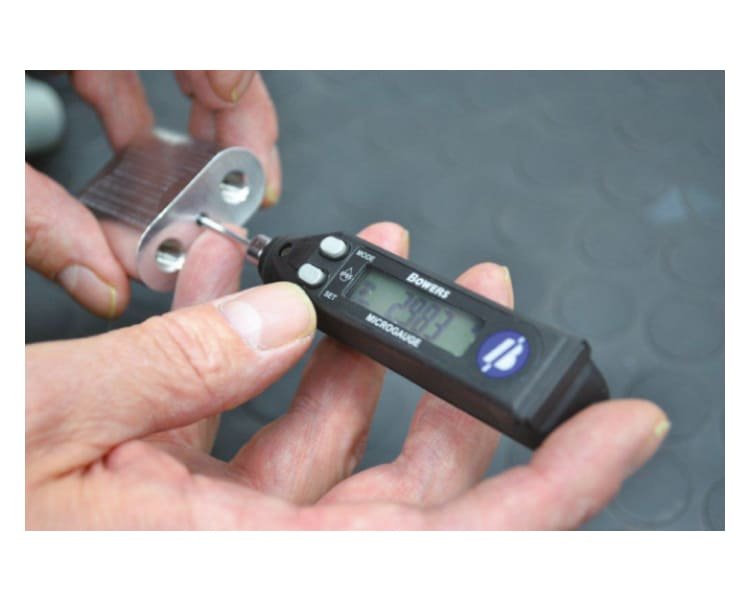

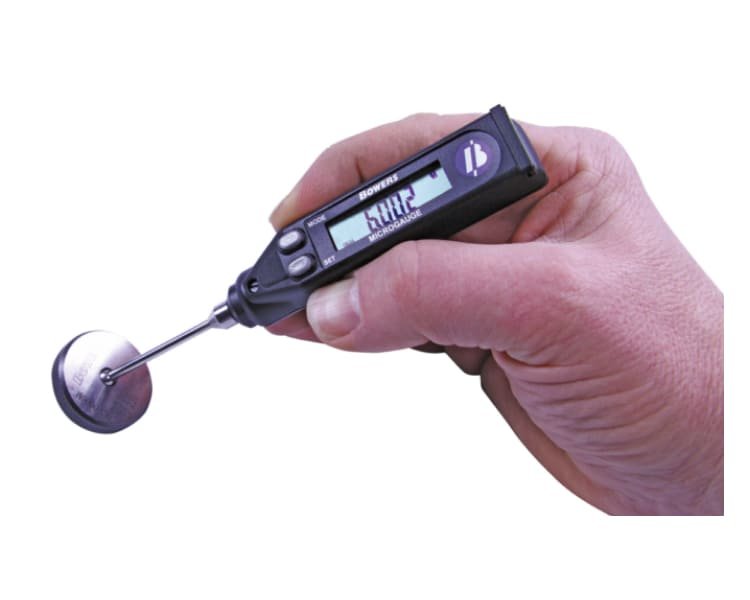

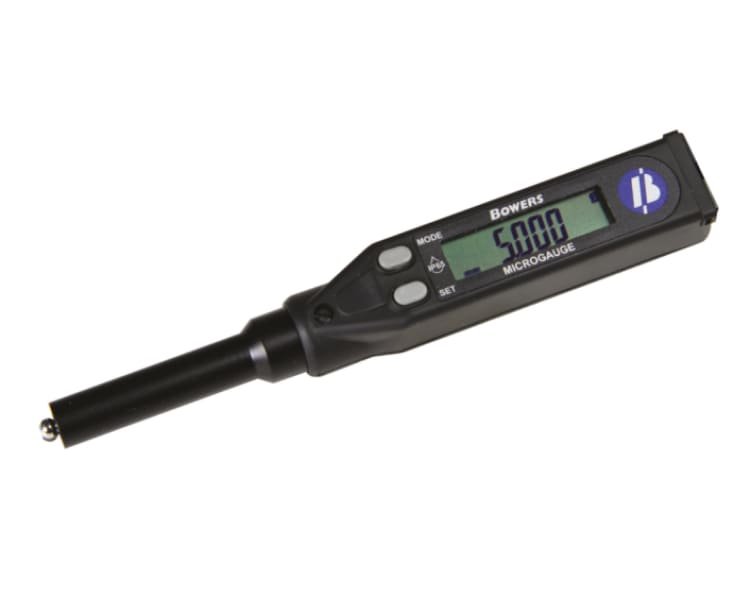

The MicroGauge is a pocket-sized instrument featuring a digital readout and compact dimensions similar to a ballpoint pen. Ideal for measuring small precision parts, it has a clear LCD display with switchable resolutions of 0.01/0.001/0.0005mm. Data transfer is facilitated via Proximity-RS232 or Proximity-USB output.

Features

Linearity: Diameter 1.0-1.5 max 2% of measuring travel, min 0.001mm.

System range: 1-10mm.

Slimline digital display.

Switchable resolution 0.01/0.001/0.0005mm.

Simple 2-button operation.

Clear LCD display.

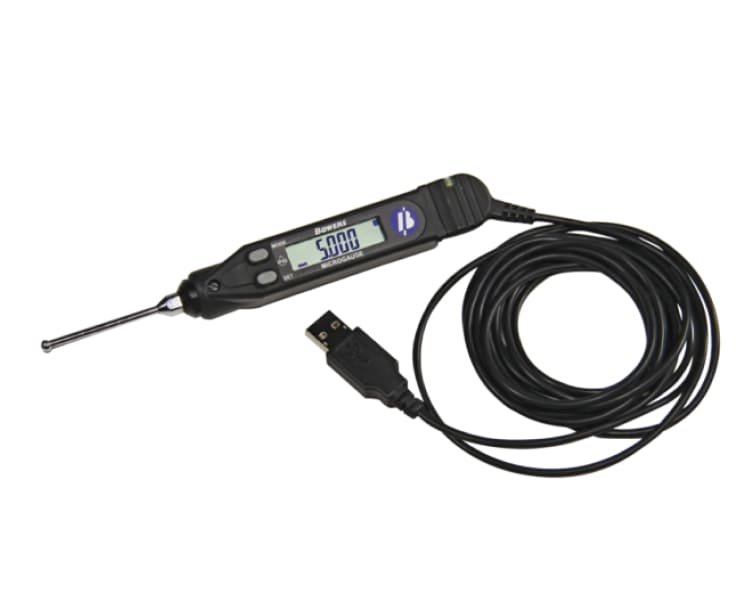

Data output: RS232 / USB proximity sensor.

Repeatability: 0.001mm.

Available as individual instruments or sets.

Hard-chromed ball-contacts.

Depth-stops available.

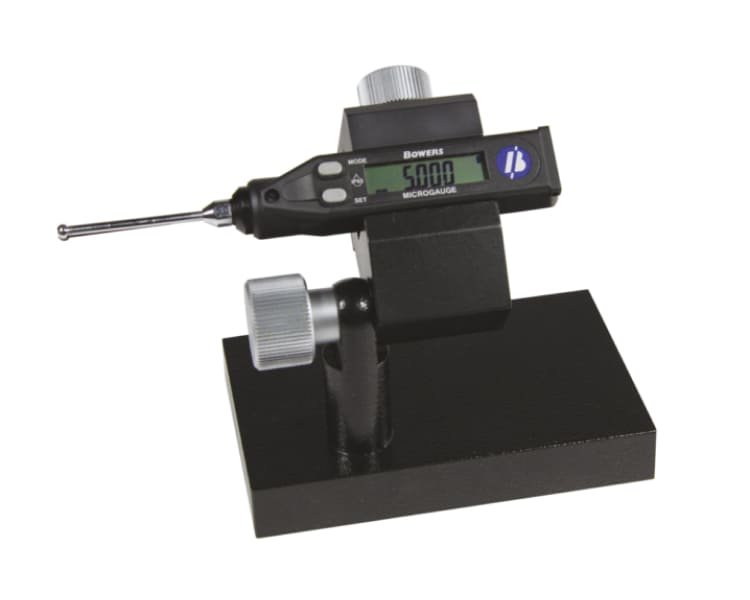

Stand available as an option.

Spesification

Product Code	Range (mm)	Range (inch)	Measuring Depth (mm)	Setting Ring (mm)	Price
MG011W	0.95-1.15	0.037-0.045	0.6-11	1.00	POA
MG012W	1.07-1.25	0.042-0.049	0.6-11	1.10	POA
MG013W	1.17-1.35	0.046-0.053	0.6-11	1.20	POA
MG014W	1.27-1.45	0.050-0.057	0.6-11	1.30	POA
MG015W	1.37-1.55	0.054-0.061	0.6-11	1.40	POA
MG016W	1.50-1.90	0.059-0.075	0.9-17	1.75	POA
MG017W	1.80-2.20	0.071-0.087	0.9-17	2.00	POA
MG018W	2.05-2.45	0.081-0.096	0.9-17	2.25	POA
MG019W	2.25-2.75	0.089-0.108	1.2-22	2.50	POA
MG020W	2.50-3.00	0.098-0.118	1.2-22	2.75	POA
MG021W	2.75-3.25	0.108-0.128	1.2-22	3.00	POA
MG022W	3.00-3.50	0.118-0.138	1.2-22	3.25	POA
MG023W	3.25-3.75	0.128-0.148	1.2-22	3.50	POA
MG024W	3.50-4.00	0.138-0.157	1.2-22	3.75	POA
MG025W	3.75-4.25	0.148-0.167	1.2-22	4.00	POA
MG026W	3.65-4.35	0.144-0.171	2.0-40	4.00	POA
MG027W	4.15-4.85	0.163-0.191	2.0-40	4.50	POA
MG028W	4.65-5.35	0.183-0.211	2.0-40	5.00	POA
MG029W	5.15-5.85	0.203-0.230	2.0-40	5.50	POA
MG030W	5.65-6.35	0.222-0.250	2.0-40	6.00	POA
MG031W	6.15-6.85	0.242-0.270	2.0-40	6.50	POA
MG032W	6.65-7.35	0.262-0.290	2.0-40	7.00	POA
MG033W	7.15-7.85	0.281-0.309	2.0-40	7.50	POA
MG034W	7.65-8.35	0.301-0.329	2.0-40	8.00	POA
MG035W	8.15-8.85	0.321-0.349	2.0-50	8.50	POA
MG036W	8.65-9.35	0.340-0.368	2.0-50	9.00	POA
MG037W	9.15-9.85	0.360-0.388	2.0-50	9.50	POA
MG038W	9.65-10.35	0.380-0.408	2.0-50	10.00	POA

Product Code	Range (mm)	Range (inch)	Measuring Depth (mm)	Setting Ring (mm)	Price
MG038W	9.65-10.35	0.380-0.408	2.0-50	10.00	POA
MG037W	9.15-9.85	0.360-0.388	2.0-50	9.50	POA
MG036W	8.65-9.35	0.340-0.368	2.0-50	9.00	POA
MG035W	8.15-8.85	0.321-0.349	2.0-50	8.50	POA
MG034W	7.65-8.35	0.301-0.329	2.0-40	8.00	POA
MG033W	7.15-7.85	0.281-0.309	2.0-40	7.50	POA
MG032W	6.65-7.35	0.262-0.290	2.0-40	7.00	POA
MG031W	6.15-6.85	0.242-0.270	2.0-40	6.50	POA
MG030W	5.65-6.35	0.222-0.250	2.0-40	6.00	POA
MG029W	5.15-5.85	0.203-0.230	2.0-40	5.50	POA
MG028W	4.65-5.35	0.183-0.211	2.0-40	5.00	POA
MG027W	4.15-4.85	0.163-0.191	2.0-40	4.50	POA
MG026W	3.65-4.35	0.144-0.171	2.0-40	4.00	POA
MG025W	3.75-4.25	0.148-0.167	1.2-22	4.00	POA
MG024W	3.50-4.00	0.138-0.157	1.2-22	3.75	POA
MG023W	3.25-3.75	0.128-0.148	1.2-22	3.50	POA
MG022W	3.00-3.50	0.118-0.138	1.2-22	3.25	POA
MG021W	2.75-3.25	0.108-0.128	1.2-22	3.00	POA
MG020W	2.50-3.00	0.098-0.118	1.2-22	2.75	POA
MG019W	2.25-2.75	0.089-0.108	1.2-22	2.50	POA
MG018W	2.05-2.45	0.081-0.096	0.9-17	2.25	POA
MG017W	1.80-2.20	0.071-0.087	0.9-17	2.00	POA
MG016W	1.50-1.90	0.059-0.075	0.9-17	1.75	POA
MG015W	1.37-1.55	0.054-0.061	0.6-11	1.40	POA
MG014W	1.27-1.45	0.050-0.057	0.6-11	1.30	POA
MG013W	1.17-1.35	0.046-0.053	0.6-11	1.20	POA
MG012W	1.07-1.25	0.042-0.049	0.6-11	1.10	POA
MG011W	0.95-1.15	0.037-0.045	0.6-11	1.00	POA
