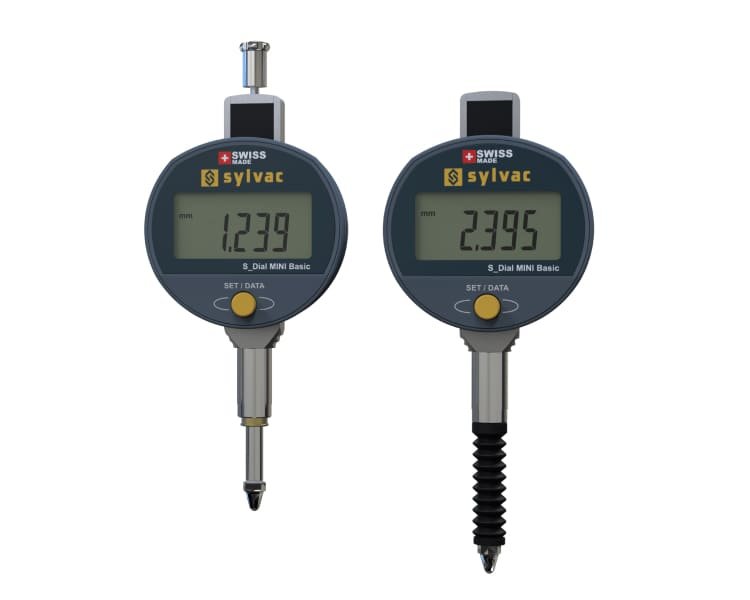

Mini Digital Indicator S_DIAL Mini Basic Sylvac
Seamless Integration: Effortlessly integrate our compact digital indicator into machines or fixtures, ideal for space-constrained environments. With its robust design and Ø 45 mm housing, it optimizes workflow efficiency.Efficiency Perfected: Enhance efficiency with preset recall and value transmission via a central button. Error-free operation is ensured through hidden setup, while automatic power shutdown prolongs battery life. Easily select mm/inch and measurement direction for accuracy.
45 people are viewing this product right now
🔥 4 items sold in last 3 hours
Mini Digital Indicator S_DIAL Mini Basic Sylvac
Our compact digital indicator, with a robust Ø 45 mm housing, integrates effortlessly into machines or fixtures, ideal for tight spaces. It enhances workflow efficiency with preset recall and value transmission via a central button, hidden setup, and automatic power shutdown.
Features
Overview
| 805-4121 | 805-4125 | 805-4521 | 805-4525 | |
| EAN | 7640125698275 | 7640125680881 | 7640125680904 | 7640125680911 |
| Measuring range (mm) | 12.5 | |||
| Analog scale | – | |||
| Resolution (mm) | 0.01 | 0.001 | ||
| Execution ³ | S | P | S | P |
| Max. Error fe (µm) | 10 ¹ | 4 | ||
| Repeatability (µm) | 2 | |||
| Measuring force ² (N) | 0.5 – 0.9 N | 0.6 – 1.3 N | 0.5 – 0.9 N | 0.6 – 1.3 N |
| Zero setting | ⬤ | |||
| Resolution selection | – | |||
| PRESET = (max. +999.99 mm) | ⬤ ⁴ | |||
| Min / max / delta display | – | |||
| Selection of measuring direction | ⬤ | |||
| Multiplication factor | – | |||
| Output data | USB / RS232 | |||
| IP rating | IP54 | IP67 | IP64 | IP67 |
| Measuring force | S | P |
| Standard | 0.5 – 0.90 N | 0.6 – 1.3 N |
| Low ⁵ | 0.35 – 0.50 N | – |
| High ⁵ | 1.80 – 2.3 N | – |
