DIGITAL TEST INDICATOR S DIAL TEST SMART 2

Digital Test Indicator S_DIAL Test Smart Sylvac

Portability and Versatility: Our test indicator, with a compact Ø 45 mm housing and a 270° rotatable display, offers convenient on-the-go measurements. Its integration capabilities ensure easy use on jigs, fixtures, and devices.
Seamless Data Acquisition: Integrated Bluetooth® enables wireless measurement transmission, ensuring quick and error-free data collection for enhanced productivity. RS232 output with external power support is also available.

25 people are viewing this product right now

🔥 5 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement, Micrometers

Estimated delivery:June 15, 2026 - June 17, 2026

Description

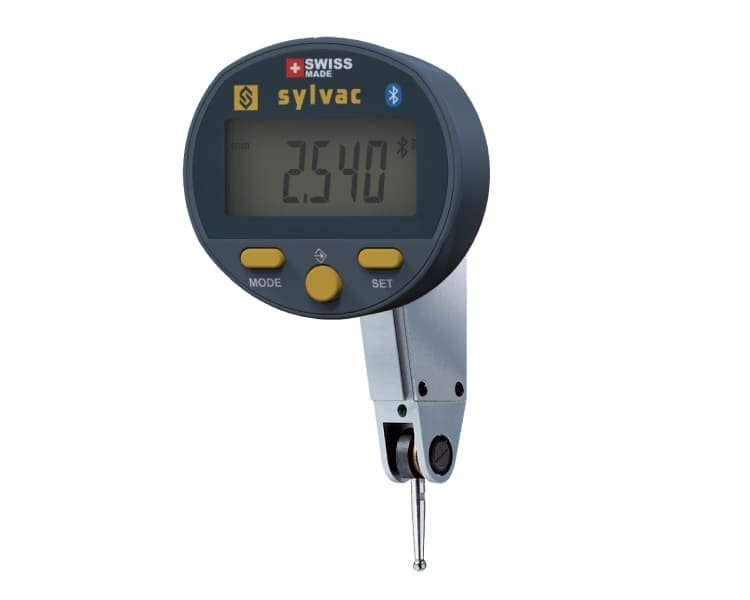

Digital Test Indicator S_DIAL Test Smart Sylvac

Our test indicator features a compact Ø 45 mm housing and a 270° rotatable display for convenient on-the-go measurements. It integrates easily with jigs, fixtures, and devices.

Features

Stylus Options and Measurement Range

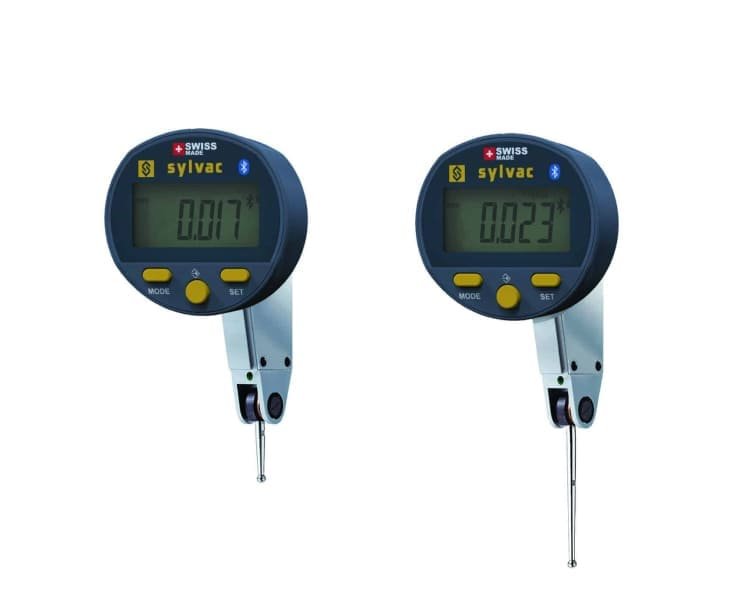

Choose from three versions, offering different stylus lengths and measurement ranges. Whether it’s a 12 mm stylus with a measuring range of 0.8 mm, a 36 mm stylus with a range of 2.0 mm.

Unmatched Precision and Accuracy

Achieve precise and accurate measurements with our test indicator. The digital display resolution of 0.001 mm, along with the analogue scale, provides detailed and reliable readings.

Seamless Data Acquisition

Equipped with integrated Bluetooth® technology, our digital test indicator enables wireless transmission of measurements, ensuring quick and error-free data acquisition for enhanced productivity.

User-Friendly Design

Enjoy a user-friendly experience with our test indicator. The easy-to-use interface and interchangeability of components make setup a breeze. The 270° turnable display ensures readability from any angle.

Resistant and Durable Construction

Designed to withstand challenging environments, our test indicator is water and coolant resistant with an IP54 rating. Revolutionary mechanical construction, without gears, eliminating hysteresis error.

Portability and Versatility

Our test indicator, designed to check roundness and flatness, features a compact housing of Ø 45 mm and a rotatable display by 270° for convenient on-the-go measurements.

Overview

	805-4321	805-4322	805-4323
EAN	7640125688931	7640125689204	7640125689235
Measurement capacity (mm)	0.8	2.0	0.8 / 2.0
Stylus length L (mm)	12.5	36.5	12.5 / 36.5
Accuracy fe (α=0°) (µm)	3	8	3 / 8
Total accuracy fges (α=0°) (µm)	4	10	4 / 10
Reversibility fu (µm)	2	3	2 / 3
Resolution	0.001 mm / .00005 IN
Repeatability fw (µm)	1
Measuring force (N)	0.15	0.06	0.15 / 0.06
Friction on probe orientation (N)	4	1.6	4 / 1.6
Weight (g)	70
Protection rating according to IEC 60529	IP54
Output data	Bluetooth® wireless technology / RS232 / USB
Zero setting	⬤
min / max / delta display	⬤
Analog display	⬤
Selection of resolution	⬤
Preset (0.01 resolution)	±99.999 mm / ±3.99995 IN (±999.99 mm / ±39.9995 IN)
