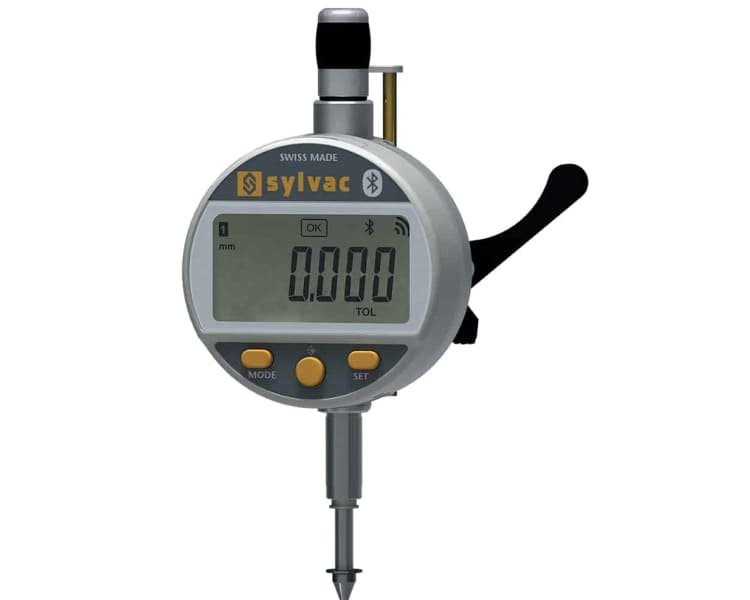

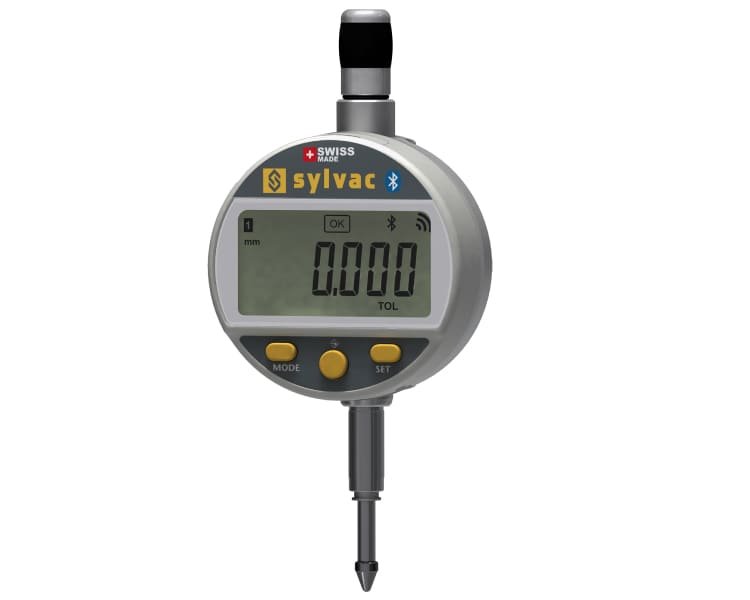

Digital Indicator S_DIAL Work Smart Sylvac
Efficient Readings: The large display and LED status indication enable swift and precise decision-making, supported by resolutions of 0.01 mm or 0.001 mm. Battery-Free Operation: Utilize “Proximity” and “Power” data outputs for uninterrupted functionality. Seamless Data Transmission: Integrated Bluetooth® Smart ensures fast and error-free wireless measurement transmission. Durable Design: With IP54 protection, this indicator resists water and coolant damage.
21 people are viewing this product right now
🔥 11 items sold in last 3 hours
Digital Indicator S_DIAL Work Smart Sylvac
The large display and LED status indication enable swift, precise readings with 0.01 mm or 0.001 mm resolution. Battery-free operation uses “Proximity” and “Power” data outputs for uninterrupted functionality.
Features
Overview
| 805-6301 | 805-6501 | 805-6621 | 805-6661 | |
| EAN | 7640125697612 | 7640125697636 | 7640125697667 | 7640125697674 |
| Measuring range (mm) | 12.5 | 25 | 50 | 100 |
| Resolution (mm) | 0.001 | |||
| Max. Error fe (µm) | 3 | 4 | 5 | 6 |
| Repeatability (µm) | 2 | |||
| IP rating | IP54 | |||
| A (mm) | 56.7 | 69.4 | 121 | 172 |
| B (mm) | 66.1 | 78.5 | 142 | 244 |
| C (mm) | 50.5 | 50.5 | 88 | 139 |
| D (mm) | 36.6 | 49.4 | – | – |
| Output data | Bluetooth® wireless technology / USB / RS232 | |||
| Programmable by PC | ⬤ | |||
| Standard functions (customized by PC) | mm/inch, ref I/II, preset (max 999.999) min/max/delta, toleances, resolution, direction of measurement, multiplication factor, automatic or manual switch off, key lock | |||
| Measuring Force | 12.5 | 25 | 50 | 100 |
| Standard (N) | 0.65 – 0.9 | 0.65 – 1.15 | 1.1 – 2.6 | 1.8 – 3.8 |
| Low ¹ (N) | 0.4 – 0.55 | 0.45 – 0.9 | – | – |
| High ¹ (N) | 1.0 – 1.6 | 0.9 – 1.8 | – | – |
