Mini Digital Indicator S_DIAL Mini Smart Sylvac

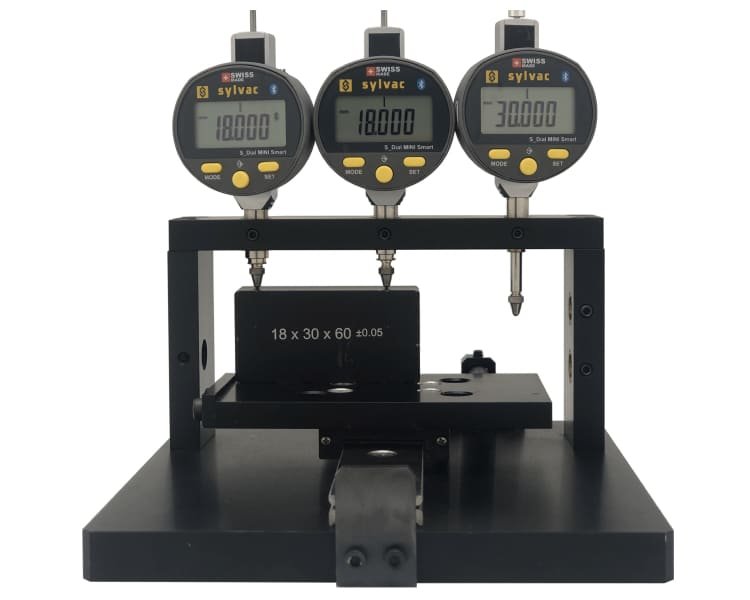

Seamless Integration: Effortlessly integrate our compact digital indicator into machines or fixtures, optimizing workflow in space-constrained environments. Equipped with integrated Bluetooth® technology, it enables wireless data transmission for enhanced productivity. Efficiency Perfected: Achieve optimal efficiency with preset recall and value transmission via a central button.
33 people are viewing this product right now
🔥 9 items sold in last 3 hours

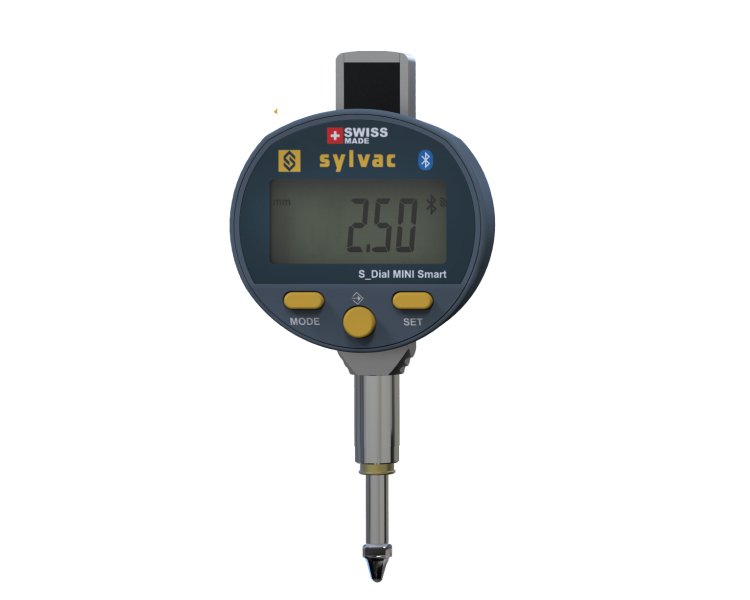

Mini Digital Indicator S_DIAL Mini Smart Sylvac
Our compact digital indicator seamlessly integrates into machines or fixtures, optimizing workflow in tight spaces. Integrated Bluetooth® technology enables wireless data transmission for enhanced productivity.
Features
Overview
| 805-6121 | 805-6123 | 805-6125 | 805-6521 | 805-6523 | 805-6525 | |
| EAN | 7640125680966 | 7640125687996 | 7640125680997 | 7640125681109 | 7640125688016 | 7640125681116 |
| Measuring range (mm) | 12.5 | |||||
| Analog scale | ⬤ | |||||
| Resolution (mm) | 0.01 | 0.001 | ||||
| Execution ³ | S | S | P | S | S | P |
| Max. Error fe (µm) | 10 ¹ | 4 | ||||
| Repeatability (µm) | 2 | |||||
| Measuring force ² (N) | 0.5 – 0.9 N | 0.6 – 1.3 N | 0.5 – 0.9 N | 0.6 – 1.3 N | ||
| Lifting cap | ⬤ | ⬤ | ||||
| Zero setting | ⬤ | |||||
| Resolution selection | ⬤ | |||||
| PRESET = (max. +999.99 mm) | ⬤ | |||||
| Min / max / delta display | ⬤ | |||||
| Selection of measuring direction | ⬤ | |||||
| Multiplication factor | ⬤ | |||||
| Output data | Bluetooth® wireless technology / RS232 / USB | |||||
| IP rating | IP67 | |||||
| Measuring force | S | P |
| Standard | 0.50 – 0.90 N | 0.60 – 1.30 N |
| Low ¹ | 0.35 – 0.50 N | – |
| High ¹ | 1.80 – 2.30 N | – |
