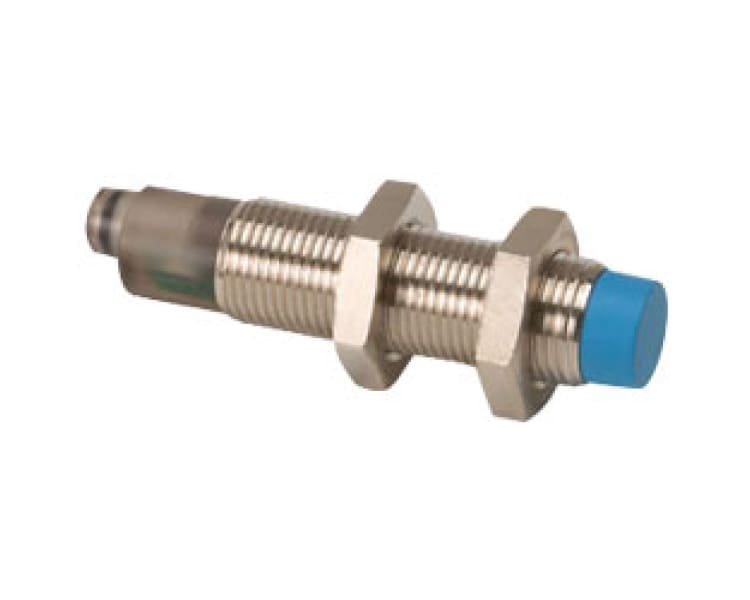

Proximity Sensors BI2-S12 Shimpo
The Shimpo BI2-S12 Proximity Sensor offers NPN (NO) sinking output with a 1.5 kHz frequency for reliable detection. Featuring LED indication, a 6.5-foot cable, and a 0.08″ (2 mm) sensing distance, it’s rated NEMA 6 (IP67) for durability.
38 people are viewing this product right now
🔥 12 items sold in last 3 hours
Proximity Sensors BI2-S12 Shimpo
Model B12-S12 is a three wire DC normally open NPN (sinking) type proximity switch which features:Short circuit and overload protection LED output indicator
NEMA 1, 3, 4, 6, 13 and IEC IP67 ratedUse 4.7 kñ pull-up resistors if an open collector input is not available
Features
Specifications
| Power | 10 – 30VDC (Positive) |
| Switching Frequency | 1.5k HZ max |
| Sensing Distance | 2 mm |
| Cable Length | 2 meters |
| Operating Temperature | – 25 to + 70 °C (-13 to 158 °F) |
