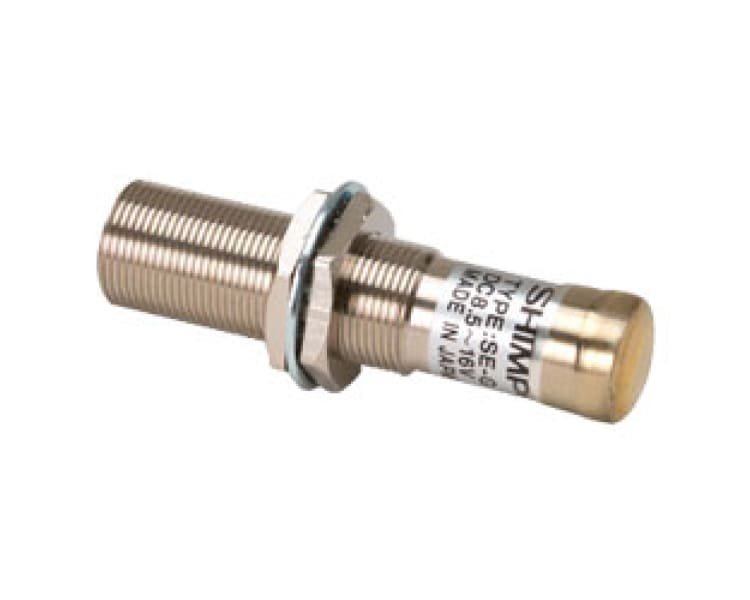

Proximity Sensors SE-G2 Shimpo
The Shimpo SE-G2 Proximity Sensor offers a square wave output and operates at a high 8 kHz frequency for rapid detection. Features include a 0.04″ (1 mm) sensing distance, LED indication for operational status, and an 18-inch cable, ideal for precise proximity tasks.
41 people are viewing this product right now
🔥 4 items sold in last 3 hours
Proximity Sensors SE-G2 Shimpo
The SE-G2 (formerly SE-G) is a solid state proximity switch designed for gear sensing. The SE-G2 gear sensor will provide a square wave signal output and indicate detection via LED indicator on rear of unit. Maximum switching frequency is 8 kHz with a maximum sensing distance of 1.0 mm, gear pitch must be between 25.4 (min) and 16.93 (max).
Features
Specifications
| Power (VCC) | + 8.5v – 16 VDC |
| Sink Current | 40 mA maximum |
| Output Signal High Level | (VCC – 1.1) ± 10% |
| Output Signal Low Level | 0.4v or less |
| Output Power | 50 mA |
| Duty Cycle | 25 – 75% |
| Output Impedance | 2.2 kΩ |
| Operating Temperature | -4 – 158 °F (-20 – 70 °C) |
