Stroboscopes DT-315AEB Shimpo
The Shimpo DT-315AEB Stroboscope offers exceptional accuracy and stability with adjustable flash rates. Featuring external trigger input and synchronizing pulse output, it ensures precise synchronization. With an LED display, phase shift, and intuitive controls, it facilitates error-free readings and flash photography.
9 people are viewing this product right now
🔥 9 items sold in last 3 hours
Stroboscopes DT-315AEB Shimpo

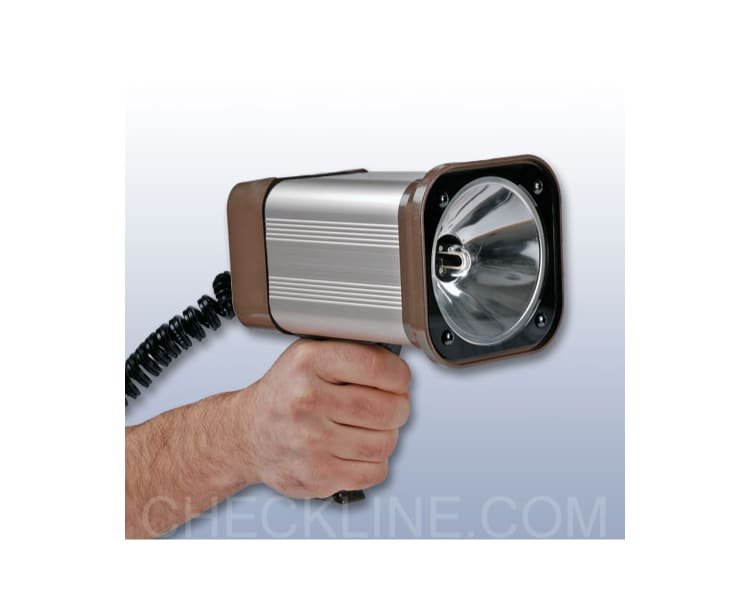

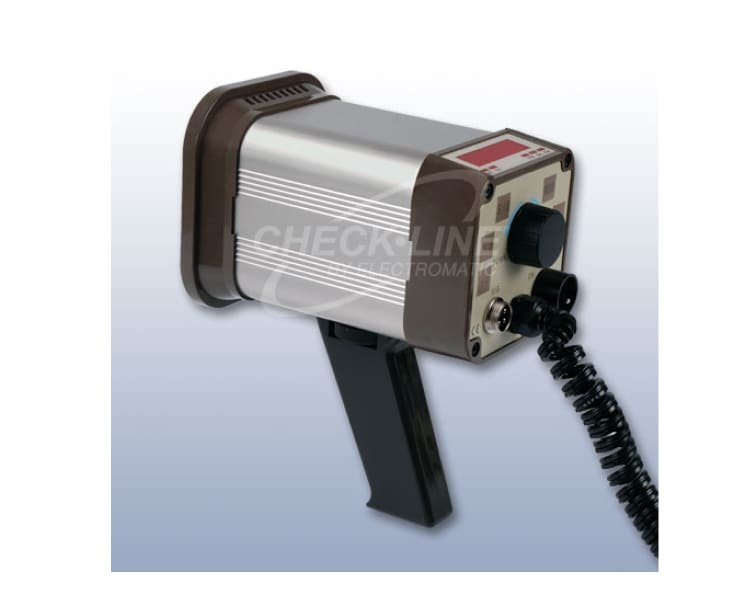

The Shimpo DT-315AEB Stroboscope is a high-precision, handheld device designed for inspecting and analyzing machinery motion. Ideal for industrial applications, it offers accurate speed measurements, bright LED illumination, and easy-to-use controls for reliable performance in various environments.
Features

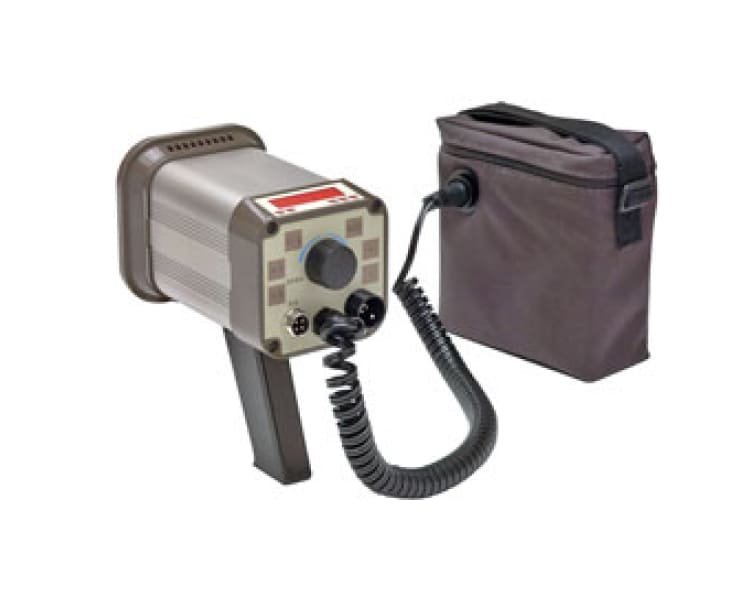

Optional Carrying Case

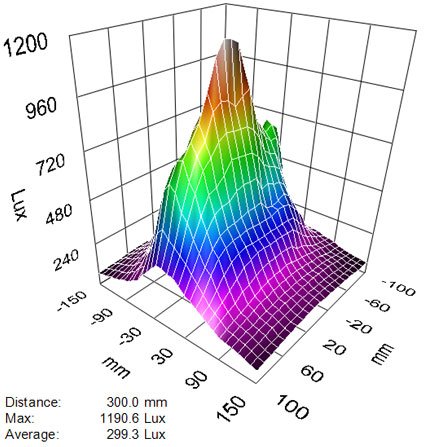

Light Output (LUX) vs Distance
Specifications
| Flash Range | 40-35,000 FPM |
| Accuracy | Internal Mode: ±0.01% of reading External Mode: ±0.01% or ± 1 digit |
| Resolution | 0.1 FPM: 40.0 – 4,999.9 FPM 0.2 FPM: 5,000 – 7,999.8 FPM 0.5 FPM: 8,000 – 9,999.5 FPM 1 FPM: 10,000 – 35,000 FPM |
| Drift | ±0.01% per °C |
| Update Time | Internal Mode: 0.2 seconds External Mode: ±0.01% or ± 1 digit |
| Input Signal | LO level: 0-0.4 VDC HI level: 2.5 – 12 VDC — or open collector (npn) pulse width 50us min |
| Output Signal | Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance |
| Display & Rate | Divide or multiply by 2, selectable |
| Operating Temperature | 32-104 °F (0-40 °C) |

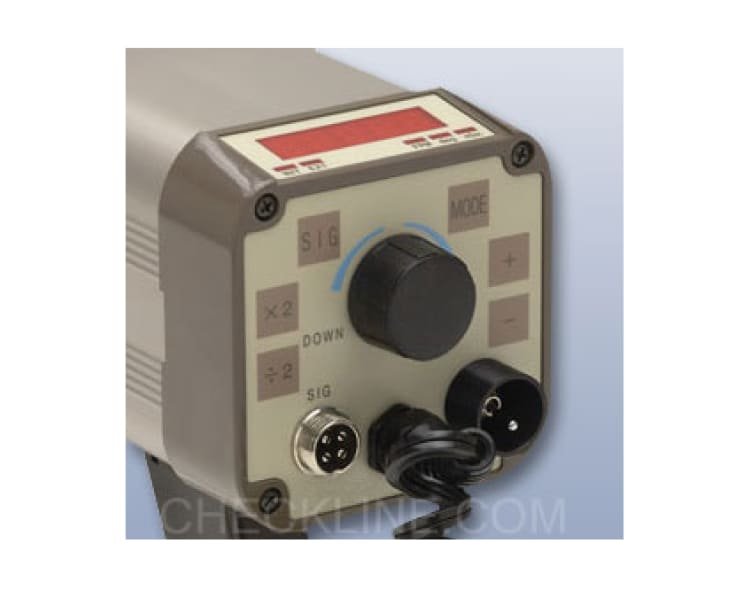

| Display | 5 digits, 10 mm high, red LED |
| Flashtube | Xenon, 10 W maximum |
| Flash Duration | 10-30 µs |
| Sensor Power Supply | 12 VDC ± 0.5V (50ma) |

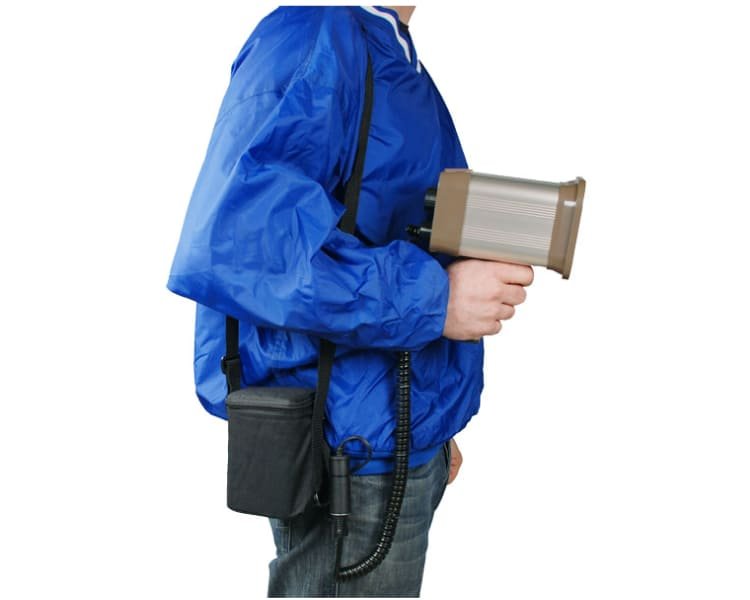

| Power Requirements | External Rechargeable 12 V battery Includes Battery Charger 115V AC (DT-315AEB) or 230V AC (DT-315AEB-2) |
| Weight | 4.4 lbs. (2 kg) |
| Dimensions | 4.7 x 5.6 x 9.7″ (120 x 141 x 248 mm) |
| Warranty | 2 Years |
| EXTERNAL MODE ONLY | |
| Phase Shift | 0 – 359° with 1° resolution or 0 – 333 ms from 200 – 3,000 FPM |
| Input Impedance | 10,000 ohms |
