Stroboscopes DT-315P Shimpo
The Shimpo DT-315P Stroboscope provides reliable stroboscopic lighting for industrial applications. With adjustable flash rates and a compact design, it offers convenient operation and precise synchronization, aiding inspection and analysis in machinery and production processes.
43 people are viewing this product right now
🔥 11 items sold in last 3 hours

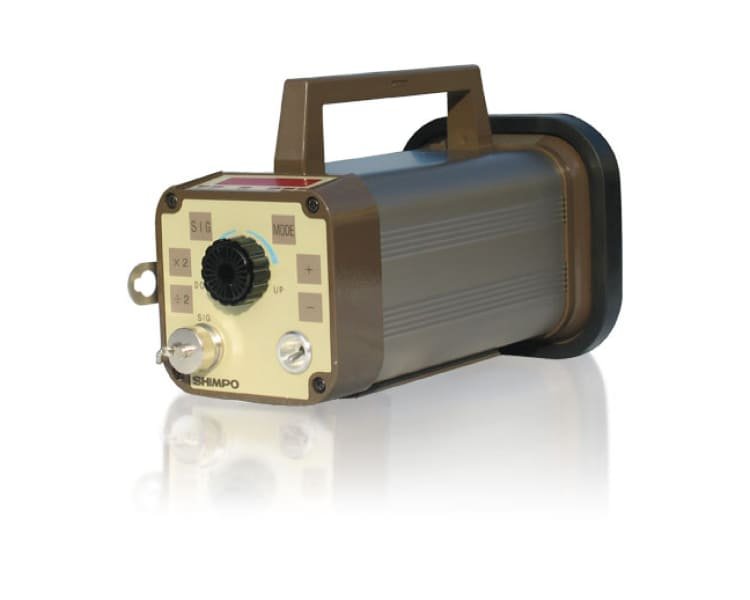

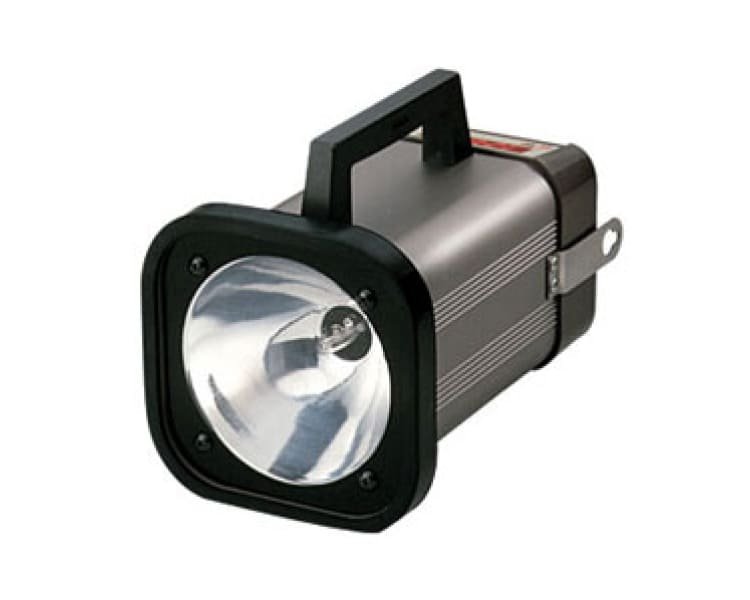

Stroboscopes DT-315P Shimpo

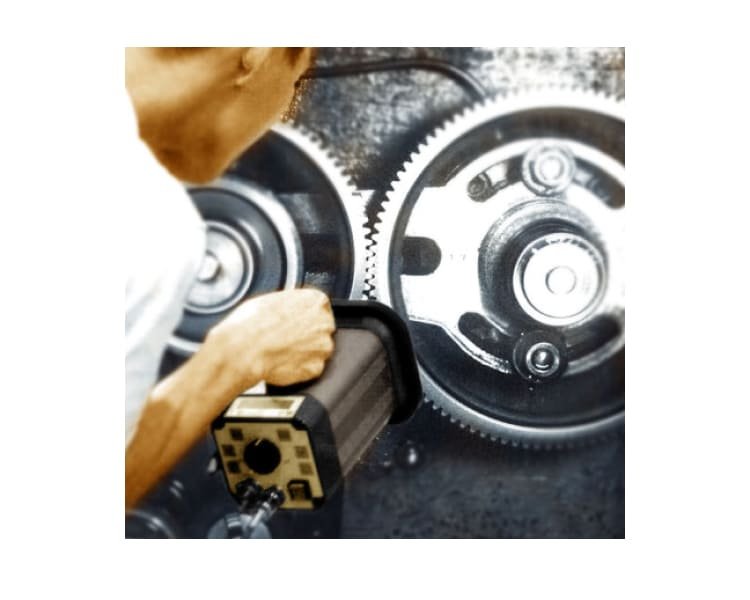

The DT-315P Battery Powered, NEMA 4X Stroboscope for Harsh Applications. The DT-315P is a rugged, sealed NEMA 4X (IP65) Stroboscope suitable for working in areas without AC power. The DT-315P works just like the DT-315A battery operated strobe. Equipped with Phase shifting in angle of delay (0-359 degrees) and flash time delay, (0-300 mSEC) the DT-315P is engineered for checking timing and wear on rotating and reciprocating machinery.
Features
Specifications
| Display | 5 digit, 7 segment red LED (Character height 10mm) |
| Flashtube | Xenon lamp TFU-100B-A32 |
| Flashtube Power | Max. 10W |
| Flashing Time | Approx. 30 µ sec |
| Power | Battery: Nicd battery, 8KR – 2000 sce SANYO, Operating time: Approx. 1 hour (full charge at 3000 FPM); Battery Charge Time: Approx. 10 hours Do not operate over 10 hours continuously External power: Disconnect the built-in battery before operating instrument by external power) DC9 14.5V, Max. 24W (current consumption is 24W/input voltage) or operate by provided adapter; AC115V 10%, 50/60 Hz Max. 40VA |
| Operating Temperature | 32 to 104 ° F (0 to 40 °C) |
| Power Requirement | Power Plug & Cable for Recharging Battery Included |
| Dimensions | 5.11″ W x 6.22″ H x 10.20″ L (130 W x 158 H x 259 L mm) |
| Weight | 4.6 lbs (2.1 kg) |
| Warranty | 2 Years |
| Included Accessories | Input/Output signal plug, rechargeable battery with AC adapter, protective case |
| Internal Mode | |
|---|---|
| Flashing Range | 60.0 ~ 3,000 FPM |
| Display Accuracy | ±0.01% |
| Drift | ± 0.01 (at 0 ~ 40 °C) |
| Phase Shift | Use +/- push buttons (360° in 6 seconds) |
| Display Update Time | 0.2 sec approx |
| Output Signal | Approx. 12V |
| Other Functions | ÷2. x2 Flashings, Phase shift adjustment |
| External Mode | |
| Flashings | Synchronous Mode: 60.0 ~ 3,000FPM Delay mode: 200 ~ 3,000 FPM |
| Delay Angle Setting Range | Delay Mode: 0 ~ 359°, Set by 1° |
| Display | RPM, Synchronous mode: 60.0 ~ 3000FPM Delay Angle, Delay mode: 0 ~ 359° or 0 ~ 300mS conversion display |
| Display Accuracy | Synchronous mode: ± 0.01% plus ± 1 digit Delay mode:+ 0 -0.2mS plus ± 1 digit |
| Update Time | 1 per second |
| Input Signal | H Level:2.5 ~ 12V L level:0 ~ 0.4V 50 μs or over for H.L. level Trigger at rising edge Approx. 10Ω impedance |
| Sensor Power | Battery:6.8 ~ 11.0V Adapter:10.2 ~ 12.2V DC:9 ~ 14.5V : 7.8 ~ 14.1V Max. 40mA (including max 0.6V Ripple) |
| Setter | Flashing, Delay angle: Jog Shuttle Mode, Display Unit: Tact Switch |
