Stroboscopes DT-365 Shimpo

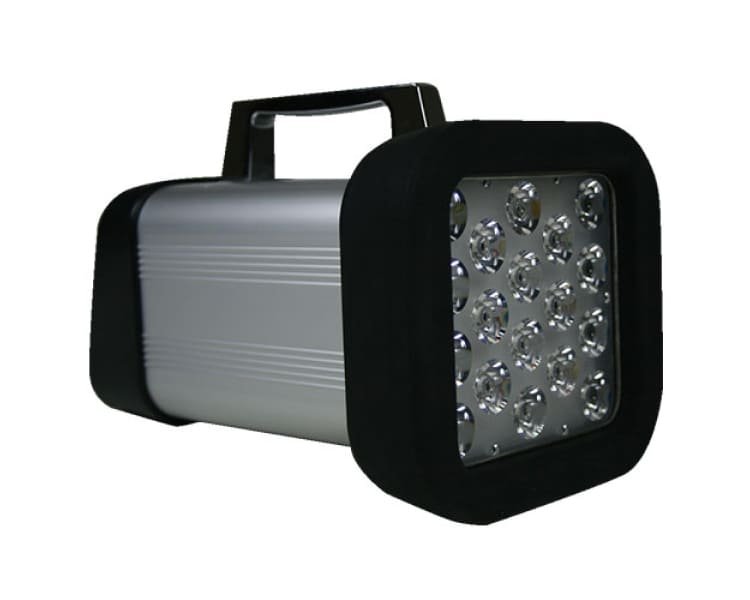

The Shimpo DT-365 Stroboscope is built with durable extruded aluminum (NEMA 4X/IP65), ensuring longevity. Its bright LED display, simple controls, and quick-charge NiMH rechargeable battery offer reliable operation. Featuring phase shift for visual analysis, flash controller dial for precise adjustments, and synchronization capability.
8 people are viewing this product right now
🔥 3 items sold in last 3 hours
Stroboscopes DT-365 Shimpo

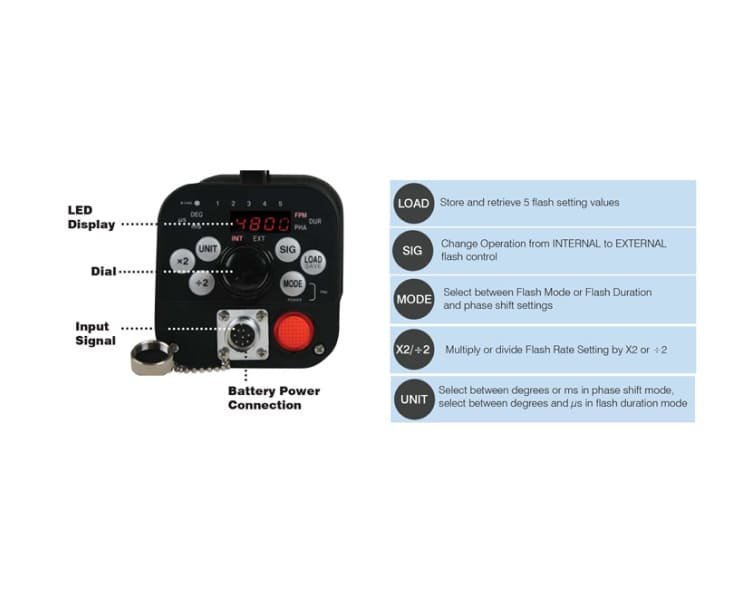

The DT-365 and DT-365E are high-intensity, battery-powered LED stroboscopes designed for machinery process inspection. They create the illusion of slowed or frozen images by flashing LED lights in sync with the machinery, aiding in defect detection and preventative maintenance. The LED technology ensures brighter light output and longer operation compared to xenon stroboscopes. The stroboscopes feature a red LED display, easy-to-use controls, adjustable flash rate, and flash duration for enhanced clarity.
Features
Specifications
| Range FPM (RPM) | 60 – 120,000; From Input Signal 40 – 35,000 |
| Accuracy | ±0.02% of reading |
| Lux Rating (Approx.) | 6000 FPM & 3.6° (100 µs): Distance 8″ (20 cm) 18,400 lx with 10″ (250 mm) irradiation dia., Distance 20″ (50 cm) 6200 lx with 13.5″ (350 mm) irradiation dia. 1500 FPM & 3.6° (400 µs): Distance 8″ (20 cm) 15,000 lx with 10″ (250 mm) irradiation dia., Distance 20″ (50 cm) 6000 lx with 13.5″ (350 mm) irradiation dia. |
| Lamp Lifetime | Typ. 50,000 hours. Varies depending on usage. |
| Display | 6 digit Red LED |
| Resolution | Internal Mode 1 FPM. External Mode 0.1 FPM |
| Flash Duration | 0.1 to 3.6° (0.14 µsec to 400 µsec) |
| Phase Shift | 0 to 999 msec; 0 to 359° |
| Power Requirement | 100 to 230 VAC to included AC power adapter |
| Battery | NiMH battery requires approximate 2.5 hour recharge time |
| Battery Life | Approx. 2 hrs. with flash duration set to 3.6° & 5 hrs. with duration set to 1.0° |
| Synchronization Input Signal | H level: 2.5 – 12V; L level: 0 – 0.4V |
| Input Signal Range FPM (RPM) | 40 – 35,000 |
| Input Signal Flash Delay FPM (RPM) | 60 – 10,000 |
| Input Signal | 12V pulse input |
| Power Supply Output | DC12V 40mA for sensor input |
| Temperature Limits | 32 to 95°F (0 to 35°C) |
| Humidity Limits | 35 to 85% RH |
| Protection Class | NEMA 4X (IP65) |
| Product Weight | 4.6 lbs (2.1 kg) |
| Approvals | RoHs |
| Warranty | 2 years |
| Included Accessories | AC power adapter, Input signal connector, flash-light style attachable handle |
