MOORE AND WRIGHT TRADITIONAL DEPTH GAUGE IMPERIAL 1 (2)

Traditional Depth Gauge Imperial Moore & Wright

Moore & Wright’s Traditional Depth Gauge Imperial. Choose between a reversible base or protractor option. Enjoy full-range rule adjustment and readings fixed with a locknut. The rules are graduated on both sides, with metric scales on the front face featuring graduations of 0.5mm and 1.0mm, and rear face graduations of 1.0mm.

42 people are viewing this product right now

🔥 12 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Traditional Depth Gauge Imperial Moore & Wright

The Traditional Depth Gauge Imperial by Moore & Wright provides accurate depth measurements in imperial units. Designed for engineering and machining tasks, this reliable tool ensures precise readings, making it essential for maintaining high standards in depth measurement applications.

Features

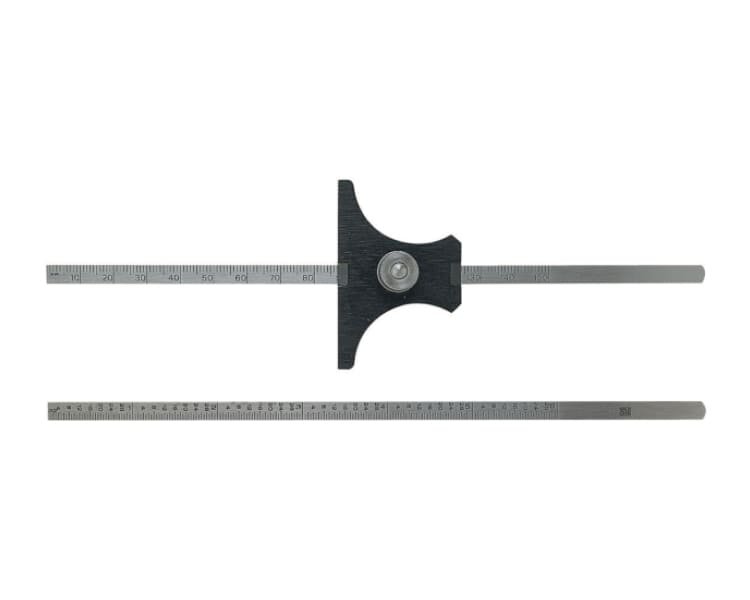

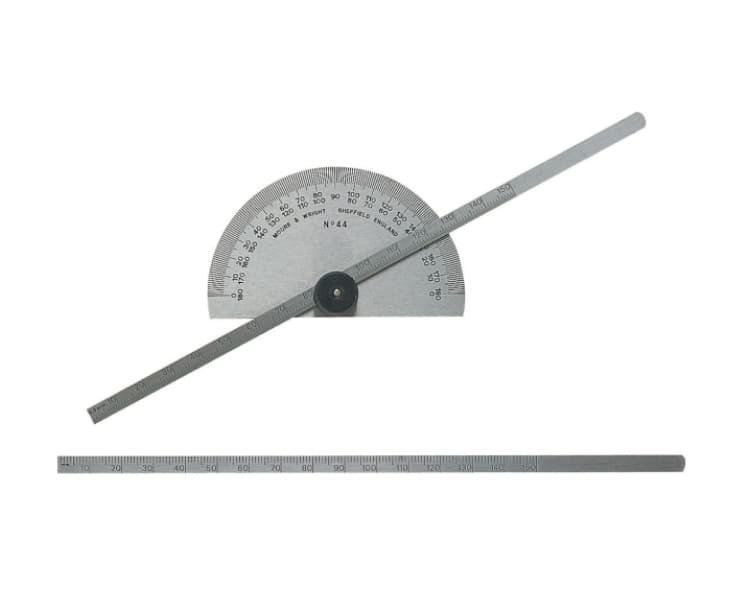

Available with either reversible base or protractor.

Full range rule adjustment.

Readings can be fixed by means of a locknut.

Metric scales front face graduations 0.5mm, 1.0mm.

Rules graduated on both sides.

Metric scales rear face graduations 1.0mm.

Metric / Imperial scales front face graduations 1/32nd.

Length of blade 195mm / 7.68".

Metric / Imperial scales rear face graduations 1.0mm.

Spesification

Product Code	Description	Width (mm)	Width (inch)	Size of Base	Thickness	Price
43	Reversible Base	5.5	0.22	18mm, 56mm, 0.71″, 2.21″	1.0mm / 0.04″	POA
44	Protractor	5.5	0.22	79mm / 3.11″	1.0mm / 0.04″	POA

Product Code	Description	Width (mm)	Width (inch)	Size of Base	Thickness	Price
43	Reversible Base	5.5	0.22	18mm, 56mm, 0.71″, 2.21″	1.0mm / 0.04″	POA
44	Protractor	5.5	0.22	79mm / 3.11″	1.0mm / 0.04″	POA
