BOWERS XT3 DIGITAL PISTOL GRIP BORE GAUGE WITH BLUETOOTH IMPERIAL 2

XT3 Digital Pistol Grip Bore Gauge With Bluetooth Imperial Bowers

The XT3 Digital Pistol Grip Bore Gauge by Bowers combines ergonomic design with advanced features like IP67 electronics and Bluetooth connectivity. It offers fast, accurate measurement across a wide range, with self-centering heads and tungsten carbide measuring faces for precision.

18 people are viewing this product right now

🔥 5 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

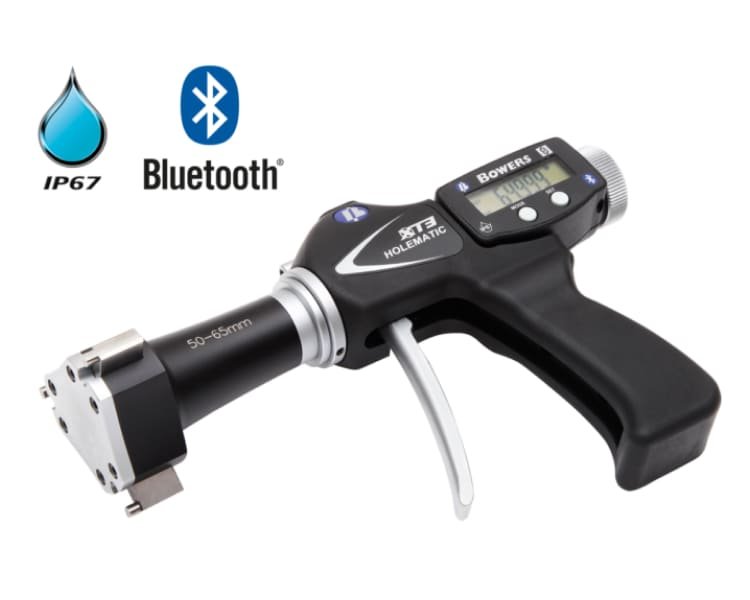

XT3 Digital Pistol Grip Bore Gauge With Bluetooth Imperial Bowers

Bowers’ XT3-BT Holematic offers an ergonomic design with a larger and clearer LCD display, along with IP67 electronics protection, proximity output with built-in Bluetooth; allowing bi-directional communication giving greater flexibility for data acquisition and storage.

Features

Heads with special anvils available to suit specific customer requirements.

Bore gauges manufactured according to DIN 863, part 4.

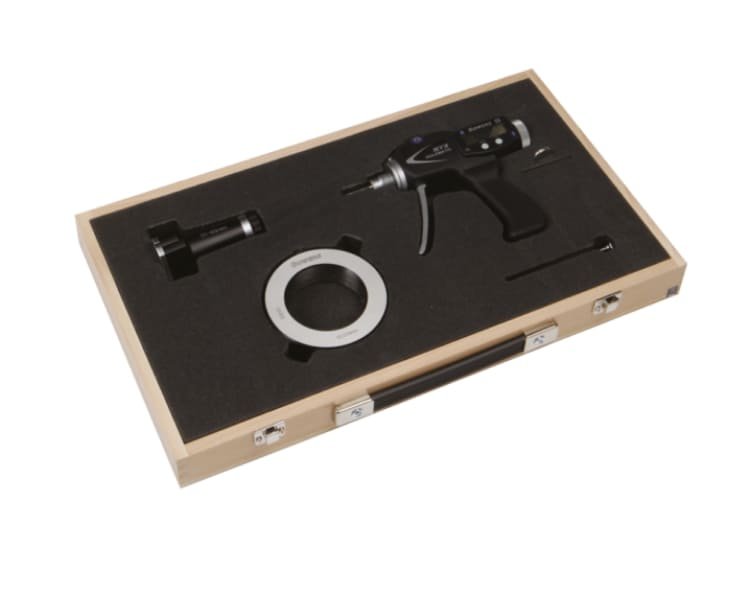

Supplied in fitted wooden case.

Serial number on all digital readouts and measuring heads.

UKAS certificates supplied as standard with all setting rings and gauges.

Setting rings included with individual instruments and sets.

Extensions available above 6mm for deep hole measurement.

Blind bore measurement from 2mm – 6mm and above 12.5mm.

Tungsten carbide measuring faces on all 3-point heads from 12.5mm.

Resolution 0.001mm/0.00005”.

2-6mm 2 point/ 6-300mm 3 point measurement.

Range 2–300mm (0.080” – 12”).

Fast, accurate measurement.

Self-centring heads.

Bi-directional communication.

Proximity output with built-in Bluetooth.

4 preset memories.

Simple 2-button operation.

IP67 Electronics.

Ergonomic design with larger and clearer LCD swivel display.

Spesification

Product Code	Range (inch)	Accuracy (inch)	Depth (inch)	Setting Ring (inch)	Price
XTH1i-BT	0.080-0.100	0.00015	0.35	0.1000	POA
XTH2i-BT	0.100-0.120	0.00015	0.35	0.1000	POA
XTH3i-BT	0.120-0.160	0.00015	0.47	0.1600	POA
XTH4i-BT	0.160-0.200	0.00015	0.70	0.1600	POA
XTH5i-BT	0.200-0.250	0.00015	0.70	0.2000	POA
XTH6i-BT	1/4-5/16	0.00015	2.28	0.3125	POA
XTH8i-BT	5/16-3/8	0.00015	2.28	0.3125	POA
XTH10i-BT	3/8-1/2	0.00015	2.28	0.500	POA
XTH12i-BT	1/2-5/8	0.00015	2.44	0.500	POA
XTH16i-BT	5/8-3/4	0.00015	2.44	0.750	POA
XTH20i-BT	3/4-1	0.00015	2.62	0.750	POA
XTH25i-BT	1-1 3/8	0.00015	2.62	1.375	POA
XTH35i-BT	1 3/8-2	0.00015	3.15	1.375	POA
XTH50i-BT	2-2 5/8	0.00020	3.15	2.625	POA
XTH65i-BT	2 5/8-3 1/4	0.00020	3.15	2.625	POA
XTH80i-BT	3 1/4-4	0.00020	3.35	3.250	POA
XTH100i-BT	4-5	0.00025	3.94	5.000	POA
XTH125i-BT	5-6	0.00025	3.94	5.000	POA
XTH150i-BT	6-7	0.00030	3.94	7.000	POA
XTH175i-BT	7-8	0.00030	3.94	7.000	POA
XTH200i-BT	8-9	0.00030	3.94	9.000	POA
XTH225i-BT	9-10	0.00030	4.05	9.000	POA
XTH250i-BT	10-11	0.00035	4.05	11.000	POA
XTH275i-BT	11-12	0.00035	4.05	11.000	POA
