XT3 Digital Pistol Grip Bore Gauge With Bluetooth Metric Bowers

The XT3 Digital Pistol Grip Bore Gauge by Bowers features an ergonomic design with a clear LCD swivel display, IP67 electronics, and built-in Bluetooth. It offers a range of 2-300mm, fast and accurate measurements, 4 preset memories, and comes with setting rings and UKAS certificates.

24 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

XT3 Digital Pistol Grip Bore Gauge With Bluetooth Metric Bowers

The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available on request.

Features

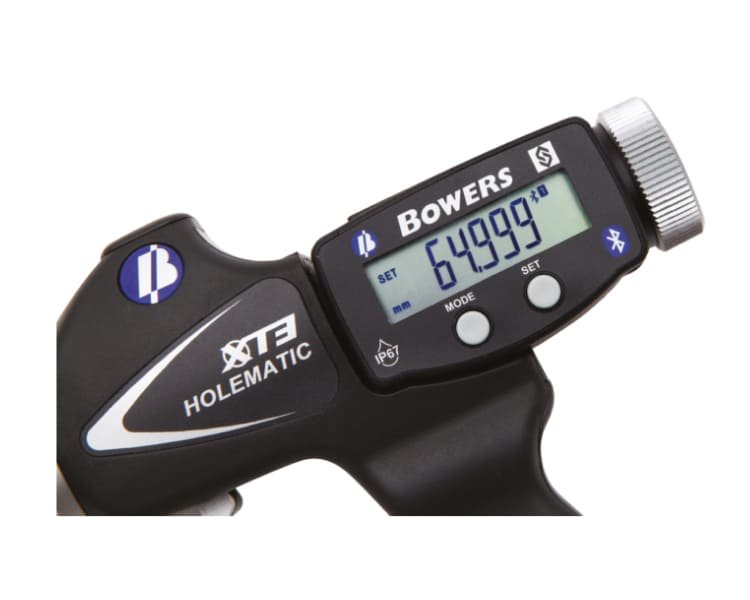

Ergonomic design with larger and clearer LCD swivel display.

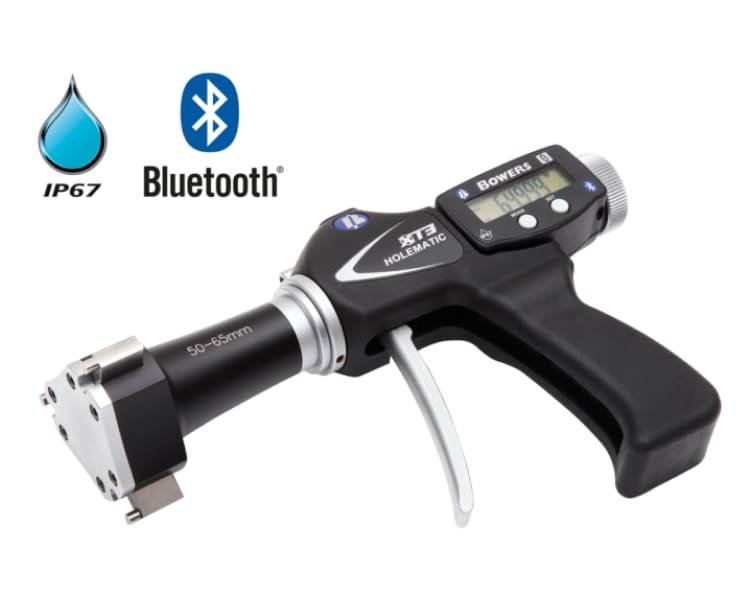

IP67 Electronics.

Simple 2-button operation.

4 preset memories.

Proximity output with built-in Bluetooth.

Bi-directional communication.

Self-centring heads.

Fast, accurate measurement.

Range 2–300mm (0.080” – 12”).

2-6mm 2 point/ 6-300mm 3 point measurement.

Resolution 0.001mm/0.00005”.

Tungsten carbide measuring faces on all 3-point heads from 12.5mm.

Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”).

Extensions available above 6mm for deep hole measurement

Setting rings included with individual instruments and sets.

UKAS certificates supplied as standard with all setting rings and gauges.

Serial number on all digital readouts and measuring heads.

Heads with special anvils available to suit specific customer requirements.

Bore gauges manufactured according to DIN 863, part 4.

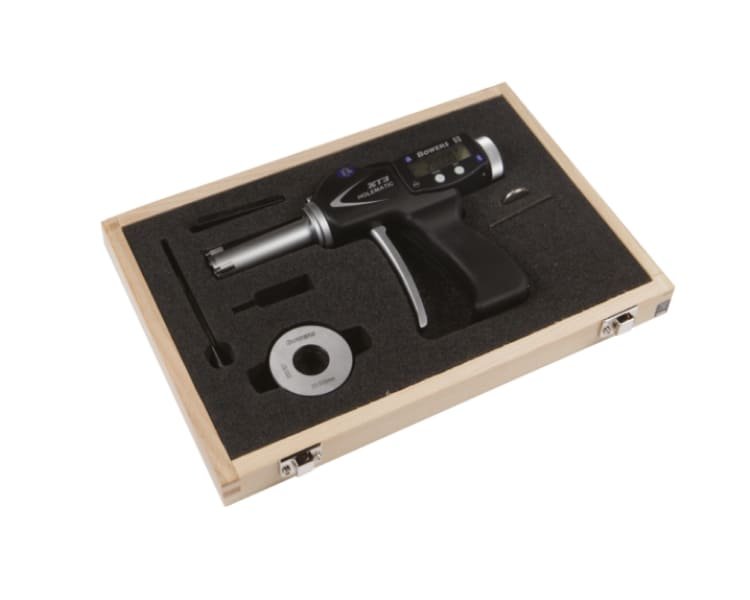

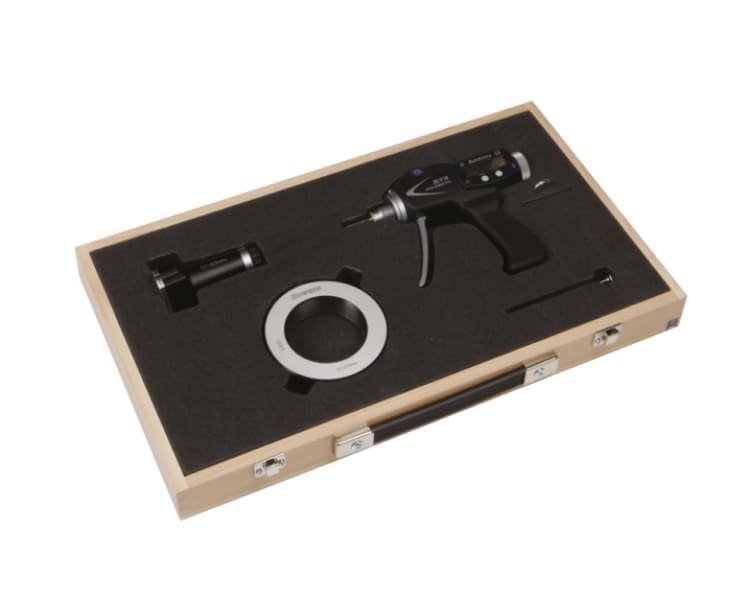

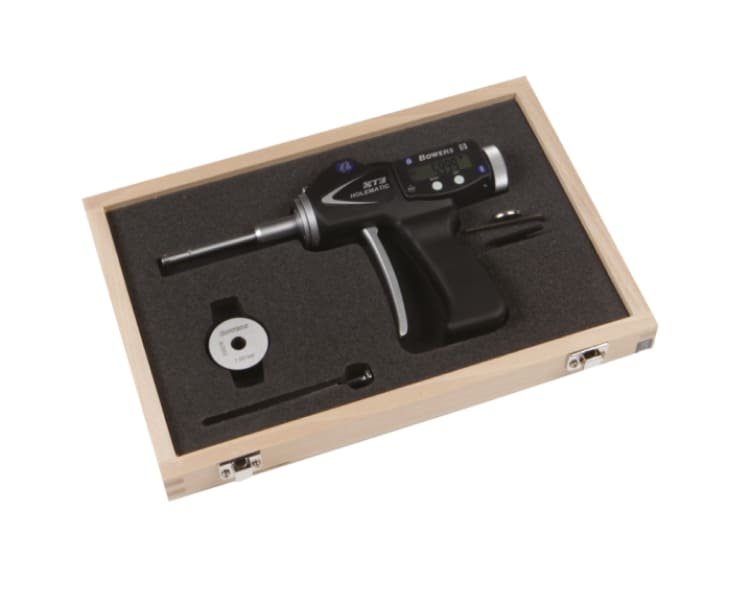

Supplied in fitted wooden case.

Specification

Prouct Code	Range (mm)	Accuracy (mm)	Depth (mm)	Setting Ring (mm)	Price
XTH1M-BT	2-2.5	0.004	9	2.50	POA
XTH2M-BT	2.5-3	0.004	9	2.50	POA
XTH3M-BT	3-4	0.004	12	4.00	POA
XTH4M-BT	4-5	0.004	18	4.00	POA
XTH5M-BT	5-6	0.004	18	5.00	POA
XTH6M-BT	6-8	0.004	58	8.00	POA
XTH8M-BT	8-10	0.004	58	8.00	POA
XTH10M-BT	10-12.5	0.004	58	12.50	POA
XTH12M-BT	12.5-16	0.004	62	12.50	POA
XTH16M-BT	16-20	0.004	62	20.00	POA
XTH20M-BT	20-25	0.004	66	20.00	POA
XTH25M-BT	25-35	0.004	66	35.00	POA
XTH35M-BT	35-50	0.004	80	35.00	POA
XTH50M-BT	50-65	0.005	80	65.00	POA
XTH65M-BT	65-80	0.005	80	65.00	POA
XTH80M-BT	80-100	0.005	100	80.00	POA
XTH100M-BT	100-125	0.006	115	125.00	POA
XTH125M-BT	125-150	0.006	115	125.00	POA
XTH150M-BT	150-175	0.007	115	175.00	POA
XTH175M-BT	175-200	0.007	115	175.00	POA
XTH200M-BT	200-225	0.008	118	225.00	POA
XTH225M-BT	225-250	0.008	118	225.00	POA
XTH250M-BT	250-275	0.009	118	275.00	POA
XTH275M-BT	275-300	0.009	118	275.00	POA
