Dial Bore Gauge Sets 316 Series Moore & Wright

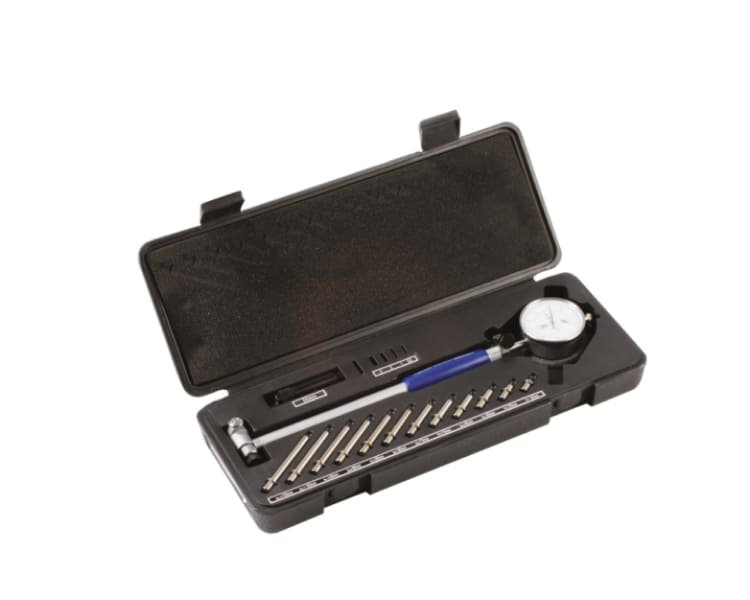

The Dial Bore Gauge Sets 316 Series by Moore & Wright. Each set includes carbide-tipped contact points and features a unique self-centering device. Supplied with a dial indicator boasting a resolution of 0.01mm, it’s packed with all necessary accessories for convenience.
46 people are viewing this product right now
🔥 11 items sold in last 3 hours
Dial Bore Gauge Sets 316 Series Moore & Wright

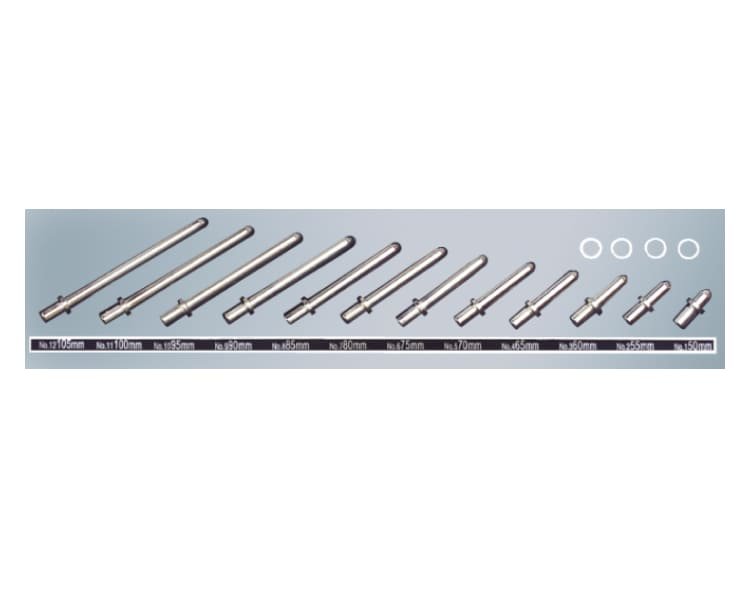

The Dial Bore Gauge Sets 316 Series by Moore & Wright are precision tools designed for accurately measuring bore diameters in engineering and machining applications. Featuring a dial indicator for precise readings, these sets come with a range of interchangeable anvils and extension rods to accommodate various bore sizes.
Features
Spesification
| Product Code | Range (mm) | Resolution (mm) | Resolution (inch) | Measuring Depth (mm) | Measuring Depth (inch) | Price |
| MW316-01 | 6-10 | 0.01 | 50 | 2 | POA | |
| MW316-02 | 10-18 | 0.01 | 100 | 4 | POA | |
| MW316-03 | 18-35 | 0.01 | 140 | 5.5 | POA | |
| MW316-04 | 35-50 | 0.01 | 150 | 6 | POA | |
| MW316-05 | 50-160 | 0.01 | 150 | 6 | POA | |
| MW316-06 | 160-250 | 0.01 | 205 | 8 | POA | |
| MW316-12D | 35-160 | 0.001 | 0.00005 | 150 | 6 | POA |
| Product Code | Range (mm) | Resolution (mm) | Resolution (inch) | Measuring Depth (mm) | Measuring Depth (inch) | Price |
| MW316-12D | 35-160 | 0.001 | 0.00005 | 150 | 6 | POA |
| MW316-06 | 160-250 | 0.01 | 205 | 8 | POA | |
| MW316-05 | 50-160 | 0.01 | 150 | 6 | POA | |
| MW316-04 | 35-50 | 0.01 | 150 | 6 | POA | |
| MW316-03 | 18-35 | 0.01 | 140 | 5.5 | POA | |
| MW316-02 | 10-18 | 0.01 | 100 | 4 | POA | |
| MW316-01 | 6-10 | 0.01 | 50 | 2 | POA |
