Optical Measurement Scan F60 Sylvac

Discover the Sylvac Optical Measurement Scan F60 a non-contact machine that ensures the integrity of cylindrical parts up to 64mm wide and 300mm long, providing rapid 2D scans and enhancing productivity without risking damage during quality control.

33 people are viewing this product right now

🔥 5 items sold in last 3 hours

Categories: Calipers, Hand Tools, Measurement

Estimated delivery:June 15, 2026 - June 17, 2026

Description

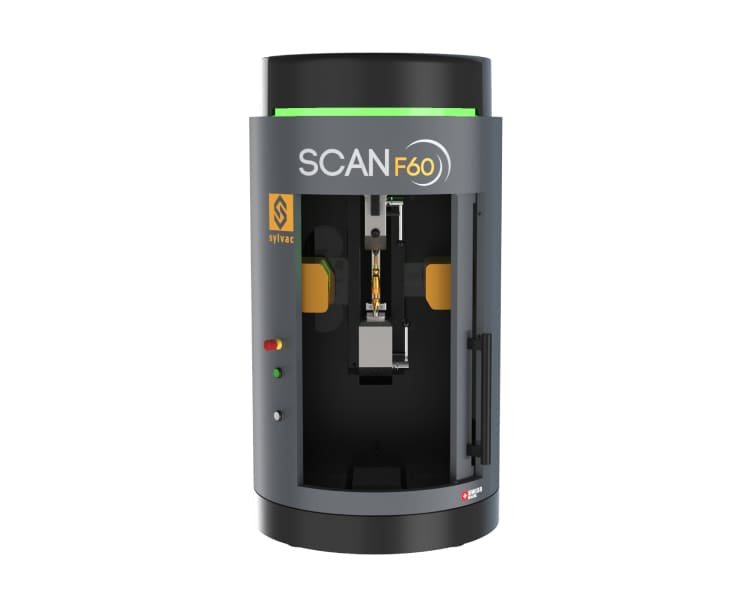

Optical Measurement Scan F60 Sylvac

Discover the Sylvac Optical Measurement Scan F60, a non-contact machine designed for cylindrical parts up to 64mm wide and 300mm long, it provides rapid 2D scans.

Features

Cost Savings at Every Turn

Our non-contact machine is designed for the measurement of cylindrical parts, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 64mm wide and 300mm long.

Intuitive Operation

Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

Precision and Efficiency

Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system.

Seamless Integration

Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

Overview

902-4060
EAN	7640125699449
	Diameter	Length
Measuring range (mm)	64	300
Resolution up to (mm)	0.0001
Max. error (µm)	1 + (D[mm]/100) µm ¹	3 + (L[mm]/200) µm ¹
Repeatability 2δ (µm)	0.5	1.8
Holding capacity diameter (mm)	120	315
Headstock	Rotary headstock for dynamic measurements
Tilting for thread measurement	–
Axial move speed (mm/s)	Up to 100mm/s
Max. weight of part (kg)	10
Machine’s weight (kg)	265
