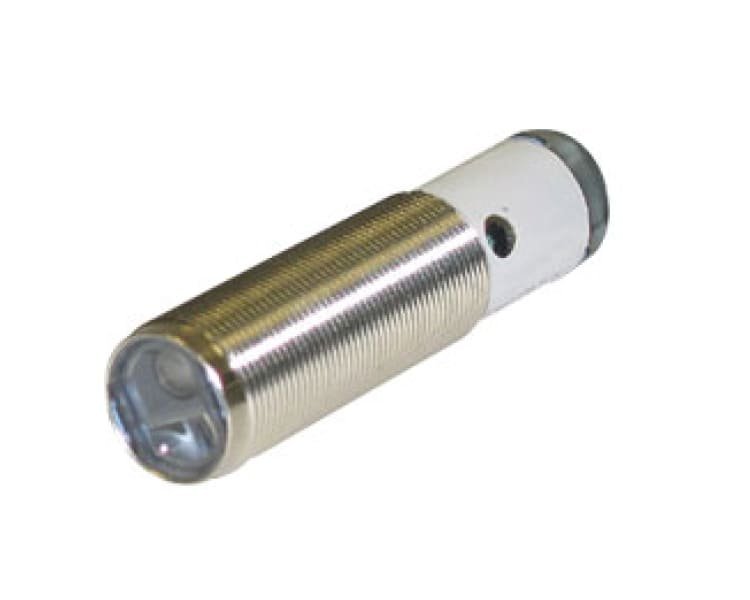

Photo Reflective Sensors LS-S50ML Shimpo
The Shimpo LS-S50ML Photo Reflective Sensor is a laser sensor offering NPN/PNP (NO, NC) outputs with a 1.5 kHz frequency. It features LED indication, a 6-foot quick disconnect connection, and boasts a NEMA 6P (IP67) rating for rugged durability.
9 people are viewing this product right now
🔥 12 items sold in last 3 hours
Photo Reflective Sensors LS-S50ML Shimpo
LS-S50ML is a laser sensor that can be taught to recognize difference in colors. It is a class 1 red laser with switching frequency of 1.5 KHZ. Contained in a metal housing with 6 ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers.
Features
Specifications
| Sensing Range | 25 – 400 mm |
| Sensing Head | Straight |
| Output | NPN normally open, NPN normally closed, PNP normally open, PNP normally closed |
| Load Current | 200 mA max. |
| Voltage Drop | < / = 2.5 VDC |
| Short Circuit and Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Supply Voltage | 10 – 30 VDC |
| Voltage Ripple | 10% |
| LED Indicator | Yes (2) |
| Current Consumption | < = 30 mA |
| Operating Mode | Light on / Dark on |
| Response Time | < = 1.0 ms |
| Switching Frequency | 500 Hz |
| Standard | EN 60947-5-2 |
| Protection (IEC) | IP67 (Nema 6P) |
| Light Spot Size | ~0.5 mm at range of 170 mm |
| Ambient Light Resistance | < = 30,000 Lux |
| Working Temperature | -13 to 158 °F |
| Storage Temperature | -22 to 158 °F |
| Light Source | Visible red laser 660 nm |
| Electrical Connection | Quick disconnect |
| Housing Material | Nickel-plated brass |
| Weight | 2.1 oz |
