Traditional Depth Gauge Micrometer Imperial Moore & Wright

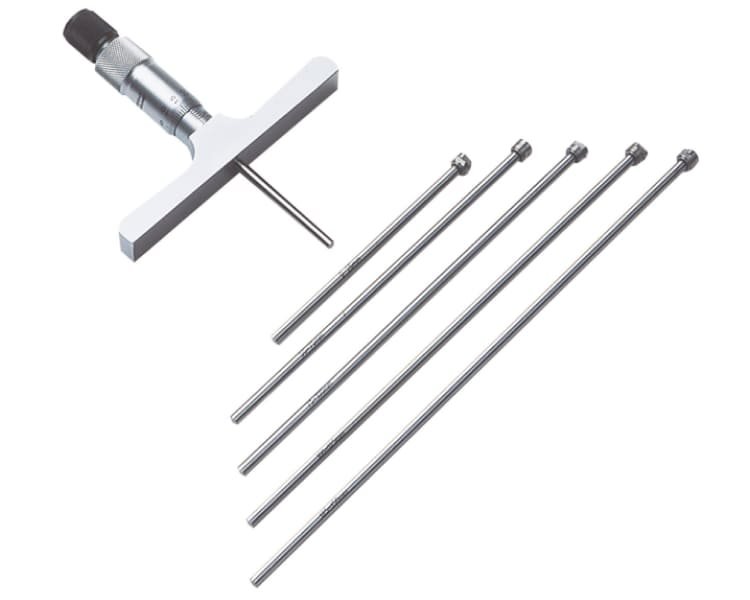

The Moore & Wright Traditional Depth Gauge Micrometer in Imperial units offers precision measurement. The 890 Series features a fixed depth rod, while the 891 Series offers interchangeable rods, and the 892 Series extends with a longer base. All include a ‘Speeder’ type ratchet and lock screw.
20 people are viewing this product right now
🔥 11 items sold in last 3 hours
Traditional Depth Gauge Micrometer Imperial Moore & Wright

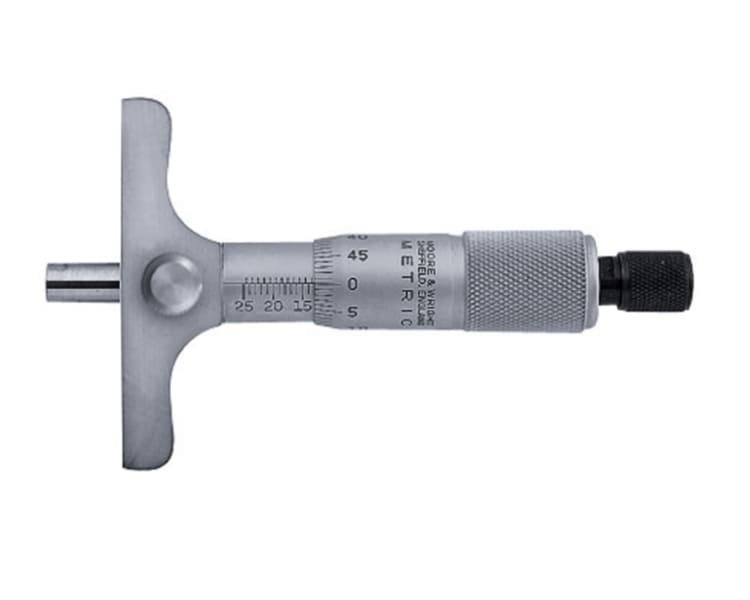

The Moore & Wright Traditional Imperial Depth Gauge Micrometer is a precision instrument for measuring the depth of holes, slots, and recesses. It features a robust design, a clear imperial scale, and a ratchet stop for consistent measurement force.
Features
Specification
| Product Code | Range (inch) | Accuracy (inch) | Price |
| 89212 | 0-12 | 0.00028″ | POA |
| 89112 | 0-12 | 0.00028″ | POA |
| 8926 | 0-6 | 0.00024″ | POA |
| 8923 | 0-3 | 0.00020″ | POA |
| 8916 | 0-6 | 0.00024″ | POA |
| 8913 | 0-3 | 0.00020″ | POA |
| 890 | 0-1 | 0.00016″ | POA |
| Product Code | Range (inch) | Accuracy (inch) | Price |
| 890 | 0-1 | 0.00016″ | POA |
| 8913 | 0-3 | 0.00020″ | POA |
| 8916 | 0-6 | 0.00024″ | POA |
| 8923 | 0-3 | 0.00020″ | POA |
| 8926 | 0-6 | 0.00024″ | POA |
| 89112 | 0-12 | 0.00028″ | POA |
| 89212 | 0-12 | 0.00028″ | POA |
