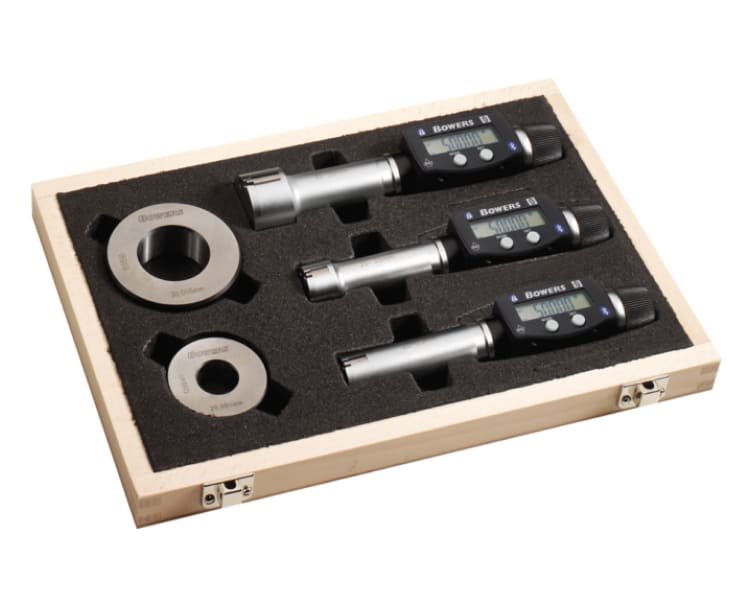

BOWERS XT3 DIGITAL BORE GAUGE SETS WITH BLUETOOTH (WITH DIGITAL READOUT FOR EACH HEAD)

XT3 Digital Bore Gauge Sets With Bluetooth Bowers

The XT3 Digital Bore Gauge Sets with Bluetooth by Bowers feature an ergonomic design, IP67 electronics, and a clear LCD display. They offer a 2-300mm range, 0.001mm resolution, 4 preset memories, bi-directional communication, and optional Bluetooth, with setting rings and UKAS certificates included.

35 people are viewing this product right now

🔥 3 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

XT3 Digital Bore Gauge Sets With Bluetooth Bowers

Bowers’ XT3 digital internal micrometers offer a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.

Features

Tungsten carbide measuring faces on all 3-point heads from 12.5mm.

Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”).

Extensions available above 6mm for deep hole measurement.

Ratchet stop to ensure consistent measurement.

Setting rings included with individual instruments and sets.

UKAS certificates supplied as standard with all setting rings.

UKAS certificates supplied as standard with all gauges.

Serial number on all digital readouts and measuring heads.

Heads with special anvils available to suit specific customer requirements.

Bore gauges manufactured according to DIN 863, part 4.

Supplied in fitted wooden case.

Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”).

Resolution 0.001mm/0.00005”.

2-6mm 2 point/ 6-300mm 3 point measurement.

Range 2-300mm (0.080”-12”).

RS-232C output.

Bi-directional communication.

Proximity output with optional built-in Bluetooth.

4 preset memories.

Simple 2-button operation.

New ergonomic design with larger and clearer LCD display.

IP67 Electronics.

Spesification

Product Code	Range (mm)	Notes	Price
SXTD3U-BT	6-10	with 2 display units	POA
SXTD4U-BT	10-20	with 3 display units	POA
SXTD5U-BT	20-50	with 3 display units	POA
SXTD6U-BT	50-100	with 3 display units	POA

Product Code	Range (mm)	Notes	Price
SXTD6U-BT	50-100	with 3 display units	POA
SXTD5U-BT	20-50	with 3 display units	POA
SXTD4U-BT	10-20	with 3 display units	POA
SXTD3U-BT	6-10	with 2 display units	POA
