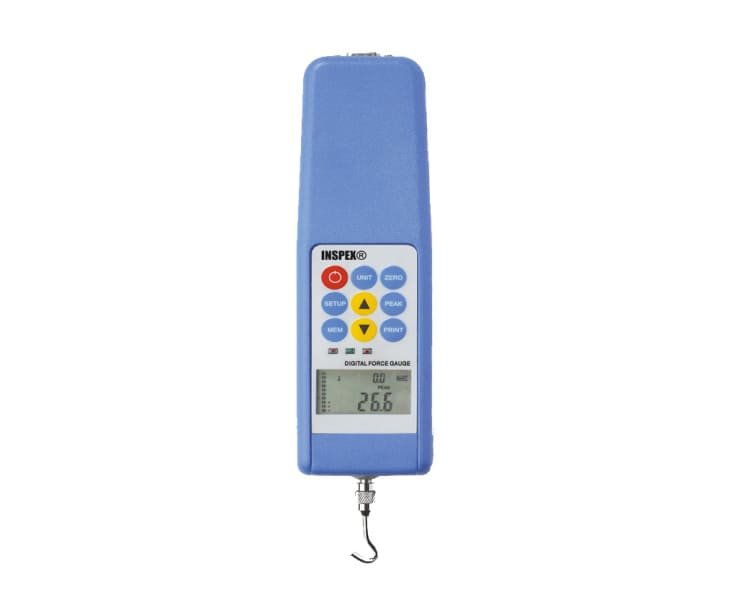

IPX-800 Digital Force Gauge Inspex
The Inspex IPX-800 Digital Force Gauge offers high accuracy and versatile features such as peak hold, tolerance setting, and average value calculation. With multiple measurement units and RS232 output, it’s essential for precise force measurement in various applications.
27 people are viewing this product right now
🔥 5 items sold in last 3 hours
IPX-800 Digital Force Gauge Inspex
Inspex IPX-800 has been devised by Bowers to meet the industrial demands of force gauges equipment that is versatile on testing multiple types of the workpiece and practical. Inspex IPX-800 is integrated with load cell and external load cell. In addition, you can also purchase the testing unit separately or with digital or manual stage.
Inspex IPX-800 Digital Force Gauge Features
Inspex IPX-800 Standard Delivery
Inspex IPX-800 Optional Accessorie
Inspex IPX-800 Digital Force Gauge Technical Spec
| Measurement unit | Lbf or kgf or Newtons |
| Accuracy | +/-0.5% of full scale |
| Resolution | Depending on range – see table below |
| Output | RS232 |
| Memory | 10 readings to calculate average |
| Power | Rechargeable Ni-Hi batteries |
| Battery life | 20 hours of use |
| Operating temperature | 20ºC +/- 10ºC |
| Dimensions | 225mm x 65mm x 35mm |
| Weight of main unit | 650g |
Inspex IPX-800 Digital Force Gauge Application Guide:
| Code No. | Description | Maximum Scale Newtons | Minimum Scale Newtons |
|---|---|---|---|

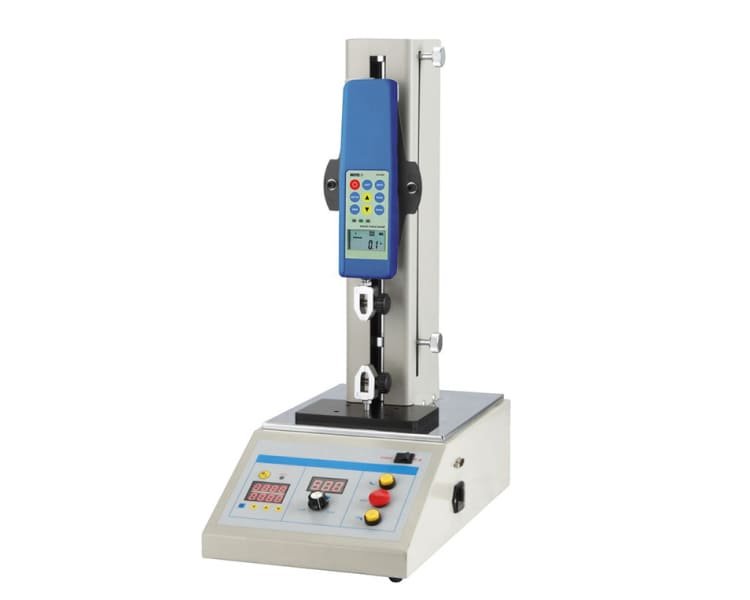

| 13-03652 | Stand (Motorised) | ||

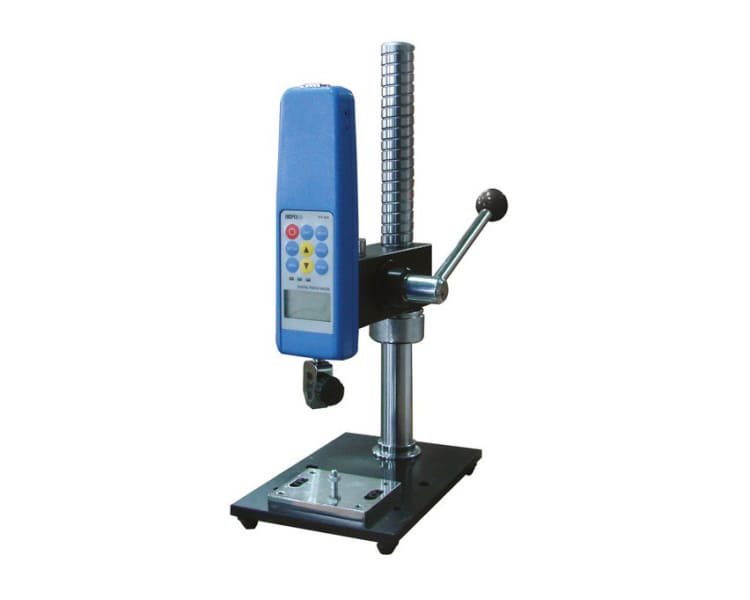

| 13-03650 | Stand (Mechanical) | ||
| 13-03618 | SH-500 | 500 | 0.1 |
| 13-03617 | SH-200 | 200 | 0.1 |
| 13-03616 | SH-100 | 100 | 0.05 |
| 13-03615 | SH-50 | 50 | 0.01 |
| 13-03614 | SH-20 | 20 | 0.01 |
| 13-03613 | SH-10 | 10 | 0.005 |
| 13-03612 | SH-5 | 5 | 0.001 |
| 13-03611 | SH-2 | 2 | 0.001 |
