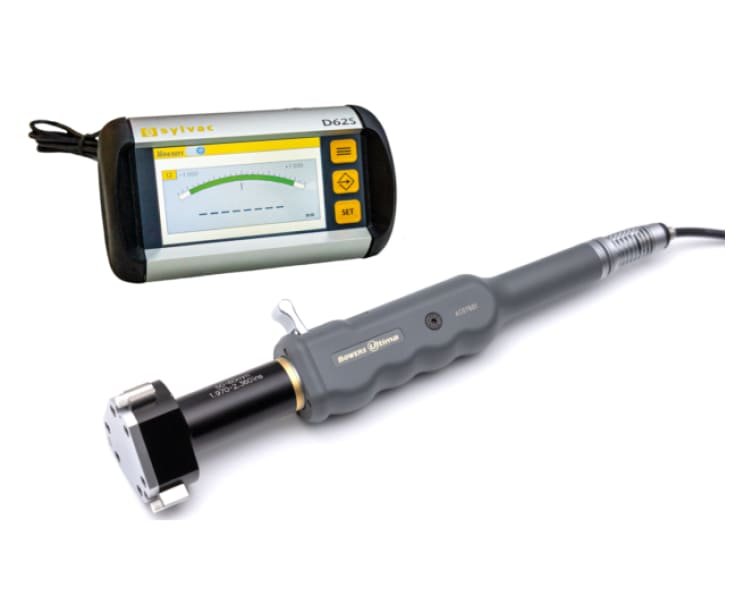

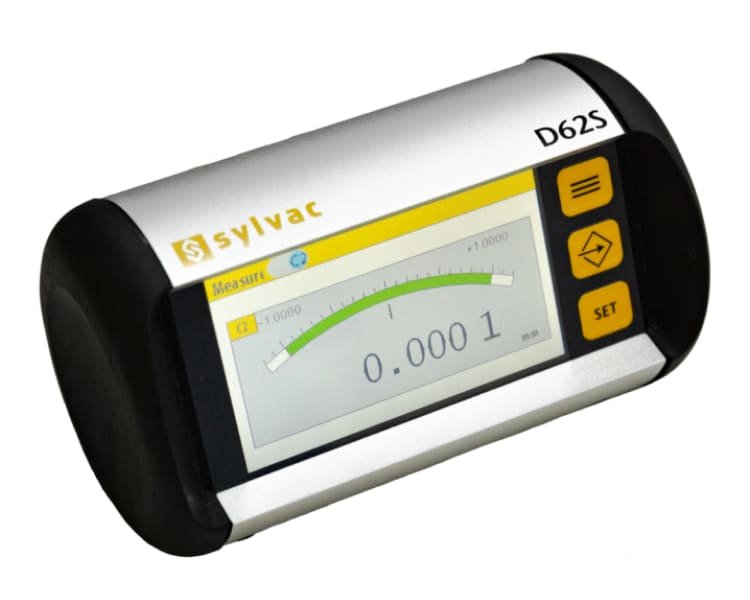

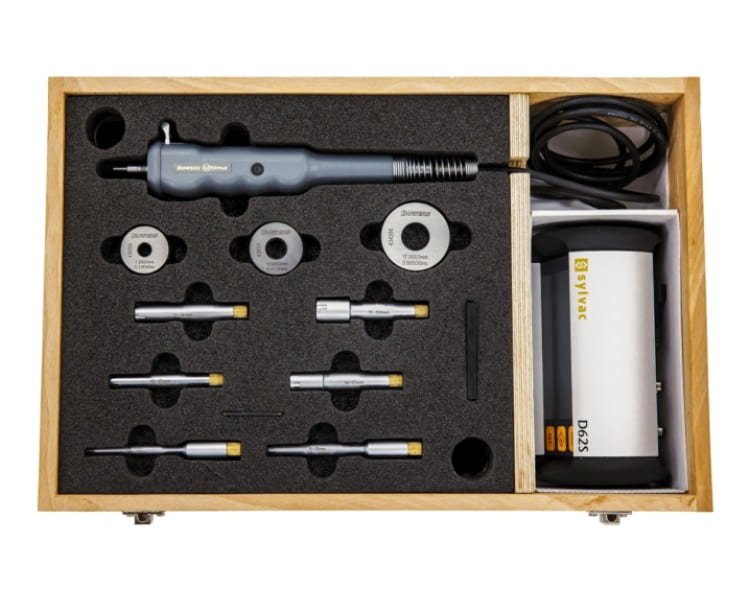

Ultima Bore Gauge Sets With SYLVAC D62S Display Bowers

The Ultima Bore Gauge Sets with SYLVAC D62S Display by Bowers offer a wide measuring range of 2-310mm with exceptional precision. Featuring UKAS-certified measuring heads and setting rings, they ensure accurate measurements with constant spring pressure and self-centering heads.

17 people are viewing this product right now

🔥 4 items sold in last 3 hours

Category: Measurement

Estimated delivery:June 16, 2026 - June 18, 2026

Description

Ultima Bore Gauge Sets With SYLVAC D62S Display Bowers

Featuring the NEW Bowers ‘FASTFIT’ measuring heads with extended measuring range (above 14mm), the Ultima boasts a simple lever operation and a constant measuring force, ensuring outstanding ease of use and repeatability under laboratory or shop-floor conditions.

Features

UKAS certificates standard for all measuring heads and setting rings.

Measuring range 2-310mm (0.080"-12.000").

Resolution: 0.0001mm (0.00001").

Constant spring pressure for improved repeatability.

Good positive feel as heads self-centre in the bore.

Bowers 'Fastfit' measuring heads for rapid changeover.

Ceramic anvils on heads above 12mm.

Blind-bore measurement standard above 12mm.

Possible to connect 2 probe holders to one single readout to measure different bore sizes at one measuring station.

The complete range of Bowers special heads is available for the Ultima.

Depth stops available for all heads.

Alternative displays available on request.

Available without digital readout unit (if not required).

Interchangeable probe option, to allow use of other manufacturers probes and displays.

Spesification

Product Code	Description	Range (mm)	Price
USET2D	With Sylvac D62S display	2-6	POA
USET3D	With Sylvac D62S display	6-10	POA
USET4D	With Sylvac D62S display	10-20	POA
USET7D	With Sylvac D62S display	6-20	POA
USET8D	With Sylvac D62S display	20-50	POA
USET9D	With Sylvac D62S display	50-100	POA
USET10D	With Sylvac D62S display	20-100	POA

Product Code	Description	Range (mm)	Price
USET10D	With Sylvac D62S display	20-100	POA
USET2D	With Sylvac D62S display	2-6	POA
USET3D	With Sylvac D62S display	6-10	POA
USET4D	With Sylvac D62S display	10-20	POA
USET7D	With Sylvac D62S display	6-20	POA
USET8D	With Sylvac D62S display	20-50	POA
USET9D	With Sylvac D62S display	50-100	POA
